| Prod Model: |
CY-RCTA03 |
| Frequency: |
25-20k Hz 45-600Hz |
| Insulation Class: |
Cat III |
| Customized: |
Customized |
| Current Range: |
60A /600A / 6000A |
| Rogowski Coil Current: |
Clamp-on |
| Application: |
Rectifier |
| Phase: |
Single |
| Coil: |
Amorphous Alloy Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Chuangyin |
Product Description
The 'RCTA03 lamp Clamp-on Flexible Rogowski coil current transformer" is designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables. It includes a flexible Rogowski coil probe and electronic modules. The signal from the coil probe can be amplified by the electronic modules through the integration processing. The output signal can be directly used in oscilloscope, digital multimeter or data logger recording instrument.
Features:
Flexible and light weights
Easy & quick installation in tight spaces
No dangerfrom open-circuited secondary
No core saturation or damage if overloaded
excellent linearity
Multi- size are available
Applications:
Power quality monitoring
Power meters
Smart logger
Energy sub-meters
Distributed measurement systems General data
.Operating temperature&humidity:0 to 50ºC(32-122ºF), <=80% RH(Nocondensate)
.Storage temperature&humidity:-10 to60ºC(14-140ºF), <=80% RH(Nocondensate)
.Operating environgment:Indoor ,altitude upto 2000 meters
.Standard safety: IEC61010-1:2001,300V CATIII

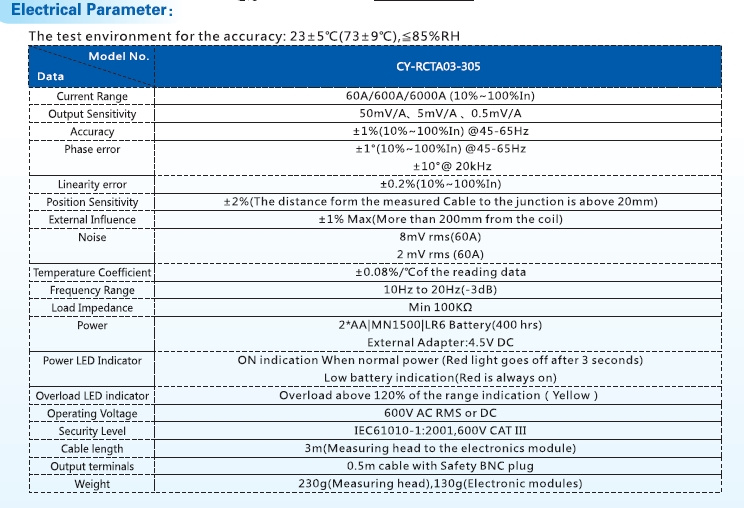

Eletrical Parameter:
The test environment for the accuracy:23±5 ºC), <=85%RH
Model Data | CY-RCTA03-305 |
Current Range | 60A/600A/6000A(10%-100%In) |
Output Sensitivity | 500m V/A,5m V/A, 0.5m V/A |
Accuracy | ±1%(10%-100% In)@45-65Hz |
Phase error | ±1%(10%-100% In)@45-65Hz ±10º@20kHz |
Linearity error | ±0.2%(10%-100% In) |
Position Sensitivity | ±0.2%(The distance from the measured cable to junction is above 20mm |
External Influence | ±1%Max (more than 200mm from the coil) |
Noise | 8m V rms (60A) |
Temperature Coefficient | 2m V rms(60A) |
Frequency Range | ±0.08% Cof the reading data |
Power | Min 100KΩ |
Power | 2*AA/MN1500/LR6 Battery(400hrs) Eternal Adapter:4.5V DC |
Power LED indicator | ON indication When normal power (Red light goes off after 3 seconds ) low battery indication(Red is always on) |
Overload LED indicator | Overload above 120% of the range indication(yellow) |
Operating Voltage | 600V AC RMS or DC |
Security Level | IEC 61010-1:2001,600V CAT III) |
Cable length | 3m(Measuring head to the electronics module ) |
Output terminals | 0.5m cable with safety BNC plug |
Weight | 230g(measuring head),130g(Electronic modules) |
Note:
The above parameter is only for reference as typical data, customer-made is subject to customers' request.
