Flexible Rogowski Coil Current Transformer for Monitoring 333mv with Integrator
| Price: |
US $ 79.9-85/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
CY-RCTA03 |
| Frequency: |
25-20k Hz |
| Insulation Class: |
Cat III |
| Customized: |
Customized |
| Accuracy: |
<1%(45-65Hz) |
| Current Range: |
10A ~10ka / 10A ~6000A |
| Clamp-on: |
Rogowski |
| Application: |
Rectifier |
| Phase: |
Single |
| Coil: |
Amorphous Alloy Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Chuangyin |
Product Description
Series Clamp-on Flexible Rogowski Coil Current Transformers CY-RCTA03

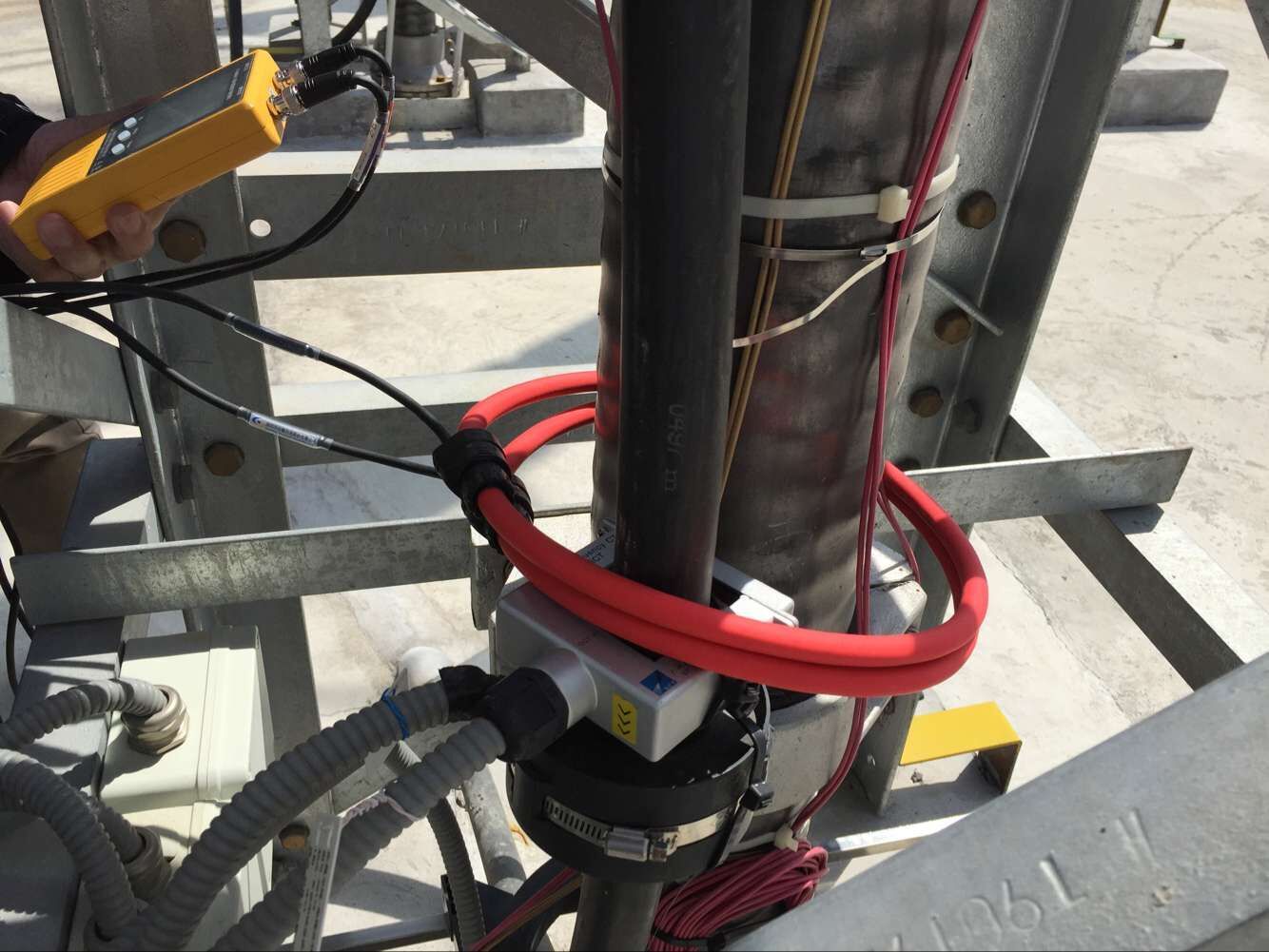

The "RCTA03 lamp Clamp-on Flexible Rogowski coil current transformer "is dsigned for easy installed in tight spaces and without the need for dismantling the primary busbar or cables .It includes a flexible Rogowski coil probe and electronic modules. The signal from the coil probe can be amplified by the electronic codules through the integration processing . The output signal can be directly used in oscilloscope,digital multimeter or data logger recording instrument Features:.Flexible and light weights,exquisite appearance.Easy &quick installation in tight spaces.Excellent linearity .Maximum measuring current up to 130A Applications:.Power quality monitoring.CT secondary current detection.Smart logger.Distributed measurement systems Model: General data:.Operating temperature&humidity:0 to 50ºC(32-122ºF), <=80% RH(No condensate).Storage temperature&humidity:-10 to60ºC(14-140ºF), <=80% RH(No condensate).Operating environgment:Indoor ,altitude up to 2000 meters.Standard safety: IEC61010-1:2001,300V CAT Dimension: | Dimensions(mm) | CY-RCTA03-305 |
| WindowA | 305 |
| Coil OD B | 333 |
| Coil Length | 1000 |
| No | Module Name |
| 1 | Flexible coil body |
| 2 | Coil Interface lock |
| 3 | Electronic modules plastic shell |
| 4 | Power Indicator(Red) |
| 5 | Overload indicator(Yellow) |
| 6 | Shift switch |
| 7 | Public BNC connector |
| 8 | Company logo |
| 9 | Product Model Code |
Eletrical Parameter:The test environment for the accuracy:23±5 ºC), <=85%RHModel
Data | CY-RCTA03-305 |
| Current Range | 60A/600A/6000A(10%-100%In) |
| Output Sensitivity | 500m V/A,5m V/A, 0.5m V/A |
| Accuracy | ±1%(10%-100% In)@45-65Hz |
| Phase error | ±1%(10%-100% In)@45-65Hz ±10º@20kHz |
| Linearity error | ±0.2%(10%-100% In) |
| Position Sensitivity | ±0.2%(The distance from the measured cable to junction is above 20mm |
| External Influence | ±1%Max (more than 200mm from the coil) |
| Noise | 8m V rms (60A) |
| Temperature Coefficient | 2m V rms(60A) |
| Frequency Range | ±0.08% Cof the reading data |
| Power | Min 100KΩ |
| Power | 2*AA/MN1500/LR6 Battery(400hrs)
Eternal Adapter:4.5V DC |
| Power LED indicator | ON indication When normal power (Red light goes off after 3 seconds ) low battery indication(Red is always on) |
| Overload LED indicator | Overload above 120% of the range indication(yellow)
|
| Operating Voltage | 600V AC RMS or DC |
| Security Level | IEC 61010-1:2001,600V CAT ) |
| Cable length | 3m(Measuring head to the electronics module ) |
| Output terminals | 0.5m cable with safety BNC plug |
| Weight | 230g(measuring head),130g(Electronic modules) |
Usage instruction: Note:Please browse our website and download product catalogue for detailed information. SHENZHEN CHUANGYIN TECHNOLOGY CO., LTD. ( CY Group )Certification: KEMA, ISO9001, UL, SGS, CE.( Your reliable partner for CT,PT (up to 72.5KV) ,Cable accessories, Split core CT, Rogowski Coil , Latching Relay, Flx-core CT )Address: 1st Floor, Building B, Jiada R&D Building, No.5 Songpingshan Rd., Shenzhen High-Tech Zones, Nanshan, Shenzhen, China, Post code: 518057Tel: +86 0755-86000716/ 86007806Fax: +86 0755-86000614Web: www.chuangy.comRogowski coil Arvin Q.Business Development ExecutiveMob: +86 13925284622
