Flexible Rogowski Coil Current Transformers

Name: Flexible Rogowski Coil Current Transformers
Brand: all-electronics-online.com
SKU: 715395302
Availability: InStock
Rating: 4.6 (49 reviews)

Price:	US $ 9-10/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

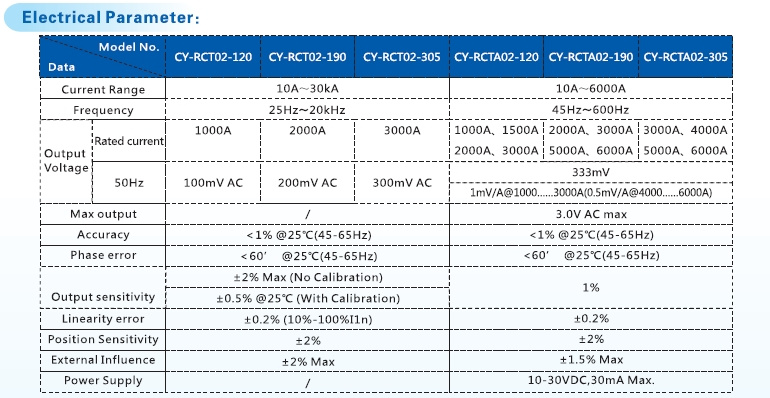

Prod Model:	CY-RCT01-55
Frequency:	25-20k Hz 45-600Hz
Insulation Class:	Cat III
Customized:	Customized
Accuracy:	<1%(45-65Hz)
Current Range:	10A ~30ka / 10A ~6000A
Power Supply:	10-30VDC, 30mA Max.
Coil Structure:	Toroidal
Color:	Customized
Max Output:	3.0V AC Max
Standards Safety:	ISO9001: 2001, 600V Cat III
Application:	Rectifier
Phase:	Single
Coil:	Amorphous Alloy Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Chuangyin

Product Description

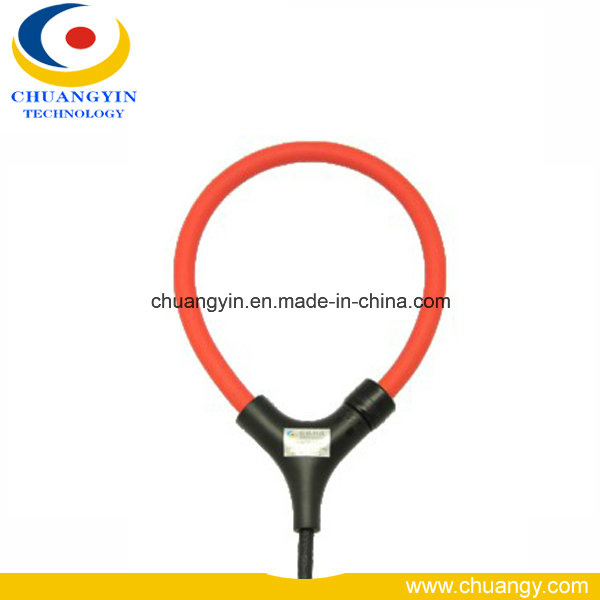

The 'RCT02 Clamp-on Flexible Rogowski coil current transformer' are designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables.

Features:

Flexible and light weights_

Easy & quick installation in tight spaces

No danger from open-circuited secondary

No core saturation or damage if overloaded

excellent linearity

Multi- size are available

Applications:

Power quality monitoring

Power meters

Smart logger

Energy sub-meters

Distributed measurement systems

Note:
Please browse our website and download product catalogue for detailed information.
The above parameter is only for reference as typical data, customer-made is subject to customers' request.
