Flexible Rogowski Coil Instrumental Transformers

Name: Flexible Rogowski Coil Instrumental Transformers
Brand: all-electronics-online.com
SKU: 797495745
Availability: InStock
Rating: 4.6 (66 reviews)

Price:	US $ 86-88/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-RCT02
Frequency:	25-20k Hz 45-600Hz
Insulation Class:	Cat III
Customized:	Customized
Current Range:	60A /600A / 6000A
Rogowski Coil Current:	Clamp-on
Application:	Rectifier
Phase:	Single
Coil:	Amorphous Alloy Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Chuangyin

Product Description

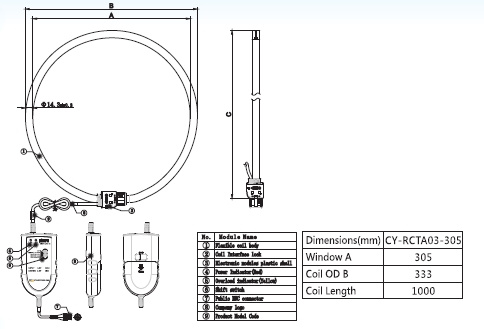

The 'RCTA03 lamp Clamp-on Flexible Rogowski coil current transformer" is designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables. It includes a flexible Rogowski coil probe and electronic modules. The signal from the coil probe can be amplified by the electronic modules through the integration processing. The output signal can be directly used in oscilloscope, digital multimeter or data logger recording instrument.

Features:

Flexible and light weights

Easy & quick installation in tight spaces

No dangerfrom open-circuited secondary

No core saturation or damage if overloaded

excellent linearity

Multi- size are available

Applications:

Power quality monitoring

Power meters

Smart logger

Energy sub-meters

Distributed measurement systems

Flexible Rogowski Coil Current Transformer

Note:
Please browse our website and download product catalogue for detailed information.

SHENZHEN CHUANGYIN TECHNOLOGY CO., LTD.
( CY Group )
Certification: KEMA, ISO9001, UL, SGS, CE.
( Your reliable partner for CT,PT (up to 72.5KV) ,Cable accessories, Split core CT, Rogowski Coil , Latching Relay, Flx-core CT )

Address: 1st Floor, Building B, Jiada R&D Building, No.5 Songpingshan Rd.,  Shenzhen High-Tech Zones, Nanshan, Shenzhen, China,
Post code:   518057
Tel:    +86 0755-86000716/ 86007806
Fax:    +86 0755-86000614
Web:  www.chuangy.com

Arvin Q.
Business Development Executive
Mob:  +86 13925284622

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.
