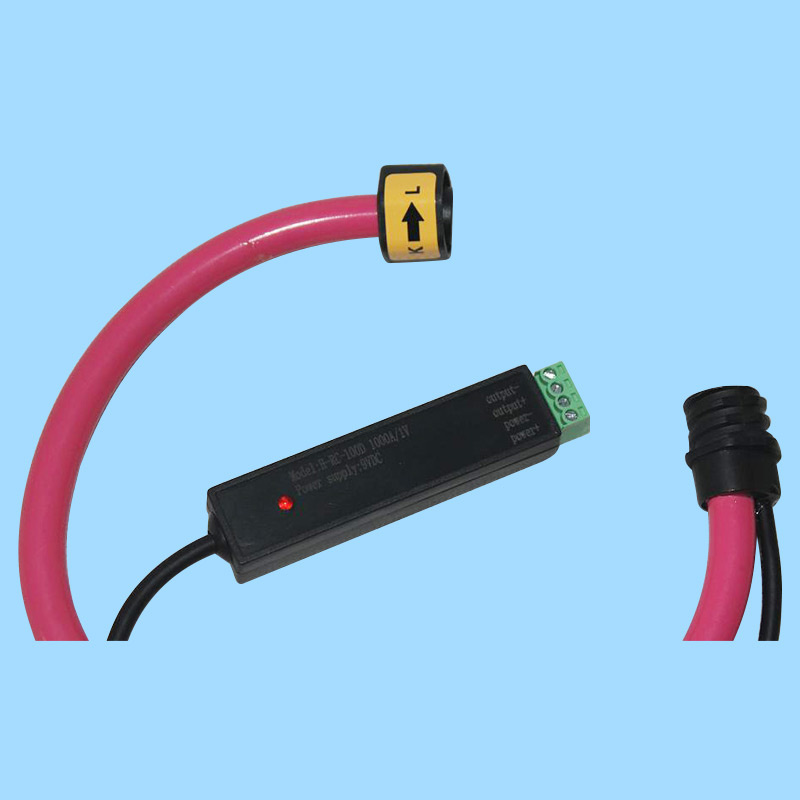

Flexible Rogowski Coil with 1000A/1V Intergrator

Name: Flexible Rogowski Coil with 1000A/1V Intergrator
Brand: all-electronics-online.com
SKU: 800123595
Availability: InStock
Rating: 4.7 (149 reviews)

Price:	US $ 42.5-45.5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	H-FC-100D
Model:	H-FC-100d
Current Range:	1000A/1V
Rate Current:	1000A
Coil Length:	100mm
Cable Lengtgh:	2meter
Color:	Red
Material:	Metal
Frequency Range:	0 -16MHz
Accuracy:	±0.5% of Reading
Manufacturer:	Jiaxing Haihan Electron Co.,Ltd
Application:	Power Meter
Phase:	Single
Coil:	Amorphous Alloy Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer
Brand:	E-Power

Product Description

1,Specification

Current range	0-1000A AC
Output sugnal(di/dt)	0-1V
Accuracy	0.5% of reading
Linearity(10%-100% range)	±0.2% of reading
Bandwidth(-3dB)	2Hz to 100KHz
Internal resistance	80±10% Ω/400mm
Output sensitivity tolerance	±2%
Max response time(10%-90%)	1us
Phase error	≤1%
Operation temperature	-20 to +70 degree celsius

2,Position sensitivity

Measured bus	±1% maximum on closing unit
Ext field influence	±0.5% maximum
Temperature sensitivity(Max)	±0.07% per ºC

3,Material list

Coil&Cable	Thermoplastic rubber Flame retardant UL 94 V-0 Rated
Couplings	PA6 UL 84 V-O Rated
Color	Black,Yellow,Red,Green and Blue
Shieled	100% coil,100%output cable
