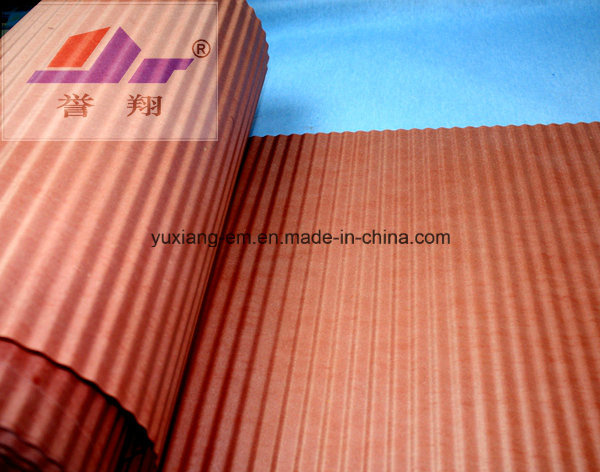

Flexible Wave DMD Electrical Insulation Paper (F Class)

Name: Flexible Wave DMD Electrical Insulation Paper (F Class)
Brand: all-electronics-online.com
SKU: 798075935
Availability: InStock
Rating: 4.3 (51 reviews)

Price:	US $ 1.55-5kg
Min Order:	100kg
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DMD 70
Application:	Transformer\Voltage Rotating Machine
Type:	Insulation Sheet
Chemistry:	Inorganic Insulation
Material:	Paper
Thermal Rating:	F 155
Brand:	Yuxiang\Yohann

Product Description

Application
Yuxiang® DMD70 is suitable for insulation in electrical motors and transformers with a maximum operating temperature of 155ºC.
It is used in low or medium voltage rotating machines as ground and slot insulation. It can be used as well as intermediate layer in transformers.
Typical properties

Product	Construction	Thickness	Weight	Tensile Strength			BDV		Thermal Aging Test
Product	Construction	Thickness	Weight		MD	TD	BDV		Thermal Aging Test
		mm	g/m2		N/cm		KV
DMD70	2/1/2	0.13	125.0±10%	≥	90.0	70.0	≥	7.0	180ºC 10min
DMD70	2/2/2	0.15	160.0±10%	≥	120.0	80.0	≥	7.0
DMD70	2/3/2	0.18	198.0±10%	≥	120.0	105.0	≥	8.0
DMD70	2/4/2	0.20	230.0±10%	≥	130.0	125.0	≥	9.0
DMD70	2/5/2	0.23	265.0±10%	≥	180.0	155.0	≥	10.0
DMD70	2/6/2	0.25	290.0±10%	≥	200.0	180.0	≥	14.0
DMD70	2/7.5/2	0.30	350.0±10%	≥	230.0	200.0	≥	13.0
DMD70	2/10/2	0.35	440.0±10%	≥	300.0	270.0	≥	18.0
DMD70	2/12/2	0.40	500.0±10%	≥	380.0	350.0	≥	20.0
DMD70	2/14/2	0.45	560.0±10%	≥	400.0	350.0	≥	22.0
DMDMD70	2/14/2/14/2	0.90	1125±10%	≥	600.0	550.0	≥	29.0
Test method:GB/T 5593.3-2008 or IEC 60626-2:1995

Shelf life
The shelf life of Yuxiang® DMD70 is in excess of one year when stored at room temperature.

Shanghai Yuxiang electrical material Co., Ltd established in Pudong district of Shanghai in 2004.

The headquarters and manufacturing base has moved to Shanghai Nanxiang in 2008. The area of factory is about 5000 Square meters. There are lamination, slitting, coating and stamping lines in our factory.

Yuxiang is one of the most famous electrical flexible lamination coating production supplier in China, and has a very good reputation in the industry.

Yuxiang adhering to the business philosophy of "Beyond Customer's Expectations", providing all kinds of insulation products for the motors, generators, transformers, electronic products, solar energy backs and new energy vehicles, and also providing professional technology consulting, inspection and service for the insulation products.

We established Shanghai Xiyaxin Electronic Materials Co., Ltd and Shanghai Honggong New Materials Co., Ltd in order to serve our customers. These two company is specialized in all kinds of electronic products, electronic materials, insulation materials, chemical products sales and import and export business.

Besides, Honggong is primary dealer of DuPont™ Nomex® Insulation paper in China, provides Nomex® Paper product and service.
