| Prod Model: |
YH |
| Product Name: |

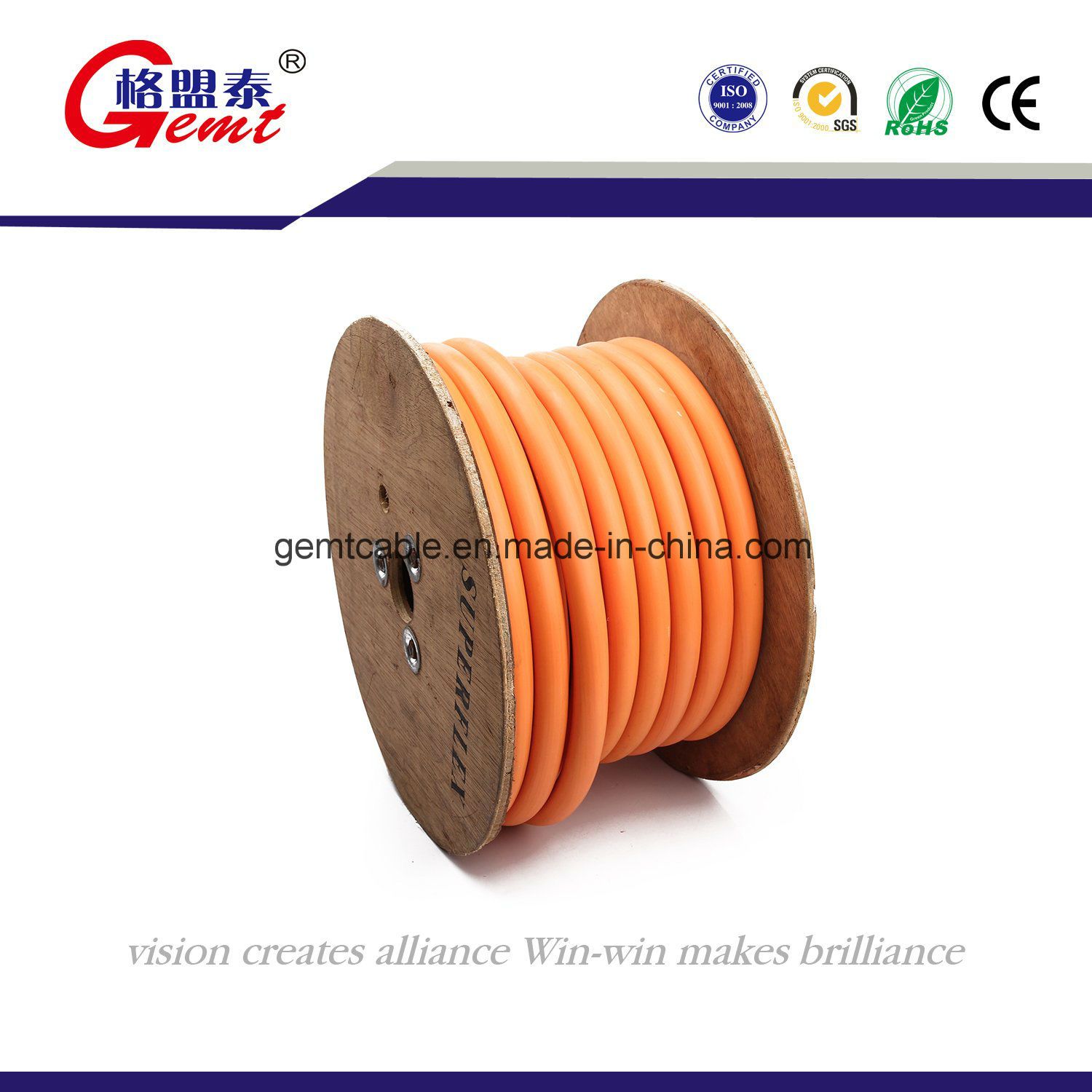

Flexible Welding Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Construction |
| Conductor Material: |
Copper |
| Certification: |
VDE |
| Sheath Material: |
PVC or Rubber |
| Insulation Material: |
PVC or Rubber |
| Range Of Application: |
Construction |
| Brand: |
Gemt |
Product Description
Product Description PVC insulated Rubber Insulated Welding Cable electric welding cable copper welding cable
Specifications 1.Rubber or PVC Welding Cable
2.10-190mm2
3.Copper or CCA Welding Cable
4.25 years OEM Welding cable
5.ISO,CE,ROHS,REACH
1.Standard
the welding cable can be produced according to the standard 245 IEC 81,ICEA S-75-381
2.Specific Property for Using
(1).The cable can be used in the connectors of electric weld and pliers of the electrical welding whose toward earth voltage of the low voltage is not more than AC 200 V and the pulsant DC peak value is 400V.
(2).The long-time permissible working temperature of cable is not more than 65.
3.Name and IEC Standard
(1).Rubber Sheathed Welding Cable 245 IEC 81
(2).Rubber Sheathed Welding Cable 245 IEC 82,which is made of chloroperene or the composite stretchy materials.
4. Conductor Materials: Copper
5. Jacket: Rubber or PVC
6. Applications: For Welding Machines and so on
7.The general data of the cable 245 IEC 81 and 245 IEC 82
No minal Section
Area(mm2) | Copper Wire
No./Dia.(mm) | Insulated Sheath
Thickness(mm) | Average of the Max
Outer Dia(mm) | Conductor Resistance
at 20(≤Ω/km) | Weight
(kg/km) |
| 10 | 322/0.20 | 1.80 | 9.7 | 1.91 | 151.6 |
| 16 | 511/0.20 | 2.16 | 11.5 | 1.61 | 224.0 |
| 25 | 798/0.20 | 2.14 | 13.0 | 0.758 | 326.0 |
| 35 | 1121/0.20 | 2.07 | 14.5 | 0.536 | 430.0 |
| 50 | 1596/0.20 | 2.22 | 17.0 | 0.379 | 600.0 |
| 70 | 2204/0.20 | 2.29 | 19.5 | 0.268 | 818.1 |
| 95 | 3002/0.20 | 2.50 | 22.0 | 0.198 | 1082.7 |

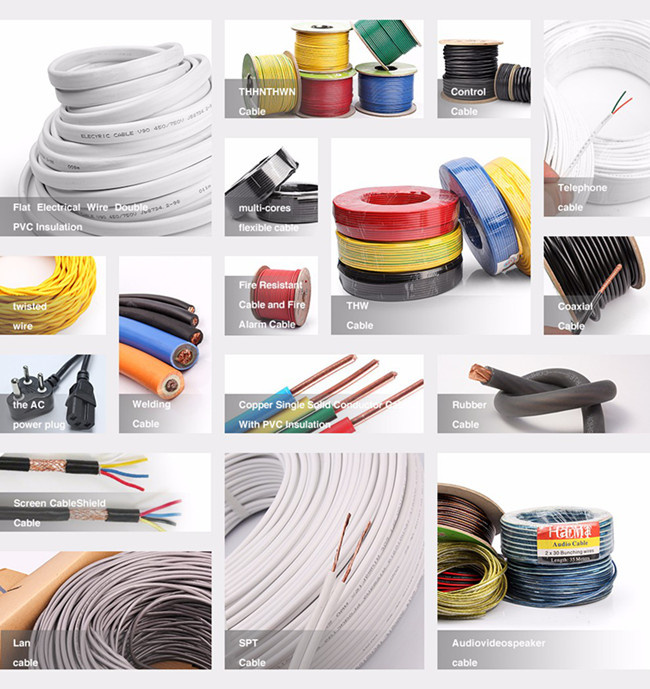

Our products
Company Information Introduction of GEMT Cable Co., Ltd.
1. WHO ARE WE?
Gemt Cable Co., Ltd is a professional manufacturer and supplier of Lan cable, Flat cable, Welding cable, Speaker cable, Audio cable, Video cable, Coaxial cable, Power cable, Telephone cable, Home electrical cable, Power cords, etc.
2. WHEN WERE WE BORN?
Gemt Cable Co., Ltd was established in 1991. For now we have over 25 years in manufacturing cables and wires. We become more mature, more responsible to our customers!
3. WHERE ARE WE?
HQ:Shenzhen Gemt Industrial Co., Ltd.
Add: International Technology Building 3305, Shennan Road, Futian District, Shenzhen City, Guangdong Province, China
Factory: Dongguan Gemt Cable Co., Ltd.
Add: 3rd Floor, Shangqiaosonglong Avenue NO.66, Dongcheng Street, Dongguan City, Guangdong Province, China
Welcome to visit us anytime!
4. WHAT WE HAVE?
We have advanced production lines and inspecting equipments. Our products is with CE,CB,RoHS certificates, by strictly confirming to GB,IEC and ISO9001:2000 standards.
5. WHY CHOOSE US(GEMT)?
G--Guaranteed quality
E--Effective service
M--Mutual benefit
T--Top technique
GEMT Cable, Friend Reliable

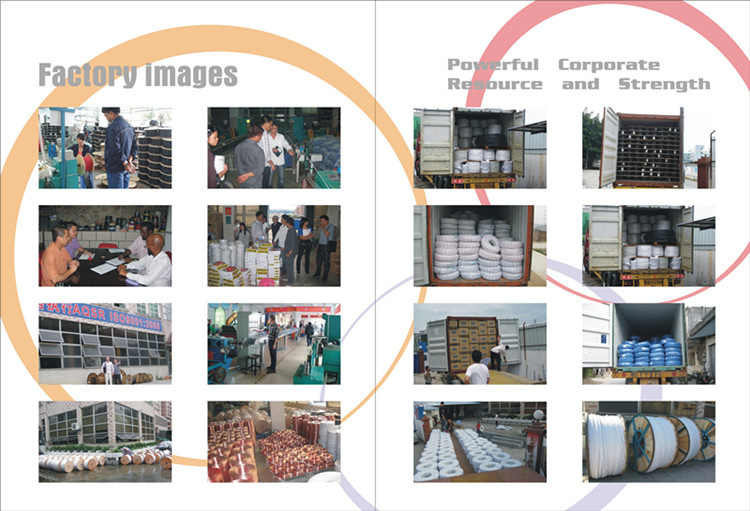

Factory
Trade Shows

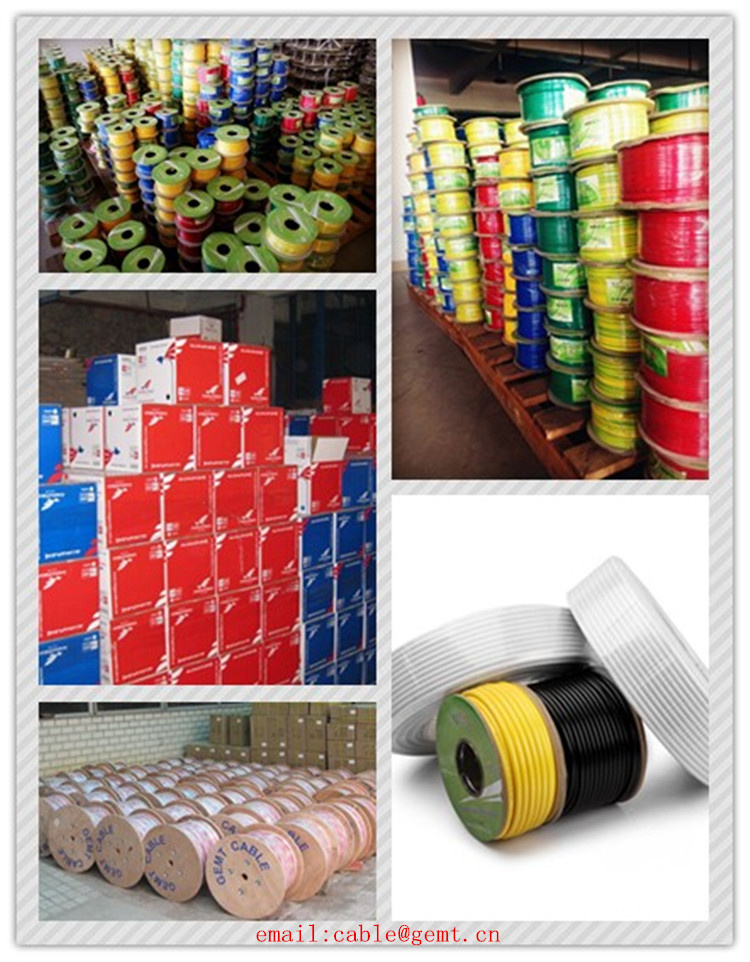

Packaging & Shipping
Certifications
FAQQ: Can I have a sample?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
Q: How long is the lead time?
A: Sample needs 1-2 days; mass production needs 15-30 days.
Q: Do you have the MOQ limit?
A: Our MOQ is 100-10000meters, depending on the products;
Sea Port: FOB Shenzhen.
Q: Do you provide OEM or ODM services?
A: Yes, we do.
Q: Do you offer guarantee for the products?
A: Yes, we offer five years guarantee for the products.
