Float Level Controller (CX-FLM-UQK-03)

Prod Model:	CX-FLM-UQK-03
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Install Mode:	Optional
Float Ball Size:	Optional
Temperature:	-20~100c
Switch:	Nc/No
Power Supply:	220V
Accuracy Error:	±2mm (in Water)

Product Description

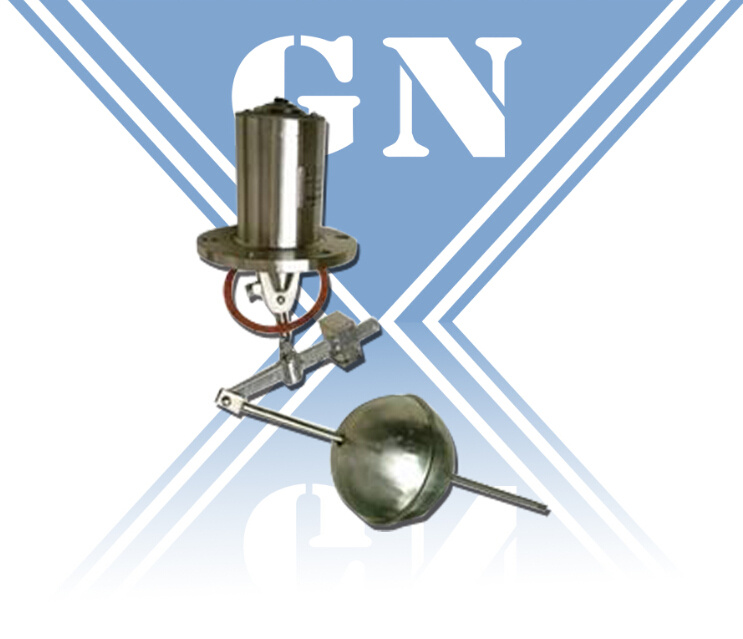

CX-FLM-UQK-03 Float level controller

Brief introduction
The float of controller and flange is made of SS304, common junction box is SS304,
for explosion proof type, the junction box is aluminium. The float assembly of controller and
range switch block are isolated, to avoid leakage and other defect.


Principle
When the float change up and down with the change of level in the limit of movement,
the magnetic steel will move up and down accordingly. Push the magnetic steel of range
switch block move via non-magnetic housing. To make the output contact connects of off. Control backward signal
device send out light or sound signal. When level go up and down, only when it within up
and low limit of movement, output contact can connect or off, and there are no signal send out.

Structure It's consist of float assembly, range switch block and housing.
A pair of magnetic steel installs at float end and range switch block separately


Main parameters

Type	CX-FLM-UQK-01	CX-FLM-UQK-02	CX-FLM-UQK-03
Protection	DIIBT4
Medium pressure	1.0 MPa
Medium temperature	Normal:≤100ºC ,High-tem:≤350ºC
Working life	5×100^2
Power and contact capacity	AC:220V/1.5A,110V/2.5A ;DC:24V/2.5A,240V/0.5A
Net weight	1.5~2.0Kg
Switch difference	≤8	25~550	8~1000
Tuning method	Not adjustable	Class adjustable	No-class adjustable
Installation type	Horizontal	Horizontal	Vertical
