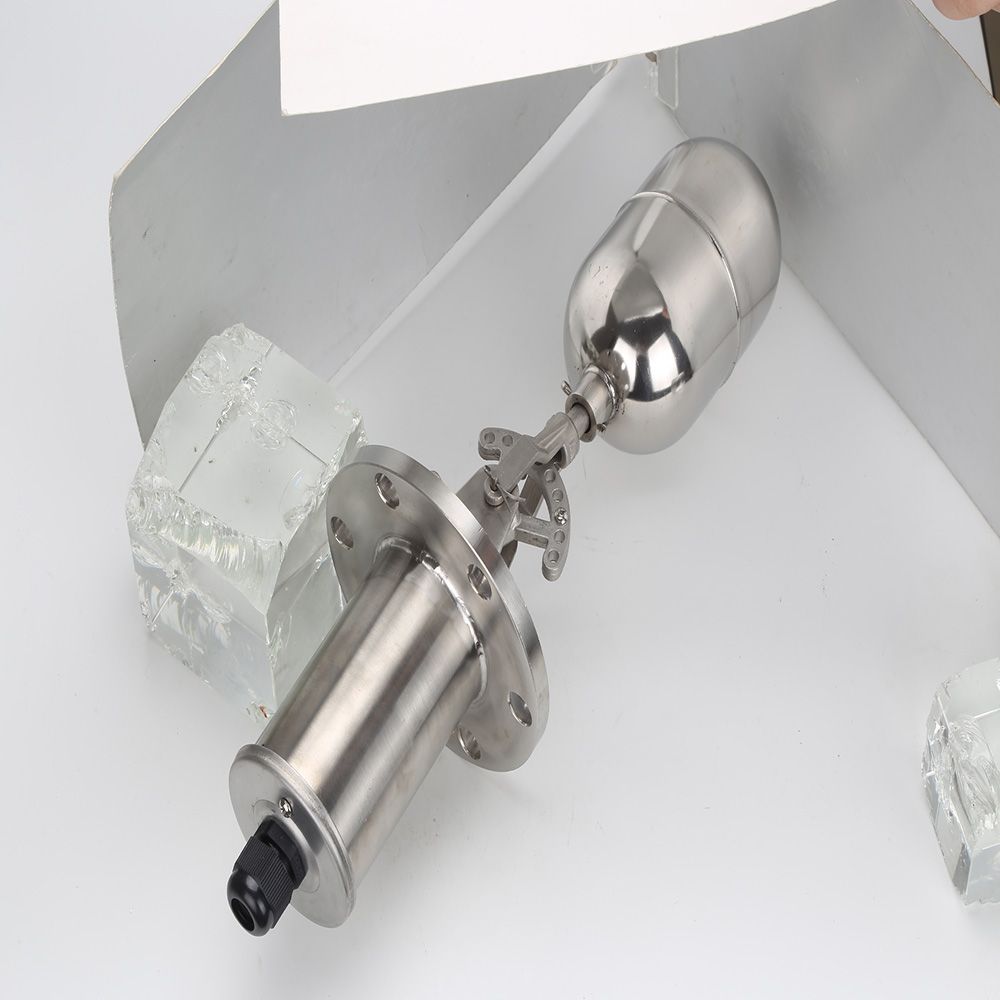

Float Level Controller / Switch a+E-75K-a

Prod Model:	YH

Product Description

Attention:
- this type of controller is non waterproof structure, should not be used in outdoor occasions;
It should make the metal shell reliable grounding installation (usually connected to the flange), to ensure the safe use of electricity;
The controlled medium should not have magnetic impurities, and surface wave frequency can not be too large;
The use of instruments should be checked regularly;
The controller from the date of shipment is guaranteed for twelve months, the factory will take charge of all the product quality problems, quality problems, the factory is responsible for the timely repair or replacement.
Model Specification (length of cable)Material cable / shellRange (mm)Switch gap (mm)Measured medium temperatureA+E-75K-A2m,3m,4m,5m,6m,7m,8m,9m,10m,15m, Special can be customizedCR/PP Chloroprene rubber / polypropylene0 ~ 500Less than 8Less than 180 degreesWorking pressure of measured mediumMeasured medium proportionExplosion-proof gradeWorking environment temperatureInstallation formPower and contactcapacity

Operating pressure	Ordinary type ≤1.0Mpa Explosion-proof ≤4.0MPa
Operating temperature	0~100ºC  0~150ºC
Contact capacity	220VAC,150 W,1A/3A
Medium density	≥0.65g/cm3
Material	the part that contacts with the liquid:H62 or 1Cr18Ni9Ti Explosion-proof shell:ZL102 sprayed by paint
Electrical interface	M20×1.5 internal thread
Flame-proof	dIIBT4 flame-proof type, ibIICT4 intrinsically safe type
Connection flange	The non-explosion-proof adopts non-standard convex flange. The explosion-proof control connection flange standard: DN80PN4.0Mpa convex flange(see controller flange dimension diagram).UQK-(04) flange is DN40 PN6.4Mpa(Concave flange is made by the user.)
