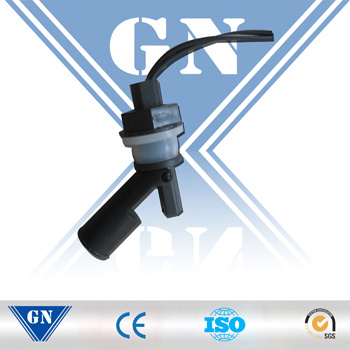

Float Level Switch (CX-FLM-RF-MH21)

Prod Model:	CX-FLM-RF-MH21
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Install Mode:	Optional
Float Ball Size:	Optional
Temperature:	-20~100c
Switch:	Nc/No
Power Supply:	220V
Accuracy Error:	±2mm (in Water)

Product Description

CX-FLM-RF-MH21 Float level switch

Principle
CX-RF-MH21 series small float switch is in closed PP plastic pipe , let the pipe prong one or several hollow float on the bar after setting one or more reed switch. Use the magnet in the float to attract contact of reed switch , let it produce the action on and off to control the level .

Main parameters

Contact capacity	70W/SPST
Switch current	0.7A
Switch voltage	220VAC/200VDC
Contact resistance	<100mΩ
Electric life	107
Working temperature	-10ºC~+80ºC

After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Payment Terms:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal

Our Integrity Promises your Quality !

Please contact with me, I will provide you professional service and high quality products.
