Float Level Switch260s

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Install Mode:	Optional
Float Ball Size:	Optional
Temperature:	-20~100c
Switch:	Nc/No
Power Supply:	220V
Accuracy Error:	±2mm (in Water)

Product Description

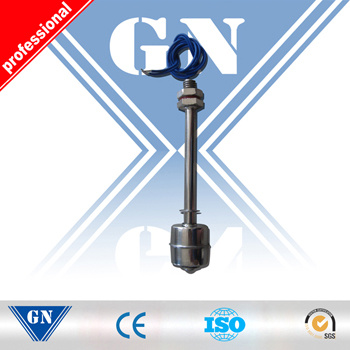

float level switch


Brief introduction
1.This type flow switch has small structure and wide usage and suit for the external environment
2.Bar color is orchid , bar length is 67mm,90mm,100mm, diameter is 28mm ,thickness is 28mm , screw is 15mm ,M10X1


Principle
The sensor install one or more reed switch , then this pipe drill through one or more empty and inbuilt ring magnetic float ,the reed switch will have the relative action and the resistance will change when the float with magnet drift up and down and emit a switch signal

Dimension

Main parameters

Installation	Top or bottom-mounted (vertical +/-20 ºC)
Screw	M10
Electric connection	300mm, UL1430 AWG22
Working pressure	15 Bar
Working temperature	-10~75ºC
Accuracy	+/-2mm
Switch type	N.C./N.O
Working voltage	220VAC
Working current	0.70A
Contact capacity	50w
Working life	1000000times
Float dimension	Dia.28 * dia.8.50*28

After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Payment Terms:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal

Our Integrity Promises your Quality !

Please contact with me, I will provide you professional service and high quality products.
