Float Level Transmitter (CX-FLM-UQK-91)

Name: Float Level Transmitter (CX-FLM-UQK-91)
Brand: all-electronics-online.com
SKU: 750018135
Availability: InStock
Rating: 4.3 (149 reviews)

Price:	US $ 15/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CX-FLM-UQK-91
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Install Mode:	Optional
Float Ball Size:	Optional
Temperature:	-20~100c
Switch:	Nc/No
Power Supply:	220V
Accuracy Error:	±2mm (in Water)

Product Description

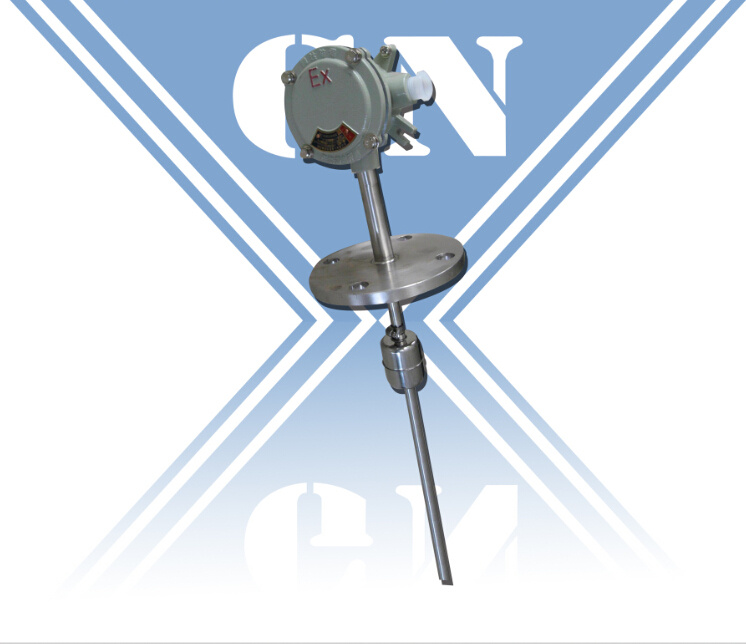

CX-FLM-UQK-91 Float level transmitter

Brief introduction

Widely used in oil refining ,chemical ,paper ,food and sewage treatment industries
It can process the liquid level display ,alarm and control in the open or close or underground container
The medium can be water ,oil ,acids ,alkalis ,industrial effluent and the non-conductive liquid
it can overcome the fake liquid level cause by the bubble in the liquid
5.Anti-corrosion type controller have excellent corrosion resistance for corrosive medium . And anti-explosion type can apply in the explosive situations (Explosion-proof ,explosion-proof mark : dIIBT4).

Main parameters

Content	Type
Content	G(B)	F(B)	S	GX
Standard	Q/320621EXE01-2001
Range	≤6m	≤6m	≤2m	≤1.5m
Medium temperature	-40~+80ºC (High+120ºC)	-40~+80ºC (High+120ºC)	-5~+45ºC	-40~+80ºC (High+120ºC)
Ambient temperature	-10~+60ºC	-10~+60ºC	-5~+45ºC	-10~+45ºC
Working pressure	1.0Mpa		Normal pressure	0.25Mpa
Power supply	24VDC
Measured medium ratio	≥0.7g/cm3
Medium viscosity	≤1.25 St(1St=10-4m2/S)
Load resistance	620Ω
Outer cable connector	Female screw M20×1.5
Output signal	4~20mA
Accuracy	±10mm
Flange	HG20592~20635-97/DN80~150/PN1.0~2.5MPa and other GB,HGJ,ANSI
Anti-explosion	DIIBT4

Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.

Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
