Float Switch for Sump Pump Cable Ball Float Liquid Level Switch
| Price: |
US $ 33/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
UQK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Test Mode: |
Point Test |
| Test Region: |
Forming Cable |
Product Description
1. Features:

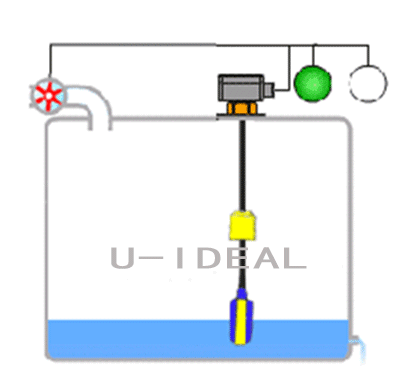

Float Level Switches can control the liquid level of barrel, tank and well .They can control the level automatically, easy to use and install, safe and reliable, little maintenance, non-toxic and environmental. They can prevent sewage and are widely used to control the level in the pond, tank, acid and alkali pool, barrels, troughs and other containers in households, factories, mines, and so on.2. Technical Parameters:
Current Rating: voltage: 10(8A) 250V-10(4)A 380V;
Power Rating: 1 KW;
Operating temperature: 0°C to +80°C;
Working pressure: 1 atmospheric pressure;
Electrical life: 1*100000timesWorking life: 5*100000 timesSP.GR: 1:1

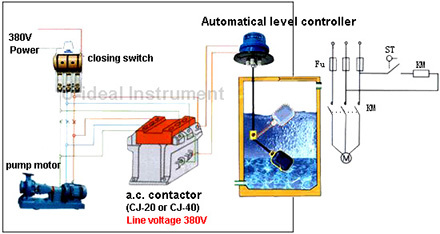

Leading cable Length: 4m (special length may be custom-ordered).3. Installation and Connection:
To use brown and black wires:
Floater below the level, the contact is connected
Float at the upper level, the contact is no connectedWhen use brown and blue wires: Float in the upper level, the contact is connected to the state.
Float at the lower level, contact is unconnected.
Wires which are not using must be insulated absolutely.
Floater level switch's voltage 24V is recommended.
4. Installing Method of Weights
A. Penetrate the float switch cable through concave hole under the center of the heavy weights, gently push the heavy weights to make the plastic ring which is embedded at the top of the hole dropped off .(If necessary, can use screwdriver to removed the plastic ring). Then fix the shedding plastic ring to the cable where you would like to fix the heavy weights to control the level. B. Moving the weights slowly and pulled out cables untill the Center of heavy weights holding plastic ring. the weights will not fall as long as the weights hold the plastic ring. If the plastic ring damaged or lost, can use bare copper ware lined with cable instead of plastic ring.
Note: Weights supplied only when request.
Please connect cable directly to controlling box, try to avoid joints out of control box.
If had to have the joints, definitely, cable joints can't immerse into liquid.| Liquid Temperature | Min 0°C (32°F)
Max 60°C (140°F) |
| Liquid Density | Min .65g/cm
Max 1.5g/cm |
| Protection | IP68 @ 20m (65ft)
|
Working Pressure
| .35MPa
|
Switching Speed
| 600/min
|
Contact Life
| 10 million switches
|
Contact Type
| Microswitch with NO and NC contacts |
Switching Angle
| 25° (from horizontal)
|
Max Voltage
| 240Vac
|
Max Current
| 10amp (COS 0)
|
Cable Material
| Neoprene Rubber
|
| Cable Size | Ø7mm / 3 x .75mm 2 |
| Housing Material | ABS - Acrylonine
|
| Chemical Resistance | Acid - Good
Alkaline - Good
Petro - Good |
