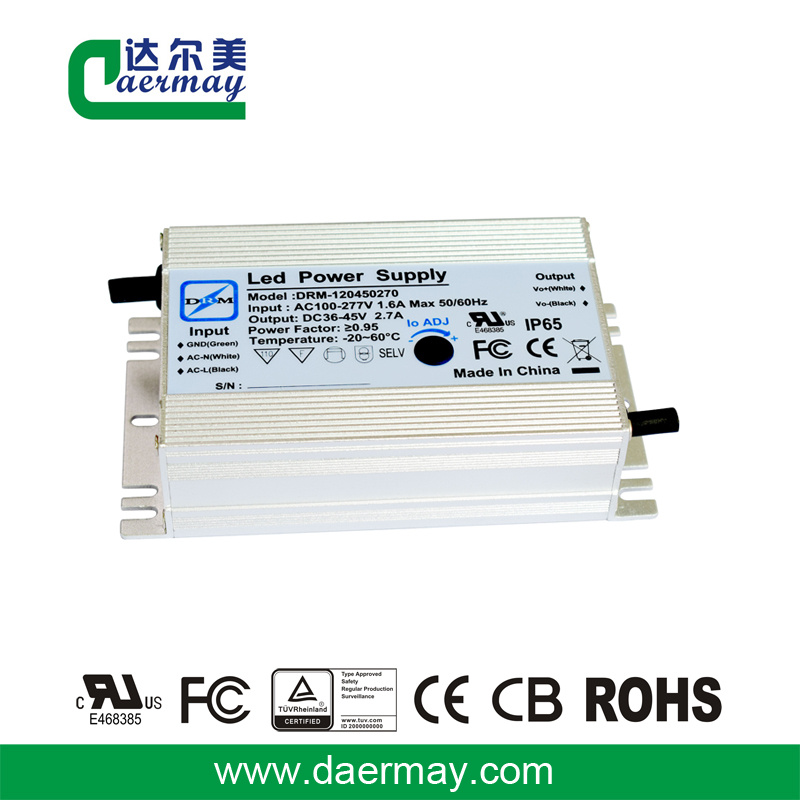

Flood Light LED Power Supply 120W 1.55A

Name: Flood Light LED Power Supply 120W 1.55A
Brand: all-electronics-online.com
SKU: 799958195
Availability: InStock
Rating: 4.7 (113 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DRM-120450155
Input Voltage:	100-277
Efficiency:	87%
Power Factor:	0.95
Output Voltage:	36-45V
Rated Current:	1.55
Protection:	Short, Ocp
Others:	with Power Factor Correction Function
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	DRM

Product Description

(Model)		DRM-120150500	DRM-120240500	DRM-120360165	DRM-120360195	DRM-120360220	DRM-120360250	DRM-120360280	DRM-120360300	DRM-120360330	DRM-120450135	DRM-120450155	DRM-120450180
Input	Voltage Range(Vac)	100-277	100-277	100-277	100-277	100-277	100-277	100-277	100-277	100-277	100-277	100-277	100-277
	Frequency Range(Hz)	50-60	50-60	50-60	50-60	50-60	50-60	50-60	50-60	50-60	50-60	50-60	50-60
	Max Current(A)	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
	Efficiency(η)	87%	88%	87%	87%	88%	89%	89%	89%	89%	87%	87%	88%
	Power Factor(PF)	0.95	0.96	0.95	0.95	0.95	0.96	0.96	0.96	0.96	0.95	0.95	0.96
	Harmonic(THD)	≤15%	≤15%	≤15%	≤15%	≤15%	≤15%	≤15%	≤15%	≤15%	≤15%	≤15%	≤15%
Output	Power(W)	75	120	59.4	70.2	79.2	90	100.8	108	118.8	60.75	69.75	81
	Voltage Range(Vdc)	10-15	15-24	24-36	24-36	24-36	24-36	24-36	24-36	24-36	36-45	36-45	36-45
	Rated Current(A)	5.00	5.00	1.65	1.95	2.20	2.50	2.80	3.00	3.30	1.35	1.55	1.80
	Current Range(A)	Can be adjusted by internal potentionmeter
	Current Range(A)	3.7-5.8	3.7-5.8	1.5-3.8	1.5-3.8	1.5-3.8	1.5-3.8	1.5-3.8	1.5-3.8	1.5-3.8	1.2-3.5	1.2-3.5	1.2-3.5
	Ripple&Noise(V)	150	240	360	360	360	360	360	360	360	450	450	450
	Start Time(S)	≤2	≤2	≤2	≤2	≤2	≤2	≤2	≤2	≤2	≤2	≤2	≤2
Protection	Short Circuit	ok	ok	ok	ok	ok	ok	ok	ok	ok	ok	ok	ok
	Overcurrent	98-105%
Diamension	Length X Width X Height(mm)	143x80x37

Delivery time:10-15 working days
Packing:Standard export packing
Payment Methods:T/T or Paypal
Warranty:3 years
Certification:UL and CE

Shenzhen Daermay Electronics Technology Co., Ltd has been leading outdoor waterproof LED driver manufacturer in China since its establishment in 2009. We are aiming to be leading waterproof LED driver brand which offer high quality to LED lighting industries in global market.

Currently, all of our products has been granded UL and CE listed, and our 100% customers are from global countries.

Good products need a first-class hardware platform to support, In order to ensure the stability of the products, DAERMAY has a 500 m2 R&D office which equipped with top brand machines like Tektronix, HP, PRODIGIT, YOKOGAWA, KIKUSUI, and also we have our own anti-static dust free SMT room. Meanwhile our workshop equiped with famous brand Multitemperatual Zones Refolw Soldering, Multi zone automatic wave soldering, automatic plug -in production lines, Automatic glue filling machine, comprehensive testing machine and so on.

Quality of course is one of the most important point that customers concerned, in order to make sure the stability of the finished products, we have equiped 500m2 power aging workshop, and with advanced aging machines, the LED drivers must be 100% full charge aging before OQC test which equiped with advanced ATE machines to test each technical parameters are meet with standards that required, to avoid any death traps.

We are keep moving to be better and try to contribution to global energy saving, greens environmental protection.
