| Prod Model: |
RG6 with F connector |
| Braiding Coverage: |
65% |
| Lower Attenuation: |
Yes |
| Jacket: |
UV Stabilised Jacket |
| Application: |
LAN Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
RoHS |
| Type: |
Rg59 Stabilized Jacket |
| Wire Core Material: |
CCS or Bare Copper |
| Model: |
Rg59 with Stabilized Jacket |
| Brand: |
Libo or OEM |
Product Description

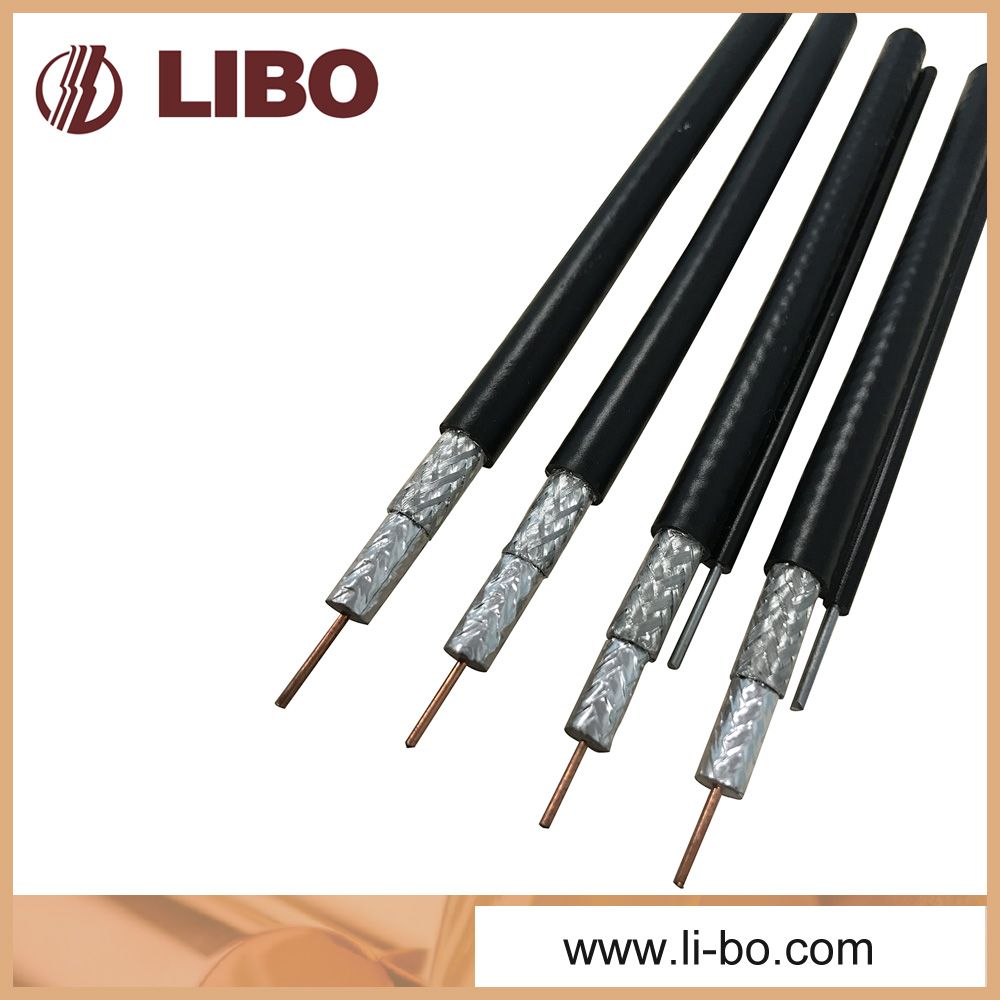

CATV 75 ohm RG6 Cable Indoor PVC Jacket F Connector ROSH Compliant
Quick Details:
- Flooding compound coaxial cable
- 18AWG CCS
- Clear polyethylene insulation
- Bonded alumium tape
- Tri-shield
- Jelly or flooding compound
- UL standard PVC jacket
Product description:
Dielectric core is insulating grade virgin polyethylene.Inner conductor is bare solid copper. The 1st shield is bonded laminated aluminum tape, the second shield is 65% aluminum wire braid; jelly or flooded compound is added before outer jacket extrusion. Outer jacket is UL standard PVC.
Applications:
RG6 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Center conductor:
18AWG copper clad steel
Nominal diameter: 0.0403"(1.02mm)±0.01(0.0004)
Dielectric:
Gas expanded polyethylene
Nominal diameter over dielectric: 0.18"(4.57mm)
Shield:
1st shield: bonded aluminum tape.
2nd shield: 0.15 aluminum braid wire, 4ends x16 carry, pitch 25mm, 60% coverage.
3rd shield: normal aluminum foil.
Jelly or flooded compound is added before jacket extruding.
UL standard PVC Jacket:
Nominal diameter over jacket:0.278"(7.06mm)±0.008"(0.2mm)
Messenger version: 1.3mm zinc coated (galvanized) carbon steel wire.
Packing:
Buyer's label and carton design service is available
Electrical properties:
Impedance : 75±3 ohms
Velocity of propagation: 82% nominal
Attenuation@ 68OF(20oC):
@Frequency MHZ | dB/100 meters(MAX.) |
5 | 2.66 |
55 | 5.25 |
211 | 10.10 |
250 | 11.25 |
270 | 11.48 |
300 | 12.14 |
330 | 12.76 |
350 | 13.15 |
400 | 14.11 |
450 | 15.03 |
500 | 15.93 |
550 | 16.70 |
600 | 17.77 |
750 | 19.69 |
870 | 21.33 |
1000 | 22.97 |
Competitive Advantage:
- RG6 cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
- RG6 cable is of low cost, and it is easy to install as well.
- Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
- Libo cable has a stable workforce and engineering team, normal lead-time for 40' FCL is around 10 days.
- Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEMservice as well as ODM service.
