Yueqing Box Electric Co., Ltd. >> Floor Standing Cabinet Box

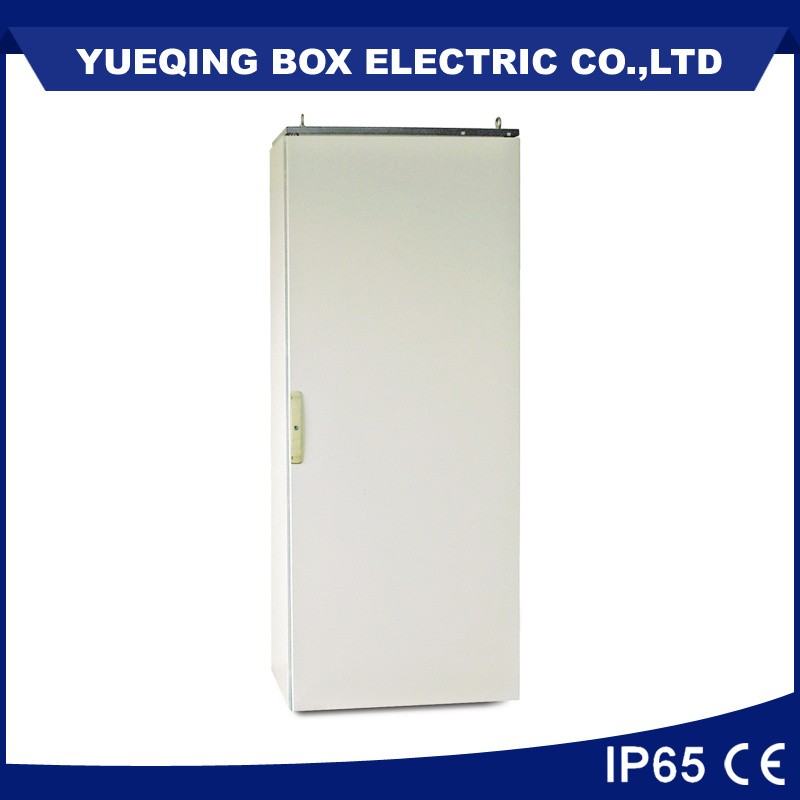

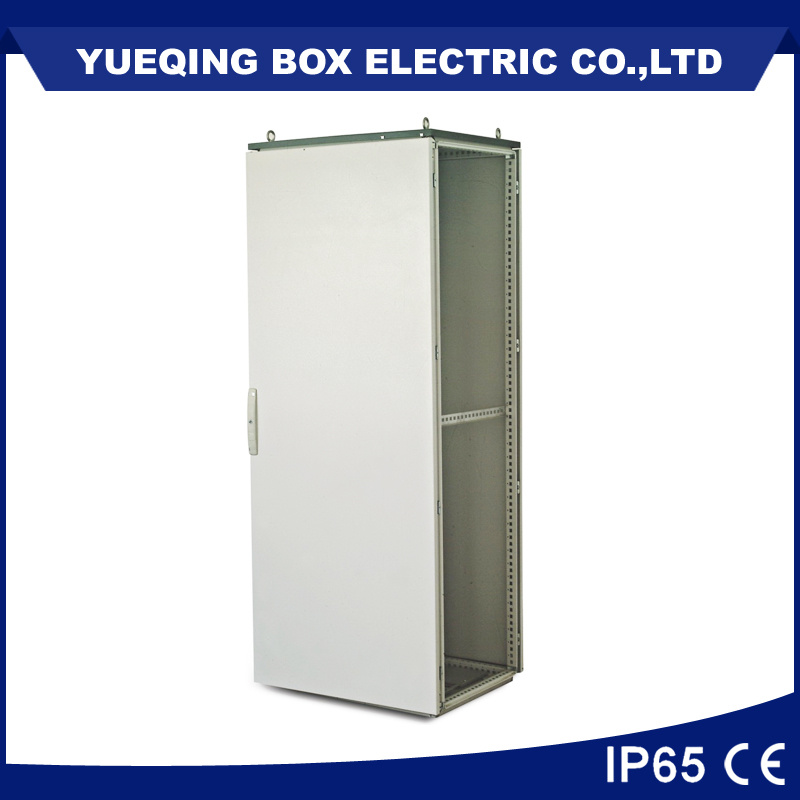

Floor Standing Cabinet Box

Floor Standing Cabinet Box
Price: US $ 300/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Thickness: 2.0/1.5/2.5
Material: Steel
Type: Power
Structure: Protection
Certification: Ce
Size: 2000*800*800
Brand: Yqbox

Product Description

Standard configuration:
Enclosure  and door
Mounting plate
Handle Lock
Polyurethane door seal
2 parts Cable gland plate
4 Mounting plate supports
4 lifing eyebolts

Degree of protection: IP55  to E N60529

External mechanical impact resistance: I K10

Surface treatment:
Textrured epoxy polyester powder coating

Material and color:
And front door: Cold roll steel to paint in RAL7032
Mounting plate : Galvanized steel or plain steel to paint in RAL2004 smooth finish

ModelH (mm)W(mm)D(mm)No.of door
FS128312008003001
FS12104-2120010004002
FS146414006004001
FS148414008004001
FS148514008005001
FS14104-2140010004002
FS14124-2140012004002
FS166416006004001
FS166516006005001
FS168416008004001
FS168516008005001
FS16104-2160010004002
FS1612-2160012004002
FS186518006005001
FS188418008004001
FS188518008005001
FS188618008006001
FS18104-2180010004002
FS18105-2180010005002
FS18124-2180012004002
FS18125-2180012005002
FS18164-2180016004002
FS18165-2180016005002
FS208420008004001
FS208520008005001
FS208620008006001
FS20104-2200010004002
FS20105-2200010005002
FS20124-2200012004002
FS20125-2200012005002
FS20126-2200012006002
FS20164-2200016004002
FS20165-2200016005002
FS20166-2200016006002



Yueqing Box Electric Co., Ltd is established in 2000, situated on a modern industrial park in Yueqing Zhejiang. Our's company away from the qiligang wenzhou port only 500meter.

Our company mainly manufacture wall mounting enclosure, stainless steel enclosure, junction box, telephone box, control desk, floor standing cabinet and so on.

Non-standard products can be dsigned and custom to meet users' special requirements.

The company currently production area of 2, 000m2 and 30 employee. With the most efficient state-of-the art production machinery, and supported by a highly qualified work force and experienced engineers that ensure the highest quality enter into international markets.

Through the past 10 years efforts, we have estbilished a strong and loyal mutually beneficial partnership with customers from Europe, south east Asia, Middle East, south amercia, and Africa.

Just tell us your requirements, we will brng the best to your business!
