Flow Switch (CX-FS)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
| Prod Model: |
CX-FS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation: |
Easy |
| Technology: |
Advanced |
| Price: |
Competitive |
| Quality: |
World-Class |
| Maintenance: |
Less and Easy |
Product Description
Flow switch
Series of products
| CX-FS-FB Paddle Flow Switch |
| Diameter | DN25DN150 |
| Set range | 201800L/min(water) |
| Repeatability | ±2.5%FS |
| Connection | terminal type |
| Output | Mechanical switch NO+NC(250VAC,3A) |
| Pressure proof | 16 bar |
| Average pressure loss: | 0.08bar( at max.flow rate) |
| Ambient temperature | -2580C |
| Medium temperature | 090C |
| Interface screw | G1"pipe screw |
| Protective class | IP33 |
| Weight | 0.55kg |
| Material | Main body | stainless steel |
| Process connection: | brass |
| Connection rod | brass |
| Baffle | stainless steel |
| Seal | NBR |
| Housing | ABS |
| CX-FS-FB12 Baffle Flow Switch |
| Repeatability | ±2.5%FS |
| Connection | terminal type |
| Output | Mechanical switch NO+NC(250VAC,3A) |
| Pressure proof | 16 bar |
| Average pressure loss: | 0.08bar( at max.flow rate) |
| Ambient temperature | -2580ºC |
| Medium temperature | 090ºC |
| Interface screw | G1"pipe screw |
| Protective class | IP33 |
| Weight | 0.85kg |
| Material | Main body | stainless steel |
| Process connection: | brass |
| Connection rod | brass |
| Baffle | brass |
| Seal | NBR |
| Housing | ABS |
| CX-FS-FE20 Piston flow switch |
| Accuracy | ±5%FS |
| Delay | Depend on the switch point , min. point 0.6L/Min |
| Switch set scale | Calibrate it under the horizontal installation for water medium (20 C) . Installation position : The medium and the temperature will effect the switch value |
| LED display | It will no LED display for AC supply if the LED is directly current supply |
| Connection | M12 |
| Output | Reed switch, capacity 24VDC / 250VAC ,100mA |
| Pressure proof: | 10bar(plastic), 50bar(aluminum), 100bar( stainless steel) |
| Average pressure loss | 0.3bar( at 25L/min) |
| Medium temp. | Max.90ºC |
| Protective | IP65 |
| Pressure | 50bar |
| Max. flow rate | 40L/min(water) |
| Material | Housing | POM plastic,anode alumina,stainless steel |
| Piston | POM plastic |
| Reed switch | Stainless steel |
| Seal | NBR |
| CX-FS-FE40 series Piston flow switch |
| Accuracy | ±5%FS |
| Delay | Depend on the switch point , min. point 0.6L/Min |
| Switch set scale | Calibrate it under the horizontal installation for water medium (20 C) . Installation position : The medium and the temperature will effect the switch value |
| LED display | It will no LED display for AC supply if the LED is directly current supply |
| Connection | M12 |
| Output | Reed switch, capacity 24VDC / 250VAC ,100mA |
| Pressure proof: | 10bar(plastic), 50bar(aluminum), 100bar( stainless steel) |
| Average pressure loss | 0.3bar( at 25L/min) |
| Medium temp. | Max.90ºC |
| Protective | IP65 |
| Pressure | 50bar(100bar) |
| Max. flow rate | 40(100)L/min(water) |
| Material | Housing | POM plastic,anode alumina |
| Piston | POM plastic |
| Reed switch | Stainless steel |
| Seal | NBR |
| CX-FS-FR11 Electronic flow sensor |
| Set range | 1150cm/s( water),3300cm/s(oil),202000cm/s(air) |
| Output | PNP, NPN, Relay ,4-20mA, NO+NC (SPDT) |
| Power supply | 24V±20%DC or 230V±15%AC |
| Switching Current | Max.400mA(PNP or NPN type ), Max.4A( Relay type ) |
| Unload current | Max.80mA |
| Flow indicator | LED (6) |
| Set type | potentiometer set |
| Proof Pressure range | 100bar |
| Temperature gradient | 4ºC/s |
| Response time | 1--13s,standard is 2s |
| Initialization time | 8s |
| Electrical protection | reversed-phase ,short circuit ,overload protection |
| Protection class | IP67 |
| Medium temperature | 20--80ºC |
| Environment temperature | -20--80ºC |
| Storage temperature | -20--100ºC |
| Connection | M12 connector /2m cable (option) |
| Material | Probe is stainless steel . Housing is PBT |
| Weight | 0.4kg |

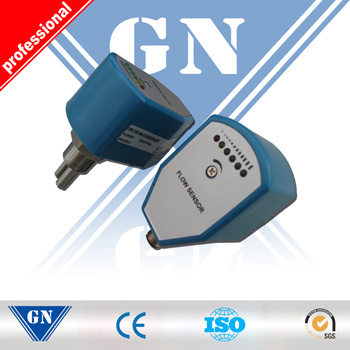

| CX-FS-FR12 Electronic flow switch |
| Set range | 1150cm/s( water),3300cm/s(oil),202000cm/s(air) |
| Output | PNP, NPN, Relay ,4-20mA, NO+NC (SPDT) |
| Power supply | 24V±20%DC |
| Switching Current | Max.400mA(PNP or NPN type ), Max.4A( Relay type ) |
| Unload current | Max.80mA |
| Flow indicator | LED (6) |
| Set type | potentiometer set |
| Proof Pressure range | 100bar |
| Temperature gradient | 4ºC/s |
| Response time | 1--13s,standard is 2s |
| Initialization time | 8s |
| Electrical protection | reversed-phase ,short circuit ,overload protection |
| Protection class | IP67 |
| Medium temperature | 20--80ºC |
| Environment temperature | -20--80ºC |
| Storage temperature | -20--100ºC |
| Connection | M12 connector /2m cable (option) |
| Material | Probe is stainless steel . Housing is PBT |
| CX-PFS-HFS Series water flow switch |
|
| Type | Connection | Paddle quantity | Leaving factory
Set (N) | Pressure(Mpa) | Note |
|
| Cut off min | Switch on Max |
|
| Max | min |
|
| HFS-10 | G3/8" | 1 | 0.5 | 1.5 | 1.6 | 1.0 | SS304 |
|
| HFS-15 | G1/2" | 1 | 0.5 | 1.5 | 1.6 | 1.0 | Brass |
|
| HFS-20 | G3/4" | 1 | 0.5 | 1.5 | 1.6 | 1.0 | Brass |
|
| HFS-25 | G1" | 5 | 0.5 | 1.5 | 1.6 | 1.0 | Brass | |
| CX-PFS-JYF,HFS Paddle type flow switch |
| Model | Connection | Notes | Accuracy |
| HFS-25 | 1″-11½NPT Screw | Red Case | 5% |
| HFS-20 | ¾″-14NPT Screw |
| HFS-15 | ½″-14NPT Screw |
| JYF-25 | 1″-11½NPT Screw | White Case | 2-3% |
| JYF-20 | ¾″-14NPT Screw |
| JYF-15 | ½″-14NPT Screw |
| CX-FS-FPD20 Pointer display type piston flow switch |
| Medium | liquid or gas |
| Repeatability | ≤±3%full scale |
| Pressure | 200bar(stainless steel type)100bar(brass type) |
| Output | normally open output |
| Contact capacity | 240VAC / 110VDC 1.5A |
| Ambient temperature | -2070ºC |
| Medium temperature | 070ºC |
| Protection | IP65 |
| Outlet | M12*1 |
| Material | Electronic body | PC |
| Switch body | stainless steel / brass nickel plating |
| Spring | stainless steel |

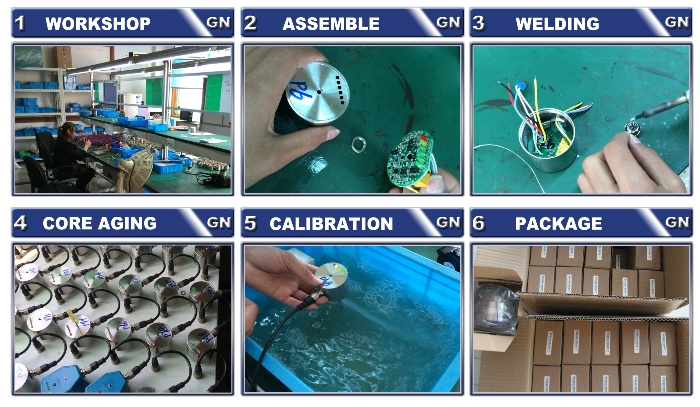

Production line

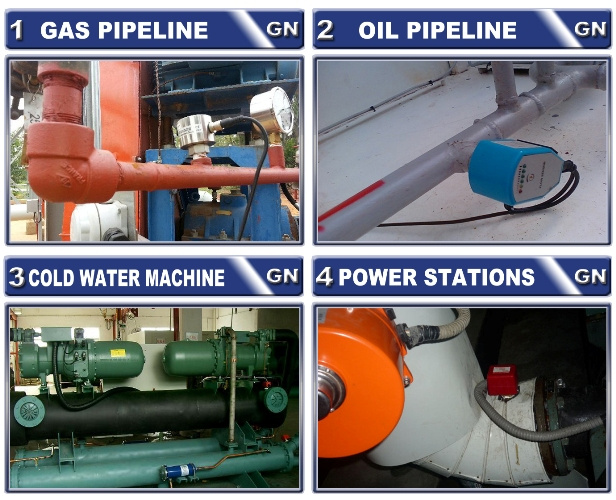

Installation
Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.
Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
