Flrn36-12 AC High-Voltage Load Break Switch

Flrn36-12 AC High-Voltage Load Break Switch
Price: US $ 500-1000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: FLRN36-12

Product Description

FLRN36-12 AC High-Voltage Load Break Switch
Product Specicfication:
ItemUnitParameter
FLN36-12D/T630-20FLN36-12D/T125-31.5
Rated voltageKV1212
Rated frequencyHz5050
Rated currentA630630
1 min power frequency withstand voltageKV42/4842/48
Lighting impulse withstand voltageKV75/8575/85
5 min zero gauge rated power frequency withstand voltageKV2424
Rated thermal stability current(peak)KA20/20
Rated dynamic current(peak)KA50/50
Rated short circuit closing currentKA50/50
Rated closed-loop breaking currentA630
Rated active load breaking currentA630
Rated cable charging breaking currentA1010
Rated short circuit breaking currentKA 31.5
Rated transfer currentA 1750
Fuse type  XRNT-12KV/125A
Fuse strikes the output energyJ 1±0.5
Mechanical lifeTime5000/20005000/3000
The insulation distance betweent the live body and the groundmm>=125>=125
SF6 Gas pressure (relative pressure at 20ºC)bar0.40.4
Closing the same periodms<=2<=2
Main circuit tesistanceμΩ<=65<=65

Product Description:

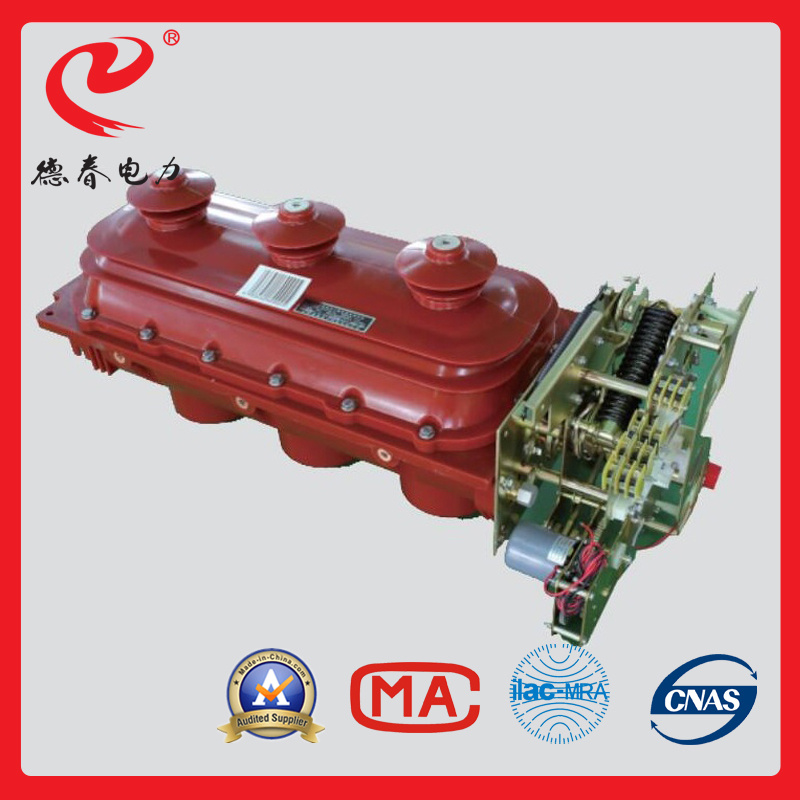

FLRN36-12 indoor AC high-voltage SF6 load break switch is an indoor switch equipment with 12kV rated voltage. The equipment adopts SF6 as gas arcing and insulation medium, including three phases which are opening , closing and earthing, It has the advantages of small volume, convenient installation and strong adaptability to the environmental.







Jiangsu Dechun Power Electric Co., Ltd is located in Menghe Fumin Industrial Park, Xinbei District, Changzhou, Jiangsu Province. It founded in 1999 and covers an area of 50 acres. It built with modern standards for the delivery room 56, 000 square meters and a total investment of 200 million yuan with more than 300 employees. Dechun is one of the domestic key enterprise which researches products such as sulfur hexafluoride load switch, vacuum load switch, sulfur hexafluoride ring network cabinet, cabinets and so on. Dechun has improved production equipment, complete testing equipment and applicable to the product technology standard and tooling facilities.

Since its inception, the company has been adhering to the "integrity is fundamental, quality is the efficiency, innovation is the way, " the guiding ideology, constantly optimizes the quality of management. It has always been to new high-tech products as a guide, develops new products, creates a new brand, and constantly improves the technological content and market share. Under the support, as always, from all sections of the community and all the joint efforts of everyone in the company, Dechun was identified as "key national high-tech enterprise", "high-tech enterprises in Jiangsu Province", "private technology enterprises in Jiangsu Province ", "high-tech SMEs in Jiangsu ", "Credit management standard enterprise of Jiangsu Province " and other honors. It also accessed to hundreds of town, district, municipal, provincial and national awards. At the same time, it has passed National safety production standard (grade 2), ISO9001: 2008 quality management system certification and CCC authentication.
