Fluoroplastic Insulated Wire 28AWG with UL1331

Name: Fluoroplastic Insulated Wire 28AWG with UL1331
Brand: all-electronics-online.com
SKU: 755859465
Availability: InStock
Rating: 4.5 (82 reviews)

Price:	US $ 0.56-2.31/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL1331 28AWG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fluoroplastic Cable:	(UL1331)--28AWG
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Certification:	RoHS
Insulation Material:	FEP
Brand:	Dewei

Product Description

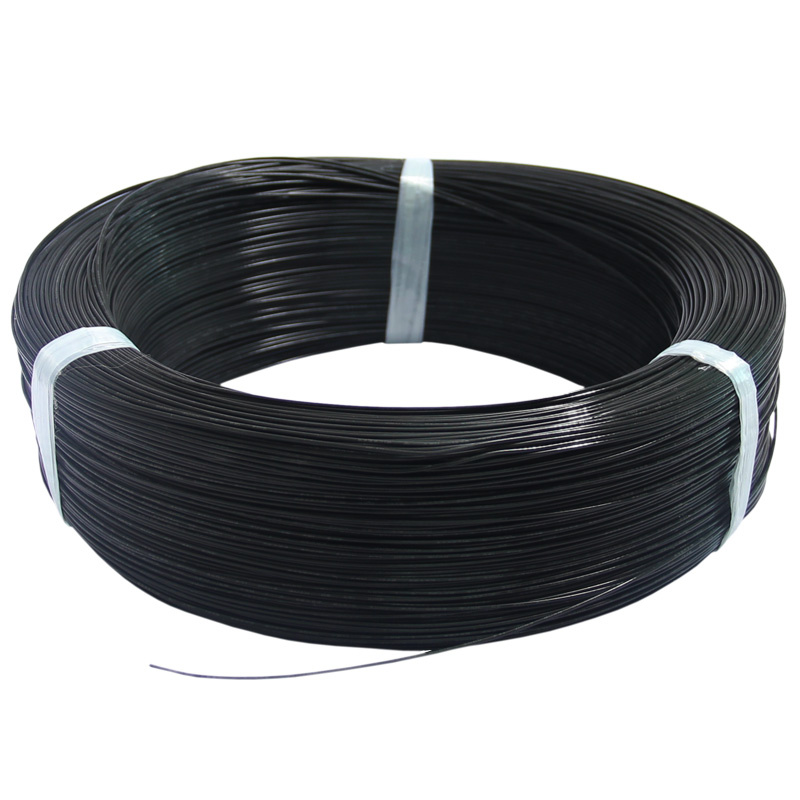

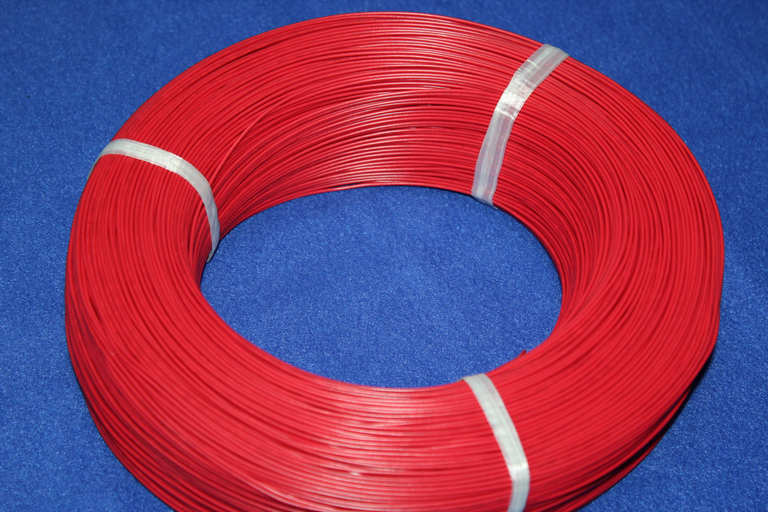

Fluoroplastic insulated Wire 28AWG with UL1331
Nominal Voltage:600V
Temperature Range:-100ºC to 200ºC
Conductor:Tinned copper
Insulator:FEP
O.D.Tolerance:±0.10mm
Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ect
con.of conductor.:1/0.32
Diameter:0.33MM
Thickness of insulator:0.51MM\
over diameter:1.39MM
Packing:305M/COIL

AWG	con.of conductor.	Diameter	Thickness of insulator	over diameter	Packing
	NO/mm	mm	mm	mm	mt/coils
30#	7/0.1	0.3	0.51	1.27	305
28#	1/0.32	0.32	0.51	1.39	305
26#	7/0.16	0.48	0.51	1.51	305
	19/0.1	0.5	0.51	1.52	305
24#	7/0.203	0.61	0.51	1.63	305
	19/0.12	0.6	0.51	1.62	305
22#	7/0.254	0.76	0.51	1.78	305
	19/0.16	0.8	0.51	1.82	305
20#	7/0.31	0.93	0.51	1.97	305
	19/0.19	0.96	0.51	1.98	305
18#	7/0.39	1.17	0.51	2.19	305
	19/0.235	1.18	0.51	2.2	305
16#	7/0.5	1.5	0.51	2.52	305
	19/0.3	1.51	0.51	2.53	305
14#	19/0.37	1.86	0.51	2.88	200
12#	19/0.47	2.35	0.51	3.37	100
10#	37/0.43	3.02	0.51	4.04	100
