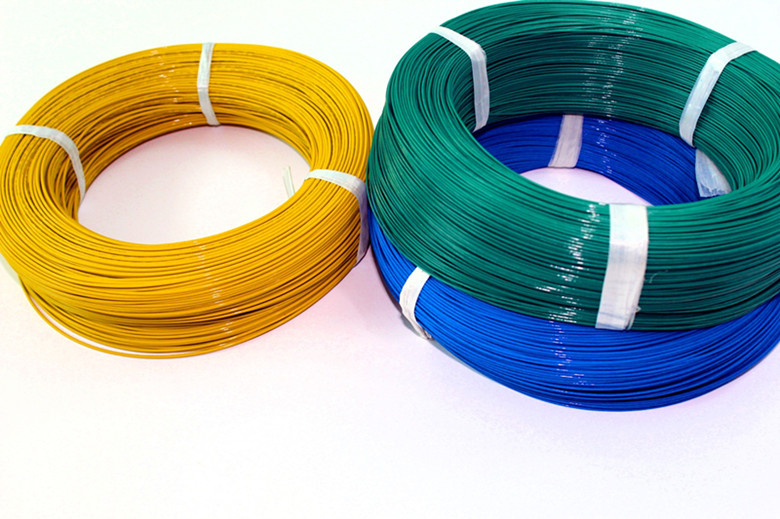

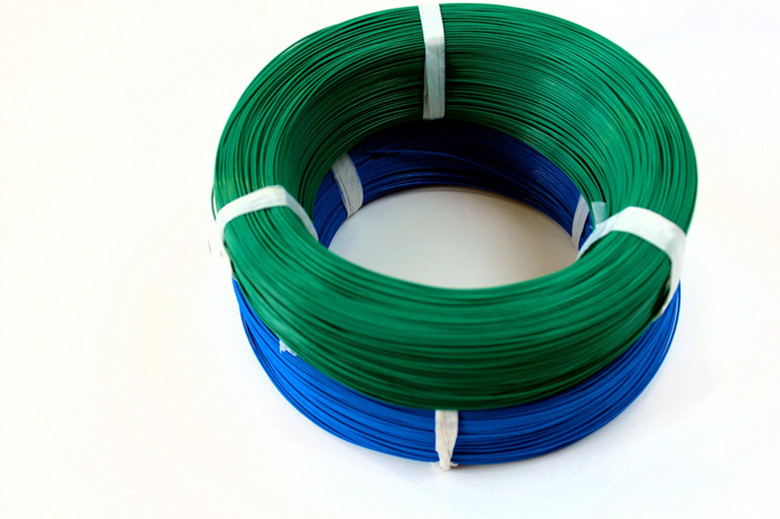

Fluoroplastic Wire with UL10362

Name: Fluoroplastic Wire with UL10362
Brand: all-electronics-online.com
SKU: 757171445
Availability: InStock
Rating: 4.9 (100 reviews)

Price:	US $ 0.21-2.35/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL 10362
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fluoroplastic Cable:	UL10362
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Certification:	RoHS
Insulation Material:	PFA
Brand:	Dewei

Product Description

Fluoroplastic Wire with UL10362
Nominal Voltage:600V
Temperature Range:-100ºC to 250ºC
Conductor:Tinned copper
Insulator:PFA
O.D.Tolerance:±0.10mm
Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ect

AWG	con.of conductor.	Diameter	Thickness of insulator	over diameter	Packing
	NO/mm	mm	mm	mm	mt/coils
30#	7/0.1	0.3	0.30	0.9	610
28#	7/0.12	0.38	0.30	0.96	610
26#	7/0.16	0.48	0.25	0.98	610
24#	7/0.203	0.61	0.25	1.11	610
22#	19/0.15	0.8	0.25	1.3	305
20#	19/0.19	0.96	0.25	1.46	305
18#	19/0.235	1.18	0.25	1.68	305
16#	19/0.3	1.51	0.25	2.01	305
14#	19/0.37	1.86	0.25	2.36	305
12#	19/0.47	2.35	0.3	2.95	200
10#	37/0.43	3.02	0.3	3.62	100
