Fluoroplastic Wire with UL1332

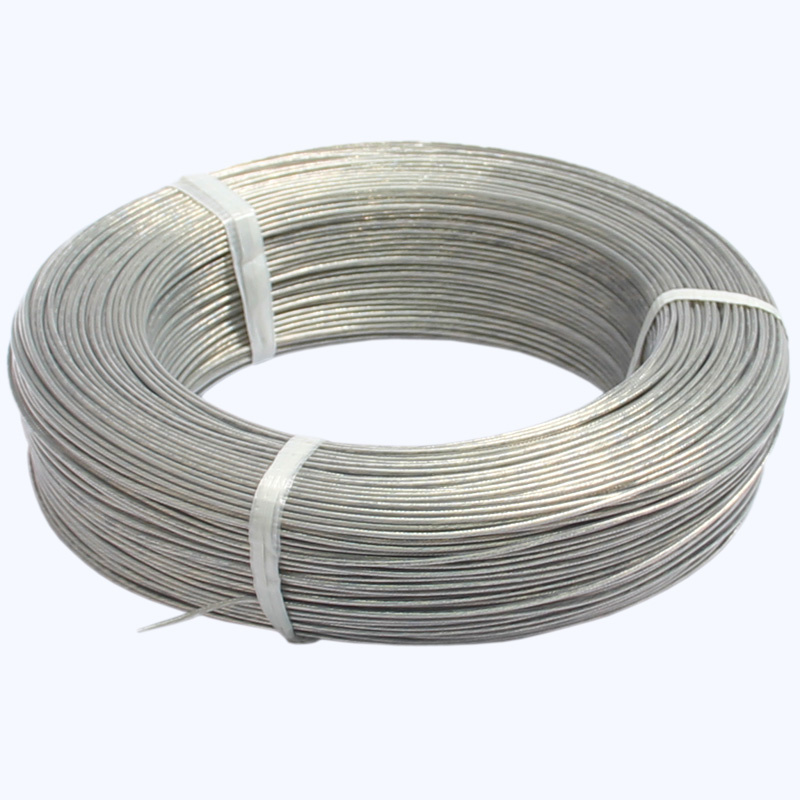

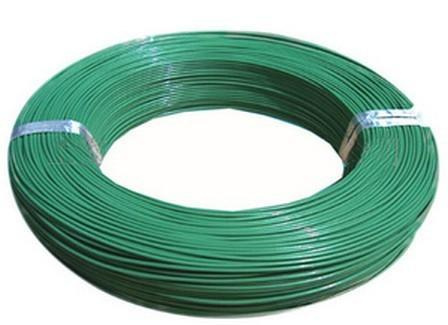

Name: Fluoroplastic Wire with UL1332
Brand: all-electronics-online.com
SKU: 757171405
Availability: InStock
Rating: 4.3 (33 reviews)

Price:	US $ 0.98-6.51/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL1332
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fluoroplastic Cable:	UL1332
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Certification:	RoHS
Insulation Material:	FEP
Brand:	Dewei

Product Description

Fluoroplastic wire with UL1332
Nominal Voltage:600V
Temperature Range:-100ºC to 150/200ºC
Conductor:Tinned copper
Insulator:FEP
O.D.Tolerance:±0.10mm
Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ect

AWG	con.of conductor.	Diameter	Thickness of insulator	over diameter	Packing
	NO/mm	mm	mm	mm	mt/coils
30#	1/0.254	0.25	0.20	0.65	610
28#	1/0.32	0.31	0.25	0.81	610
26#	7/0.16	0.48	0.33	1.15	305
	19/0.1	0.5	0.33	1.16	305
24#	7/0.203	0.61	0.33	1.27	305
	19/0.12	0.6	0.33	1.26	305
22#	7/0.254	0.76	0.33	1.42	305
	19/0.16	0.8	0.33	1.46	305
20#	7/0.31	0.93	0.33	1.61	305
	19/0.19	0.96	0.33	1.62	305
18#	7/0.39	1.17	0.33	1.85	305
	19/0.235	1.18	0.33	1.84	305
16#	7/0.5	1.5	0.33	2.16	305
	19/0.3	1.51	0.33	2.17	305
14#	19/0.37	1.86	0.33	2.52	200
12#	19/0.47	2.35	0.33	3.01	100
10#	37/0.43	3.02	0.33	3.68	100

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.
