Flush Diaphragm Pressure Transmitter Ppm-T232c

Name: Flush Diaphragm Pressure Transmitter Ppm-T232c
Brand: all-electronics-online.com
SKU: 819664695
Availability: InStock
Rating: 4.9 (107 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PPM-T232C
Pressure Range:	0~1MPa...150MPa
Certification:	CMC

Product Description

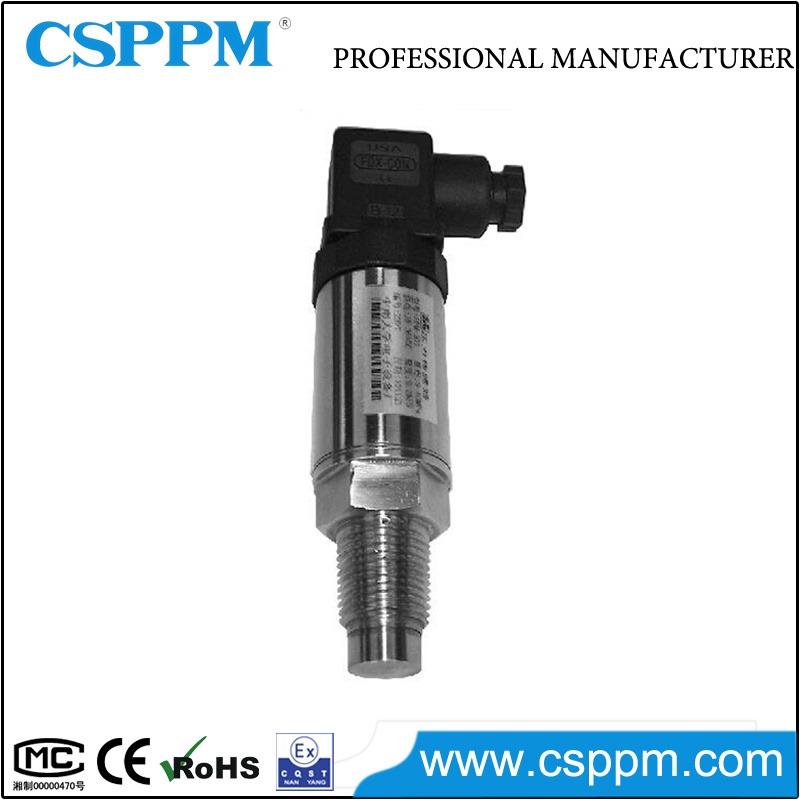

Flush Diaphragm Pressure Transmitter PPM-T232C

Description
Flush Diaphragm Pressure Transmitter PPM-T232C is designed for solid liquid mixture and Viscidity Liquid pressure measurement. The diaphragm adopts high strength stainless steel, it has a good resistance to impact from solid particle. The PPM-T232C has wide pressure ranges up to 150 MPa, and offers an accuracy of 0.5%FS or 0.2 %FS. Various output signals are available, such as 4-20 mA, 1-5 VDC, 0-10 VDC and so on.

Features
1. High strength stainless steel diaphragm.
2. Wide pressure ranges from 0~1 MPa to 0~150 Mpa.
3. Wide operation temperature from -40~+80 ºC to -40~-150ºC.
4. Various output signals: 4-20 mA, 1-5 VDC, 0-5 VDC, 0-10 VDC.

Applications
1. Oil and chemical industry
2. Paint inspection system
3. Solid liquid mixture and Viscidity Liquid pressure measurement.

Specifications

Measuring medium	Gas, liquid, Viscidity Liquid, Solid Liquid mixture
Pressure type	Gauge pressure(G), Sealed pressure(S)
Measuring range	0~1MPa…10MPa…150MPa
Power supply	24VDC(12-32VDC)
Output signal	4-20mA, 1-5VDC,0-5VDC,0-10VDC
Response frequency	1.5kHz
Non-linearity	0.05%FS
Repeatability	0.05%FS
Accuracy	0.1%FS,0.2%FS,0.5% FS optional
Long-term stability	0.2%FS/year
Operation Temp.	-40~85ºC/125ºC/150ºC
Insulation resistance	≥500 MΩ/200VDC
Over-pressure	150%FS (1.5 times FS)
Damage pressure	300%FS (3 times FS)
Process connection	M20×1.5, 1/2NPT or others on request
Wetted parts materials	Diaphragm:17-4PH stainless steel,316L stainless steel;Process connection:1Cr18Ni9Ti
Humidity	0~95% RH
Ingress protection	IP65
Electric connection	L-connector

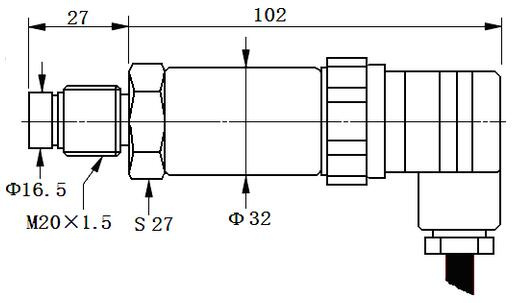

Dimensions

Order information

Model PPM-T232C Pressure Transmitter
	Code	Pressure type
	G	Gauge pressure
	S	Sealed pressure
		Code	Pressure ranges
		M	0~ X MPa
			Code	Accuracy
			1	±0.5%FS
			2	±0.25%FS
			3	±0.1%FS
				Code	Output signal
				A1	4~20mA
				V1	0~5V DC
				V2	1~5V DC
				V3	0.5~4.5V DC
				V4	0~10V DC
					Code	Operation temperature
					T1	-10~70ºC
					T2	-25~85ºC
					T3	-30~125ºC
					T4	-45~150ºC
						Code	Power supply
						D3	24VDC(9-32)VDC
							Code	Process connection
							M1	M20x1.5
							M2	M14 x1.5
							M3	M10x1
							G1	G1/4
							G2	G1/2
							N1	1/4NPT
							N2	1/2NPT
							F0	Other
								Code	Electrical connection
								W2	DIN43650
									Code	Other
									P2	Non-cavity diaphragm

CHANGSHA TAIHE ELECTRONIC EQUIPMENT Co., Ltd is specialized in manufacturing and selling pressure sensors, transmitters, automation instrument and system.

Based on Central South University (CSU), a very famous University in China, and making full use of its unique resources, TAIHE has became a powerful economic entity with the integrated of research, production, sales and service. We have a professional and experienced team, and most of them have been engaged in sensor and control system for many years.

We can provide different kinds of pressure, level, temperature sensors, transmitters etc. And we devote to the development of sensor and transmitter products. With the excellent performance and reliable quality, our sensors and transmitters have been widely applied to mining, petroleum, smelting, chemical industries and other fields. And we are also able to satisfy the customized specification and designs according to specified requirements of clients.

Adhering to value of "Customer First, Innovation, Cooperation", we keep improving our products and service.

Looking forward to be your best sensor and transmitter supplier!
