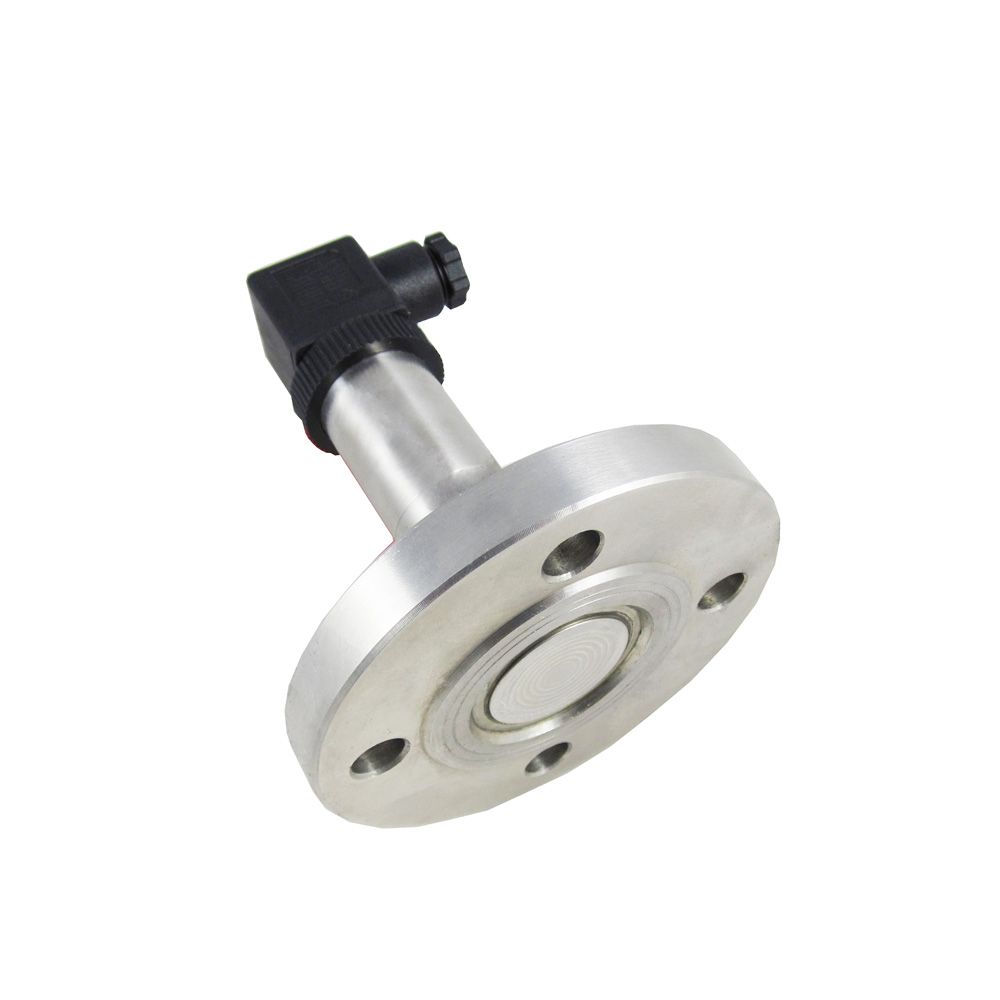

Flush Diaphragm Pressure Transmitter with Flange Dn25 Dn50 Dn80 (PCM450)

Name: Flush Diaphragm Pressure Transmitter with Flange Dn25 Dn50 Dn80 (PCM450)
Brand: all-electronics-online.com
SKU: 731817092
Availability: InStock
Rating: 4.7 (37 reviews)

Price:	Negotiable/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCM450
Pressure Reference:	Gauge, Absolute, Sealed Gauge
Output:	4-20mA, 4-20mA+Hart
Supply:	24VDC
Compensated Temp.:	-10ºC -70ºC, -20ºC -85ºC
Operating Temp.:	-40ºC -125ºC
Temp. Drift:	±1.5%F.S.Max. (-20ºC -85ºC)
Housing Material:	304
Sensor Material:	316L
Oil Filling:	Silicon Oil, M20
Flange:	Dn25, Dn50, Dn80
Accuracy Grade:	±0.5%F.S.
Pressure Range:	0~10kpa...10MPa

Product Description

Flange DN25, DN50 and DN80 connection available
4 to 20mA 2-wire output, others available
CE certificate

PCM450 meets the sanitary standard for pressure and level measurement in food, pharmaceutical, cosmetic, and beverage industries. It is designed for "clean in place"(CIP), and "sterilize in place"(SIP) maintenance.

Caution

1. Please do not touch the diaphragm by finger and other hard objects, or it may be damaged.
2. The sensor filled with olive oil is for sanitary application. It cannot work when the temperature is lower than 0ºC, because the olive oil will freeze lower than 0ºC.

Pressure range
Pressure range	10kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa
Pressure reference	Gauge pressure \| Absolute pressure \| Sealed gauge pressure
Overpressure	200%F.S.
Output signal
Output	4-20mA \| 4-20mA+HART
Specification
Accuracy (linearity, repeatability and hysteresis)	±0.5%F.S. (Calibrated in vertical mounting position)
Supply	24VDC
Compensated temp.	-10ºC -70ºC \| -20ºC -85ºC
Operating Temp.	-40ºC -125ºC
Medium Temp.	-40ºC -125ºC
Storage Temp.	-40ºC -125ºC
Zero temp. coefficient	±1.5%F.S.max. (-20ºC -85ºC)
Span temp. coefficient	±1.5%F.S.max. (-20ºC -85ºC)
Pressure connection	See "how to order"
Protection	IP65
Housing material	Stainless steel 304 (316L for the sensor inside)
Long-term stability	≤0.2%F.S./year
Oil filling	Silicon oil \| M20
Flange	DN25 \| DN50 \| DN80
Weight	1000g (approx.)

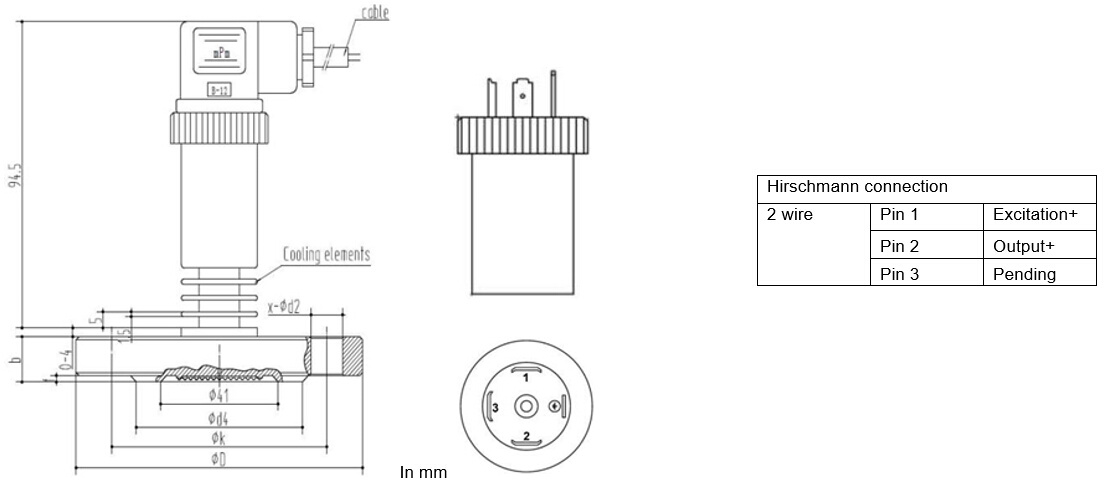

Electrical connection (DIN 43650)

Flange Connection

DN in mm	Pressure	D	b	k	d2	n	Raised face
DN in mm	Pressure	D	b	k	d2	n	f	d4
DN25	1~4MPa	115	18	85	14	4	2	68
DN25	6~10MPa	140	24	100	18	4	2	68
DN50	1~4MPa	165	20	125	18	4	2	102
	6MPa	180	26	135	22	4	2	102
	10MPa	195	28	145	26	4	2	102
	16MPa	195	30	145	26	4	2	102
	25MPa	200	38	150	26	8	2	102

How to order
