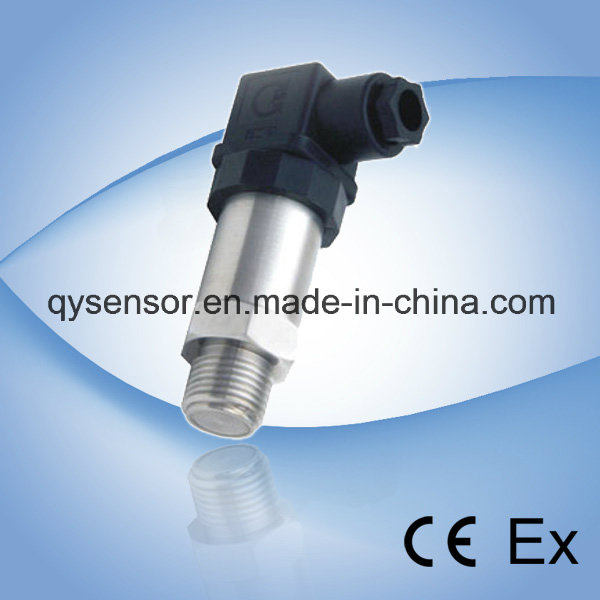

Flush Membrane Smart Pressure Transmitter (QZP-S4) with Measuring Range (-20~0KPa, 0~5KPa. 0~500KPa. 0~20 MPa)

Name: Flush Membrane Smart Pressure Transmitter (QZP-S4) with Measuring Range (-20~0KPa, 0~5KPa. 0~500KPa. 0~20 MPa)
Brand: all-electronics-online.com
SKU: 773693335
Availability: InStock
Rating: 4.6 (66 reviews)

Price:	US $ 115/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QZP-S4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measure Range:	-20~0kpa, 0~5kpa^.0~500kpa^.0~20 MPa
Accuracy:	±0.2%Fs ±0.1%Fs
Output Signal:	4~20mA;0~10V, 1~5V, 0~5V, 0~20mA
Power Supply:	12~36(Standard 24VDC)
Housing Material:	Stainless Steel
Material Of Diaphragm:	316L Stainless Steel
Application:	Measuring Gas and Liquid
Measuring Medium:	Gas and Liquid

Product Description

Flush Membrane Smart Pressure Transmitter (QZP-S4) with Measuring Range (-20~0KPa, 0~5KPa.0~500KPa.0~20 MPa)

QZP-S4 smart pressure transmitters are consist of 316L isolation membrane pressure transmitter,

high-powered MPU, integrated circuit and high-stability constant current.

It can correct the linearity and compensate temperature drift. Also can adjust the data of transmitter

by hand-helder, achieve accurate data transfer, local equipment diagnoses and long-distance

bidirectional communication. With characteristics of high precision, good stability, good reliability and easy handle.

Model: QZP-S4

Range: -20~0KPa, 0~5KPa.0~500KPa.0~20 MPa

Accuracy: ±0.2%FS ±0.1%FS

Feature:

1. flush membrane smart type pressure transmitters.

2. Can choose with HART AGREEMENT.

3.Have the characteristics of high precision, good stability, long working life and high reliability.

4.Small in size, light in weight. easy to installation.

5.Pressure connection and Electrical connection are able to chosen by customers.

6.Suitable for the high accuracy measuring and produce of medical treatment, food equipment.

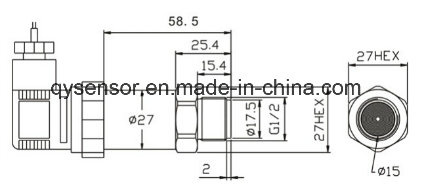

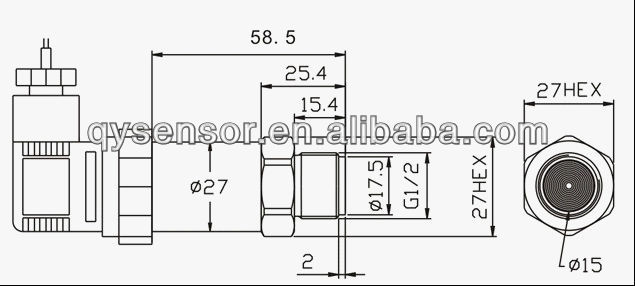

Dimensions: (unit: mm)

Technical Specifications

Measuring media		gases or liquids which are compatible to 316L stainless steel
Measuring range		-20~0KPa, 0~5KPa.0~500KPa.0~20MPa
Pressure type		Gauge(G),Absolute(A),Sealed(S)
Signal output	Analog	transmitter, mA (2 wires)	4~20mA
		transmitter, Vdc (3 wires)	0~10V, 1~5V,0~5V,0~20mA
	Digital	Can bi-dinrectionally communication in accordance with HART AGREENMENT
Combined accuracy		%FS	±0.2(standard), ±0.1
Long stability		≤±0.2%FS/year
Power supply		Vdc	12~36, (24V standard)
Compensated temp.		ºC	-10~+60
Operating temp.		ºC	-30~+85
Temperature coefficient of ZERO		%FS/10ºC	≤±0.2
Temperature coefficient of SPAN		%FS/10ºC	≤±0.2
Insulation resistance		MΩ	>500 @ 100Vdc
Electrical connection		DIN43650,aviation connector,directly lead(selectable)
Material		stainless steel
Pressure connection		G1/2 or M20x1.5
Environment protection		IP	65
Safe overload		%FS	200

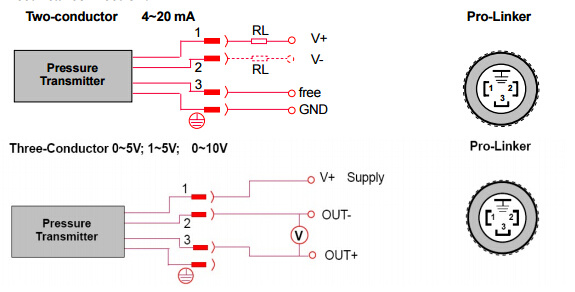

Electrical connection:

Ordering code: model- range & type-rated output-accuracy-pressure connection-electrical connection-defend grade-the other requests.

Example: QZP-S4-0/300KPaG-4/20mA-0.2%FS-M20x1.5-DIN43650-IP65-***

Other similar products of Smart pressure transmitter

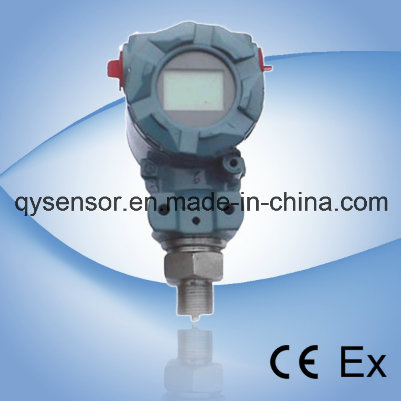

Smart pressure transmitter QZP-S8
