| Prod Model: |
FN5-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
12kv |
| Rated Frequency: |
50Hz |
| Rated Current: |
400A, 630A |
| Customized Design: |
Yes |
| Rated Short-Circuit Duration: |
4s |
| Rated Short-Circuit Clsoing Current: |
50ka |
| Auxiliary Circle Rated Voltage: |
AC,DC 220V/110V |
| Type: |
High-voltage |
| Structure: |
Three-column Disconnector |
| Installation: |
Indoor High-voltage |
| Series: |
Three |
| Switching Mode: |
Single Throw-in |
| Operation: |
Electric, Manual Type |
| Certification: |
CCC |
| Brand: |
People |
Product Description
Application

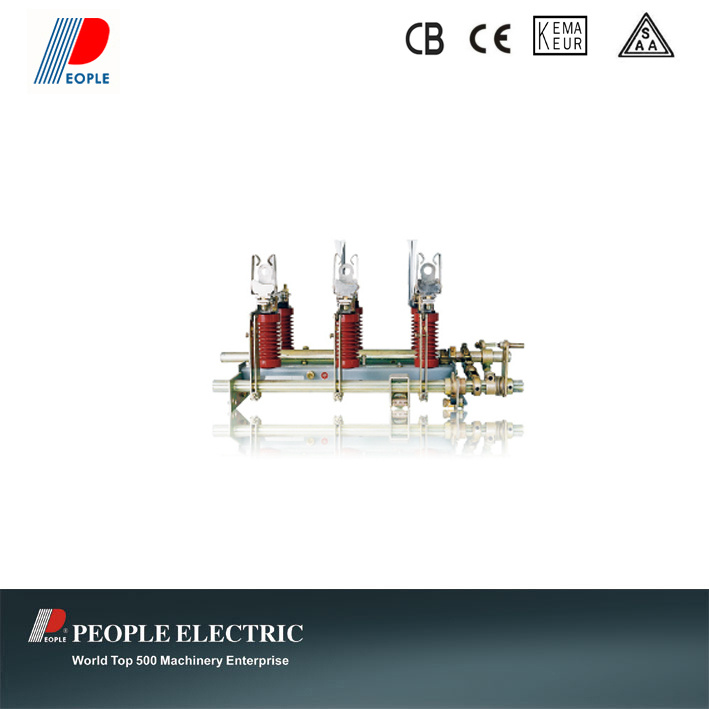

FN5-12 series high voltage AC Vacuum load switch is applied in the three-phase, AC50Hz, rated voltage up to 12KV electric supplying network. Mainly applied in three-phase RMU net pr ending electric-supply city distribution station and industrial electrical equipments, with load-control and short-circuit protection.
The load switch can match CS6-1 series manual operation mechanism or CJ electrica motor operation mechanism.
Specification
| Rated Voltage | 12KV |
| Rated Current | 400A,630A |
| Rate Frequecy | 50Hz |
| Power frequency withstand voltage(1min) | arc extinguishing chamber fracture: 30KV
phase, to earth: 42KV; isolation fracture: 48KV |
| lightning impluse withstand voltage(peak) | Vacuum arc-extinguishing chamber fracture: 60KV
phase, to earth: 75KV; fracture: 85KV |
| Rated short-time withstand current(Moving reliable current) | 20KA |
| Rated short-circuit duration | 4s |
| Rated peak withstand current(Moving reliable current) | 50KA |
| 5% rated active power breaking current | 31.5A |
| Rated cable charging current | 10A |
| Rated active power load breaking current | 630A |
| Rated close-loop breaking current | 630A |
| Rated cable breaking no-load transformer capacity | 1600kVA |
| Rated short-circuit clsoing current | 50kA |
| Earthing switch rated short-time withstand current(thermal reliable current) | 20kA |
| Earthing switch rated short-circuit duration | 2s |
| Earthing switch thermal reliable current | 20kA |
| Earthing switch rated peak withstand current(Moving reliable current) | 50kA |
| Auxiliary circle rated voltage | AC,DC 220V/110V |
| Mechanism life | 10000 times |
| Rated active power load current breaking times | >100 times |
| Vacuum extingushing chamber conact admitted wearing thickness | 2mm |
| Breaking and closing operation moment | 90(180) N.m, 100(200) N.m |
Packing and shipping-- Wooden box for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
Our Service-- We have our own factory, professional manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Warmly welcome to visit our factory. Welcome customer or your agent to inspect before order or lading.
