Foil Strain Gauge Non-Cavity Flat Diaphragm Pressure Transmitter
| Price: |
Negotiable/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
PCM340 |
| Pressure Reference: |
Gauge Pressure |
| Supply: |
24V |
| Output Signal: |
4~20mA, 0~5V, 1~5V, 0~10V |
| Operating Temp.: |
-40ºC~125ºC |
| Compensated Temp.: |
0ºC~70ºC, -20ºC~85ºC |
| Temp. Drift: |
1.5%Fs(-20ºC~85ºC) |
| Load Capacity: |
≥[(Supply Voltage-6.5V)/0.02A]Ω |
| Mechanical Life: |
≥5000000 Pressure Cycles |
| Housing Material: |
304 |
| Medium Compatibility: |
Liquids or Gases Compatible with Ss 17-4pH |
| Pressure Range: |
0~5MPa…150MPa |
| Accuracy Grade: |
0.5%Fs |
Product Description

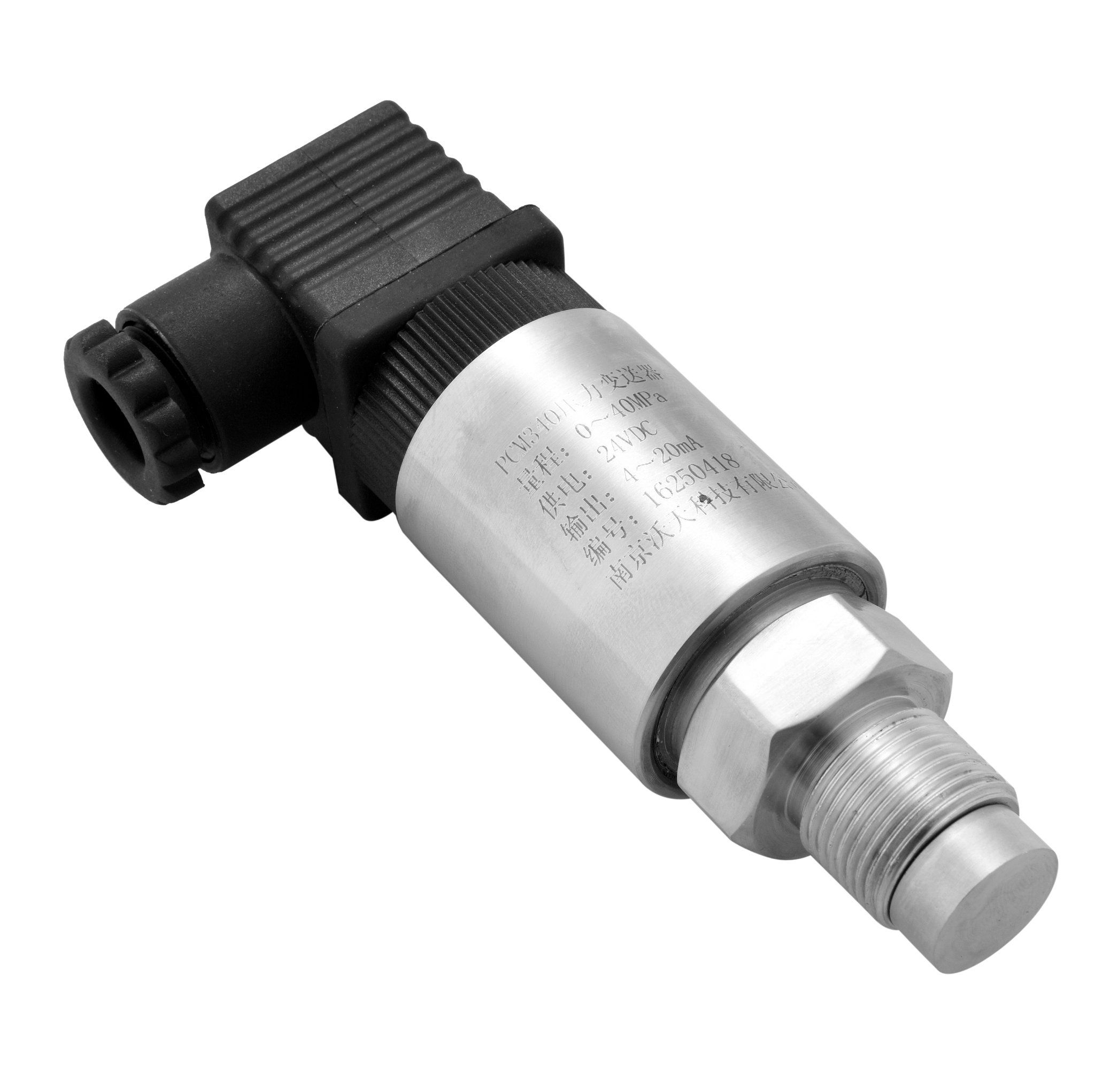

Overview PCM340 non-cavity flush pressure transmitter adopts high-precision foil strain gauge, equipped with a variety of characteristic amplifying circuits, such as anti-interference type, high-temperature resistant type, intrinsically safe explosion-proof type, etc., making the product suitable for various working environments. With non-cavity structure, PCM340 is particularly suitable for measuring fluids with high viscosity, mud, cement, crude oil and other granular fluids.FeaturesHigh-precision foil strain gaugeNon-cavity measurement diaphragmWear resistanceWide operating temperature rangeLarge DIN connector, easy installation and high reliabilityOptimized circuit and installation structure improve the anti-vibration ability and stabilityApplicationsHeavy equipment support
High pressure industry
High load industry
High impact fields
Frequent overloaded areas Performance parameters
|
| Pressure range | 0~5MPa…150MPa |
| Pressure reference | Gauge pressure |
| Supply | 24V |
| Output signal | 4~20mA, 0~5V, 1~5V, 0~10V |
| Accuracy | 0.5%FS |
| Operating temp. | -40ºC~125ºC |
| Compensated temp. | 0ºC~70ºC, -20ºC~85ºC |
| Storage temp. | -40ºC~125ºC |
| Zero temp. coefficient | 1.5%FS(-20ºC~85ºC) |
| Span temp. coefficient | 1.5%FS(-20ºC~85ºC) |
| Overpressure | 135%FS(pressure range≤15MPa); 120%FS(pressure range≥15MPa) |
| Burst pressure | 200%FS(pressure range≤10MPa); 150%FS(pressure range≥10MPa) |
| Load capacity | ≥[(supply voltage-6.5V)/0.02A]Ω |
| Mechanical life | ≥5000000 pressure cycles |
| Insulation resistance | ≥500MΩ/1000VDC |
| Long term stability | ±0.25%FS/Year |
| Housing material | 304 |
| Medium compatibility | Liquids or gases compatible with stainless steel 17-4PH |
| Protection | IP65 |

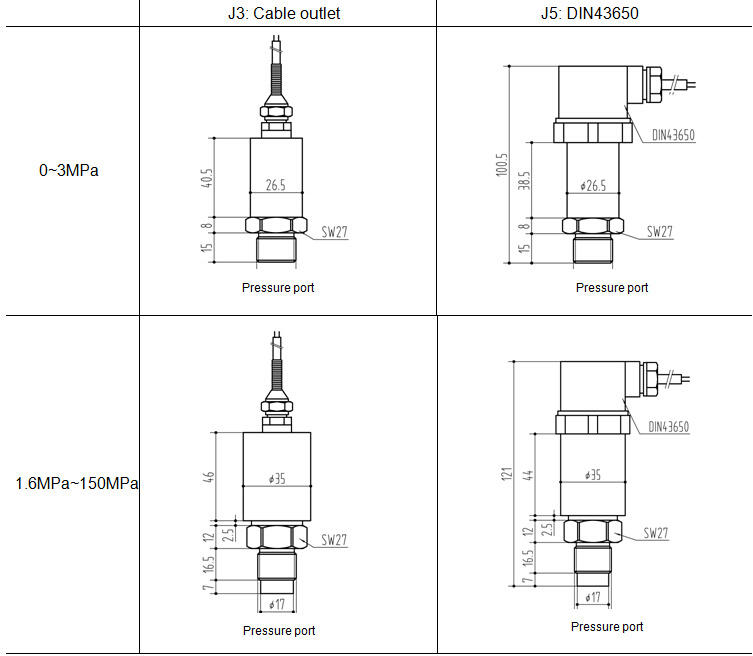

| Structure & electrical connection |
Current connection
(2 wire) | Pin 1: Supply+
Pin 2: Current output | Pin 1: Supply+
Pin 2: Current output |
Voltage connection
(3 wire) | Pin 1: Supply+
Pin 2: Ground
Pin 3: Voltage output | Pin 1: Supply+
Pin 2: Ground
Pin 3: Voltage output |
Pressure range selection
|
| Code | Pressure range | Code | Pressure range |
| 6M | 0~6MPa | 40M | 0~40MPa |
| 10M | 0~10MPa | 60M | 0~60MPa |
| 16M | 0~16MPa | 100M | 0~100MPa |
| 25M | 0~25MPa | | |

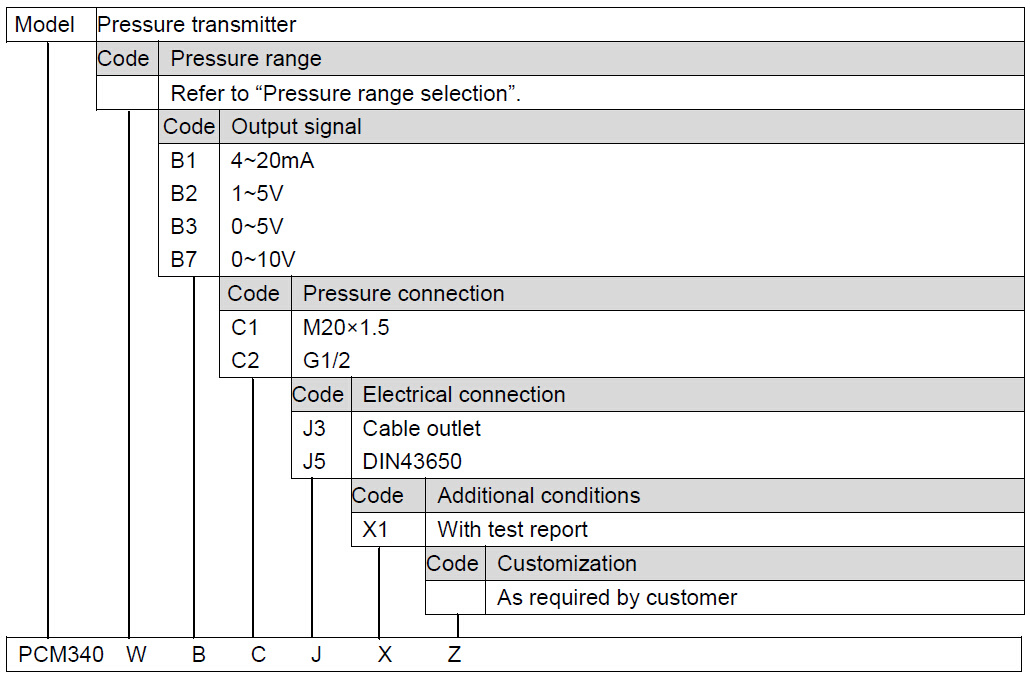

Example: PCM340(W18)-V1-B2-C2-J3
The model is PCM340. The pressure range is 0~60MPa. The output signal is 1~5V. The pressure connection is G1/2. The electrical connection is cable outlet.Ordering tips:(1) The standard cable is 1.5 meters, exceeding which is charged according to the length.(2) Please pay attention to the compatibility of the measured media and the product contacting part.(3) For special requirements on the product appearance and performance parameters, customization is available.
