Foil Transformer Winding
| Price: |
US $ 10000-80000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
BRJ(D1)-700--BRJ(D2)-1600 |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Multi-winding Transformer |
Product Description

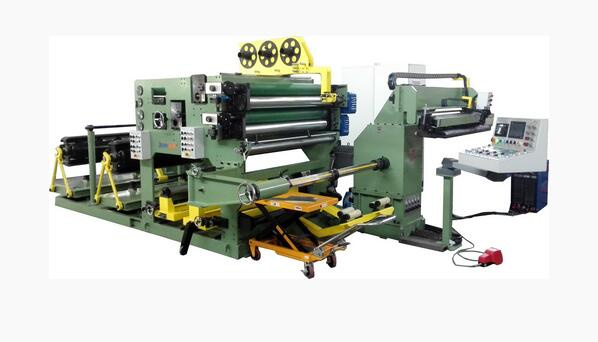

Foil Winding for transformer winding
Application:
Foil Winding Machine is the special equipment for manufacturing low voltage coils of
transformer, with one or two foils made of copper or aluminum strips.
Features: Ø The tensioning system includes roller tensioning and dec-oiler tensioning. Both tension forces are active force generated by motor, which is constant and easy to control compare to the traditional passive tension force. The tensioning roller provides more than 80% of the tension force. The tensioning roller frame can move horizontally for regulating the offset.Ø The tensioning roller is aligned in the front ( 1 meter from the winding shaft), the frame of tensioning roller is put on a high accuracy linear slide table, and moves horizontally according to the feedback of offset regulating system. This device inherits all the advantages of the eccentric tensioning force, and nevertheless has further advantages: a. Shorter ending; b. Shorter offset regulating response route ensures the high dynamic responsiveness, and ensures good alignment of the first several turns.Ø The shearing unit adopts the cylinder pressing disk cutting structure, and a video capturing system is equipped for the operator to locates the exact position of cutting.Ø Offset regulating system adopts the analog photoelectric sensor and contact less edge detecting device. De-coiler offset regulating and Tensioning Roller offset regulating are included, each has independent offset regulating system, which ensures the quality of foil alignment.Ø Optimized welding system structure and location, makes the welding can be done with minimum foil backward movement.Ø Both Left winding and right winding can be done on the same machine.Ø Tension force of foil , tension force of paper and the winding speed and other parameters can be set or monitored on screen.Ø Fully motorized design, no mechanical fraction parts, no hydraulic parts. High efficiency with less breakdown.

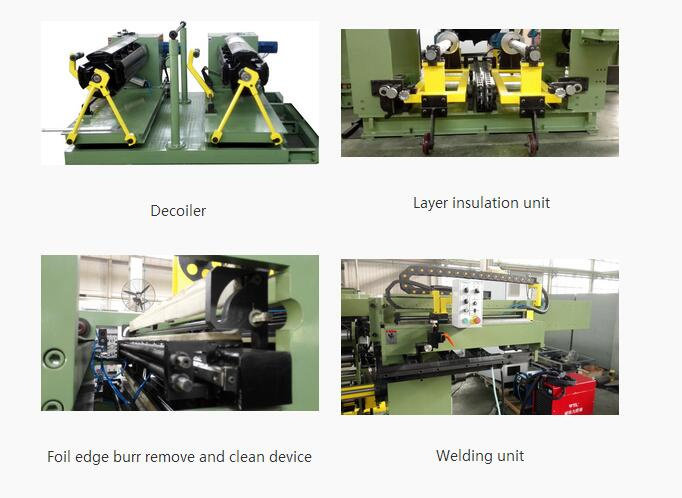

Composition:1. De-coiler of foil coil and foil offset regulating system
2. Foil edge burr remover and clean device
3. Foil feeding mechanism
4. Foil offset regulating sensing system
5. Electrical tensioning device
6. Foil sheet shearing unit
7. De-coiler for layer insulation
8. Layer insulation edge cutting mechanism
9. Welding unit (Including a TIG welder)
10. Foil winding system
11. End insulation strip wrapping system
12. Discharge trolley
13. Wound coil pressing device
14. Electrical control system
