| Prod Model: |
WP435C |
| Thread: |
Diaphragm G1/2, M20*1.5, |
| Type: |
Diaphragm Pressure Transmitter |
| Measuring Medium: |
Steam, Water, Oil, Air |
| Accuracy Grade: |
0.2%Fs, 0.5%Fs |
| Pressure Range: |
-100kpa~ 0-1kpa~10MPa |
| IP Rating: |
IP55, IP65, IP67, IP68 |
| Certification: |
Ce, ISO9001, RoHS |
Product Description

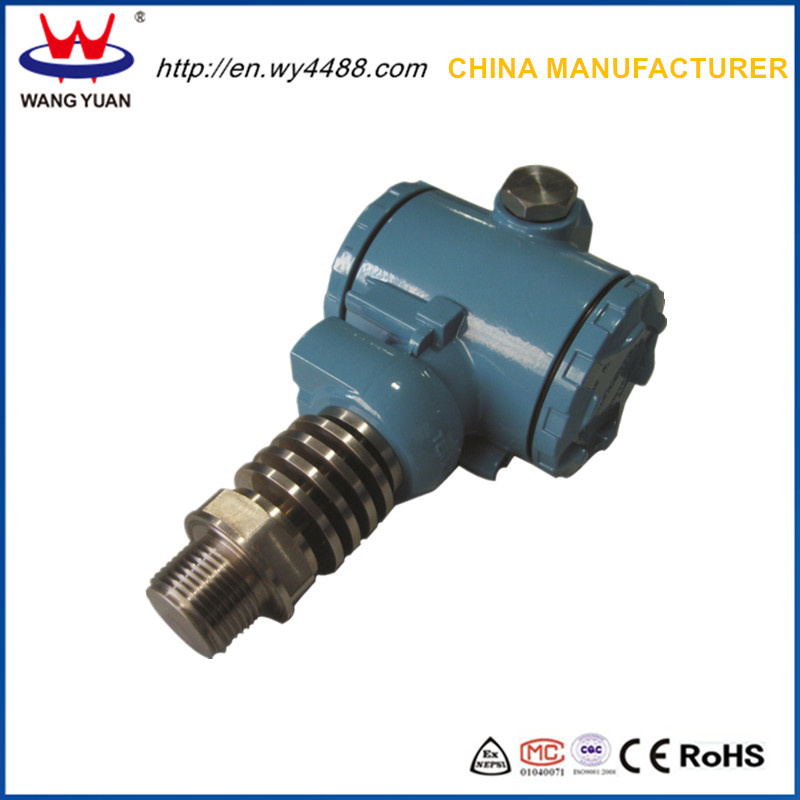

Food and ECO Flat diaphragm Pressure transmitter
Model: WP435C
Application:
This Food and ECO Flat diaphragm Pressure transmitter can be used to measure and control PRESSURE in:
- Food & Beverage plants
- Hydraulic/ Pneumatics
- Industrial test and control
- Light industry, Metallurgy
- Mechanical engineering
- Building automation,
- other automatic control industries
Description:
1. WP435C Food and ECO Flat diaphragm Pressure transmitter is special designed for food & beverage, beer, sugar and other sanitary application, where the mearused medium easy to clog, sanitary, sterile, easy to clean environment.
2. This food pressure transmitter can work stably for a long time under -40~150ºC temperature work environment.
3. Laser welding technology is used between sensor and stainless steel house, without pressure cavity.
4. Pressure diaphragm is in front of the thread, transducer is in the back of heat sink, high stability edible silicon oil was used as pressure transmission medium in the middle part, thereby ensuring that the effect of low temperature in food fermentation and high temperature during clean the tank on transmitter.
5. Gauge pressure transmitter, using vent cable and putting molecular sieve on both ends of the cable, so that avoiding the performance of transmitter affected by condensation and dewfall.
6. With the feature of high working frequency, this type sanitary presusre transmitters also are fit for dynamic measurement.
Features of Flat diaphragm pressure transmitter:
* Various signal outputs
* HART protocol is available
* High precision 0.2%FS, 0.5%FS
* Operating temperature:-40~ 150ºC
* 4bits or 5bits LCD intelligent display
* Pressure range: -100kPa~ 0-20kPa~20MPa
* Best choice for Sanitary, sterile, easy cleaning applications
* 100% Linear meter or 3 1/2 LCD or LED digital indicator is configurable
* Pressure connection type: Flush diaphragm, corrugated diaphragm, clamp mounting
* Explosion-proof type: Ex iaIICT6- Intrinsically safe comply with requirement of GB3836·4-83;
Ex dIIBT4- Flameproof comply with requirements of GB3836·2-83.
Specification:
Name | WP435C Food and ECO Flat diaphragm Pressure transmitter |
Pressure range | -100kPa~ 0-20kPa~20MPa |
Pressure type | Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Negative pressure (N). |
Accuracy | 0.2%FS, 0.5%FS |
Compensation temperature | -10~70ºC |
Operation temperature | -40~150ºC (Heatsink construct) |
Output signal | 4-20mA;4-20mA with HART protocol; 0-10mA; 0-20mA; |
Power supply | 24V DC; 220VAC,50Hz |
Electrical connection | Cable, Terminal block, DIN |
Pressure connection | M20*1.5, Flush/Corrugation diaphragm or Φ50.6 Clamp mounting, optional. |
Overload pressure | 150%FS |
Stability | 0.5%FS/ year |
Medium material | Stainless steel 304 or 316L |
Note: More technical parameters, please feel free to contact us. |

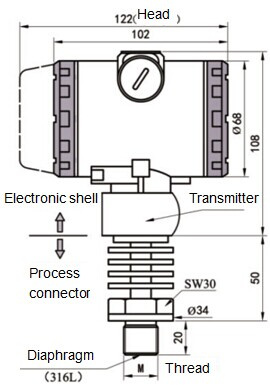

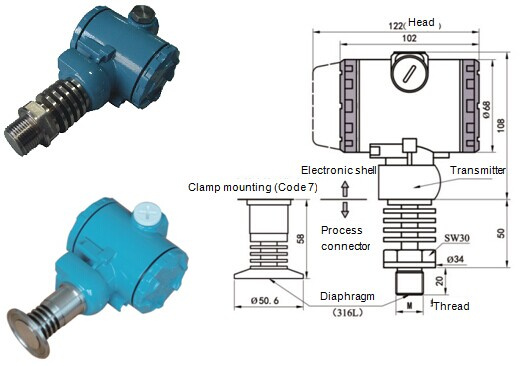

Dimensions of this Flat diaphragm Pressure transmitter :
WP435C
Our service:
1. We have rich experience of OEM, factory can manufacture according to your request.
2. We could also send the goods which is labelling your brand name to your customer's warehouse directly.
3. We can offer you neutral packing without our logo and company information.
4. Warranty: We offer 12 months warranty for all of our products from shipping date;
5. You will enjoy free repair service for failures found within the warranty, if there are any problems of manufacturing quality;
6. We provide paid repair services for instrumentation damages beyond the warranty period or not arising from manufacturing quality problem.
Certificate: RoHS Patent
Certificate: Explosion proof Certificate: Explosion proof
