for Heating and Air-Conditioning Use Instructions Room Temperature Thermostat

Name: for Heating and Air-Conditioning Use Instructions Room Temperature Thermostat
Brand: all-electronics-online.com
SKU: 794268005
Availability: InStock
Rating: 5 (48 reviews)

Price:	US $ 2-8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SP7000
Application:	Control of Central Air Conditioner or Heating Appl
Temperature Control Range:	10°c~30°c
Work Voltage:	220V 50Hz
Max Load:	10A
Sensor Type:	Gas Filled Sylphon with on/off, Without LED Indic

Product Description

for heating and air-conditioning use instructions room temperature thermostat

Products Features:

1. Use instructions Room thermostat:

Bimetallic room thermostat for heating and air-conditioning installations Thermal, electrical and mechanical

features Breaking capacity on opening contact, 10A-250V A.C.(ohmic load) Differential: 0.5K.

2. Temperature′s scale adjustment:

After almost two days from the installation,to obtain a precise scale adjustment, measure the room temperature

with a reference thermometer,placed aside the thermostat,holding the shagreened part of the knob,turn the index

with a coin, to reach the same value of the thermometer,We suggest to install the equipment at about1.5mt from

the floor and far from any heat source.

3. Pattern:

• Base

• Cover

• Cover screw

• Knob Lockpins,The lock pins for scale limitation

• are to be derached from the base of the thermostat.They are Located on the fixing holes.

• Index:The fixing of the room thermostat can be done directly on the wall by screws and nags.

B1-With N.C.contacr.

B2-With N.C.contact and ON-OFFswitch

B3-With SPDT contact(change-over)

B4-With change-over contact(SPDT)and ON-OFF switch B7-With normally closed contact on"Winter"

and normally open contact on"Summer"plus"Summer-Winter"selector-switch

4. Important:

• Accelerating resistance with voitage to 220-250V a.c.

• This thermostat is provided with an accelerating resistance which mustbe absolutely connected

in order to obtain the regulation's performances.

• The terminal 4has thus to be connected to the neutral according to the diagram shown on the cover.

• This connection allows also the working of the pilot lamp which indicates the operation of the heating.

Technical Data

application:	control of central air conditioner or heating appliance for temperature
temperature control range:	10°C~30°C
work voltage:	220V~/50Hz
max load:	10A
sensor type:	gas filled sylphon with on/off, without LED indicator for power

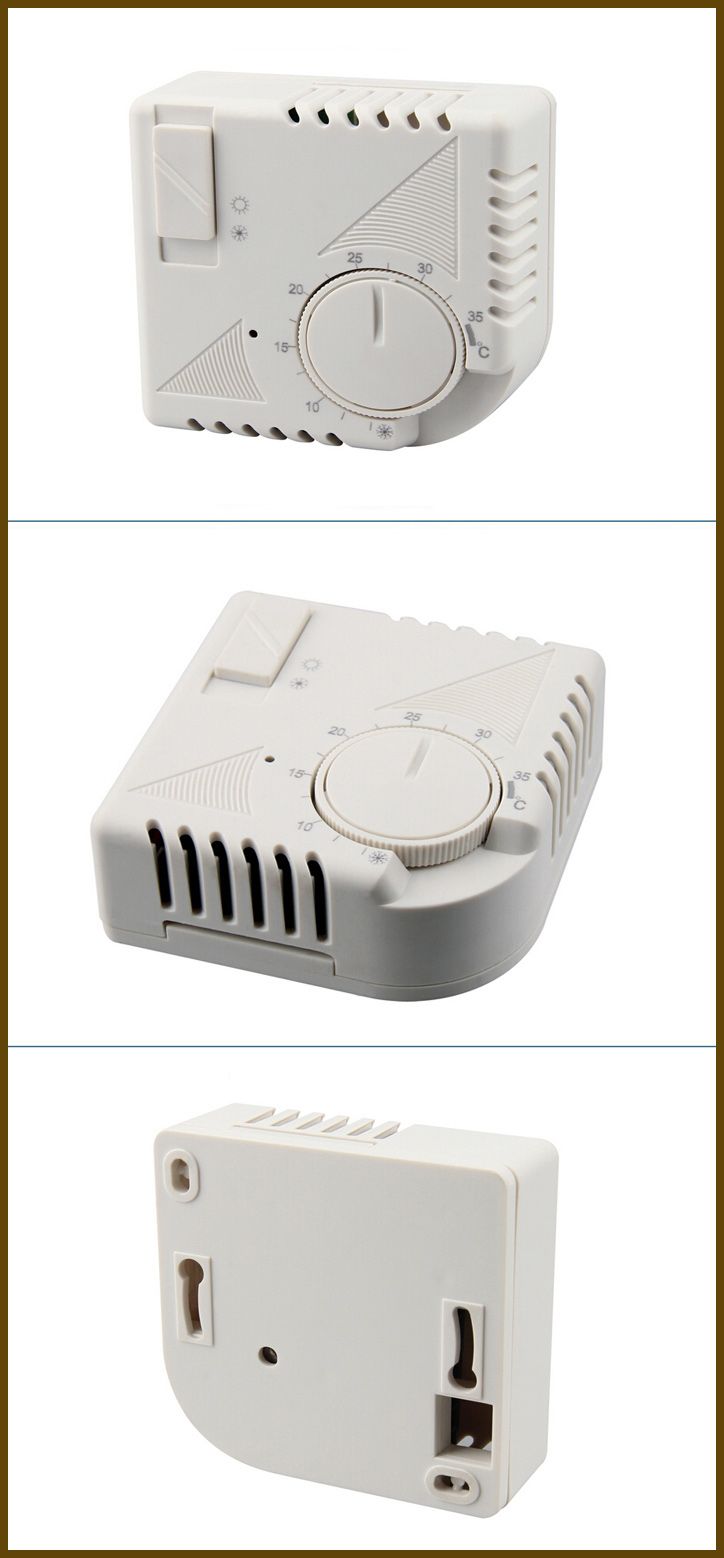

Product show

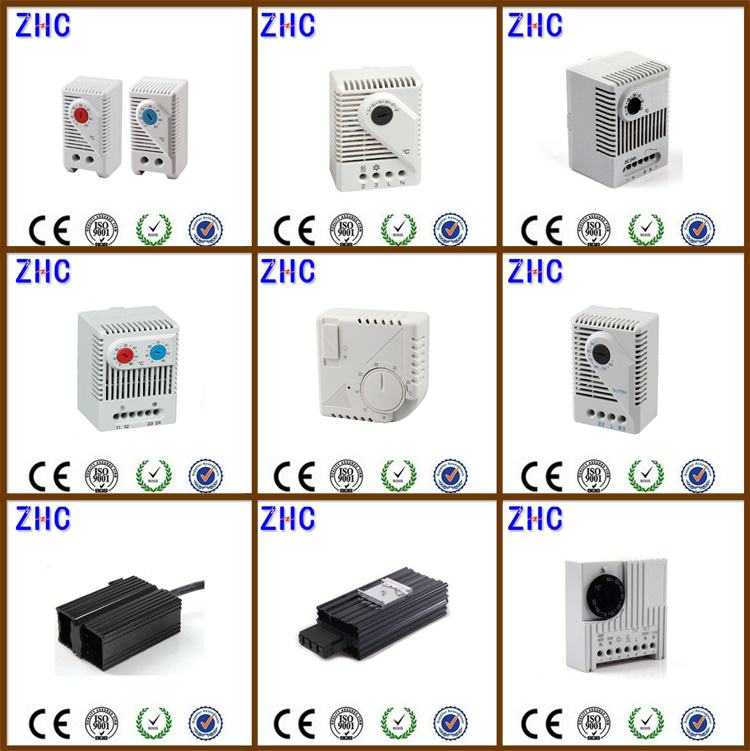

Similar product
