for LCD AC Power Supply Adapter DC 12 Volt 6 AMP (12V 6A)
| Price: |
US $ 4.44/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
YLCH12 |
| Nominal Input Voltage: |
AC 100V~240V |
| Output Voltage: |
12V |
| Output Current: |
6A |
| Output Power: |
72W |
| DC Connector Size: |
5.5*2.5mm |
| Line Regulation: |
2% |
| Load Regulation: |
5% |
| Certificates: |
Ce, RoHS, Reach, FCC, ERP, CB, GS, TUV, UL, cUL, C |
| Over Load Protection: |
Short Circuit Protection |
| High-Pot Test: |
3kv |
| Usage: |
Laptop |
| Output Type: |
DC |
| Connection: |
Desktop |
| Certification: |
Ce FCC |
| Internal Structure: |
PCB |
| Brand: |
Yds |
Product Description

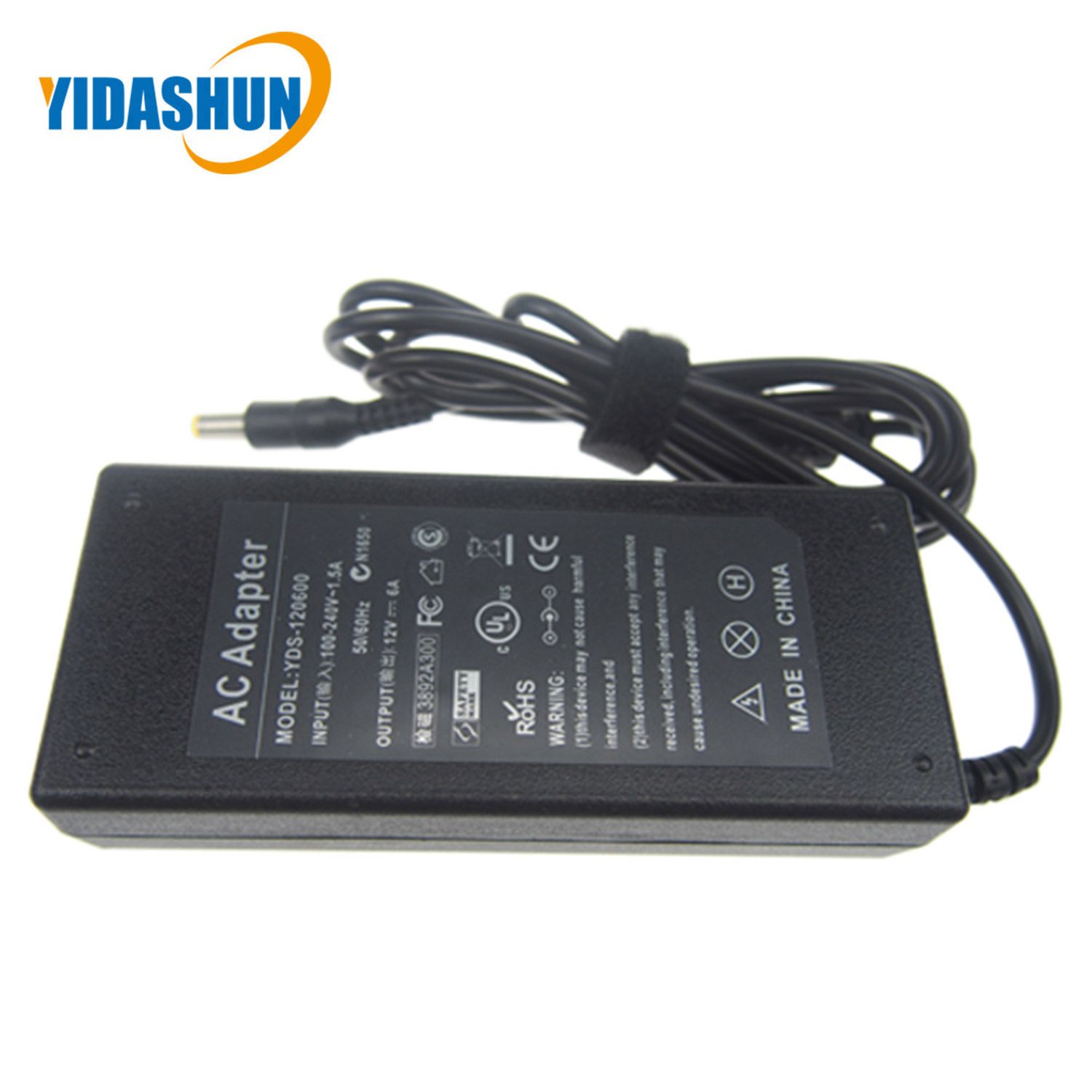

For LCD AC Power Supply Adapter DC 12 Volt 6 Amp (12V 6A)
Feature
1.Brand new components
2. Housing is made by special fireproofing ABS+ PC plastic
3.Sufficient output power
4.Small output voltage ripple
5.High accuracy of output voltage
6.Smart device surge protection ,OVP ,OCP ,SCP
7.Strong built for heavy duty and long usage performance
8.Triple tests before packing ensure the reliable quality
9.More than 10 years experienced factory
10.100% full load burning test
11.Quality: High Efficiency. High Reliability. Low Ripple & Noise
12.Condition: 100% Brand New (2 Years Warranty)
13.Pass CE ,FCC ,ROHS, ERP Certificates.ISO9001:2000 International Quality Management Systems. Reliable quality, Defect rate can be controlled within 0.3%.
14.Production ability : More than 300,000 pcs batteries one month
Specification
| Specifications |
| Model No. | YLCH013 |
| AC Input |
| Nominal Input Voltage | AC 100V~240V |
| Input Voltage Range | AC 95V~265V |
| Input Frequency | 50/60Hz |
| DC Output |
| Output Voltage | 12V |
| Output Current | 6A |
| Output Power | 72W |
| DC Connector Size | 5.5*2.5mm |
| Line Regulation | 2% |
| Load Regulation | 5% |
| Ripple Noise | 180 Mvp-p |
| Efficiency | >85% |
| Output Cable Standard | 0.5mm2 Pure Copper |
| Output Cable Length | 1.5m normally or customized requirement |
| Environment |
| Operating Temperature | 0°C ~40°C |
| Operating Humidity | 5%~95%RH |
| Storage Temperature | -20°C ~85°C |
| Storage Humidity | 5%~95%RH |
| Protection |
| Over Load Protection | Short Circuit Protection |
| Over Current Protection | Over Temperature Protection |
| Certificates |
| CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE |
| Dimensions |
| Adapter Size | 12.5*4.8*3.0CM |
| Adapter Weight | 254G |
| Inner Box Size | 19*13*4.7CM |
| Inner Box Weight | 40G |
| PCS/CTN | 50PCS |
| Outer Carton Size | 48.5*32*40CM |
| Outer Carton Weight | 860G |
| GW/CTN | 15560G |
| Package |
| Inner Box | Normally neutral brown box or customized requirement |
| Outer Carton | Normally neutral standard carton or customized requirement |
| Warranty |
| Guarantee | 30 days |
| Warranty | 2 years |
| Terms and Conditions |
| MOQ | 100PCS for mixed order |
| Payment Terms | T/T, L/C, PayPal, western union |
| Delivery Time | 3-5 days |
| Manufacturing Process |
| 1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping |
| Test Procedures |
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test
|
Why Buy For LCD AC Power Supply Adapter DC 12 Volt 6 Amp (12V 6A) here? We are dedicated to offer you the highest quality products with reasonable prices. All of our products are directly produced from our own facotry of 10 years expierence. there are 300 workers and 10 automatic production lines in our factory. we have passed strict quality assurance procedures to achieve international standards . In addition, because of our sophisticated and vertically integrated supply chain system and streamlined order fulfillment system, we are able to offer high quality products with amazing low price and excellent customer service.we do 100% 4 hours burn-in test for each adapter before package.
We can offer short lead time for you, we have large quantity PCB in stock for normal items and have stock for hot sale finished goods.
Package include:
1 x For LCD AC Power Supply Adapter DC 12 Volt 6 Amp (12V 6A)
1 x Wire Cord to Wall Outlet
NOTE:There are EU,UK,AU,US Power Cords in our factory.we will send it to you according to the outlet standard of your country.
Warranty:
30 Days Money Back Promised
60 Days Free Exchange With Paid Return Label
360 Days Anytime Worry-Free Warranty!
Bid With Confidence!!! Nobody Beats Our Customer Services!!!
SHENZHEN YIDASHUN TECHNOLOGY Co., Ltd. Shenzhen Yidashun Technology Co., Ltd. Is a high-tech enterprise approved by government, dedicated to the R&D, manufacture and sales of laptop adapters, other AC/DC adapters, universal laptop adapters, swiching power supply and waterproof LED driver. The company is founded in 2007, it has a R&D team with 10 engineers, who can provide the whole solution of power adapters and power supplies for clients; Excellent sales team export our products to European and American countries, Middle East countries, HK, Southeast Asia countries and Oceania. The company is located in shenzhen, there are more than 300 staffs, owning more than 5, 000 square meters of development and production base.
Currently we start new projects selfie stick monopod, USB patch board and USB socket, we make our own special mould and our own color box to make them different in the market! And we offer cost prices to expand the market and support our each client! Welcome to inquiry!
QC Team: A QC team with more than 20 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
Cercificate: CE, RoHS, REACH, FCC, ERP, CB, GS, TUV, UL, cUL, CCC, PSE
WARRENTY
♥ Normal Production according to eth sample that confirmed by customers or customer's instruction. So please do give us right and confirmed instruction as well as check the sample carefully before you confirm.
♥ Should you need any assistance with product problems or for warranty claims please feel free to contact us. We are here 7 days a week to help. You will receive a prompt reply from us.
♥ If the product specification above is some different from what you required actually, pls kindly let us know the details, we will be pleased to re-offer you as per your requirement asps.
