Fork Level Switch (CX-FLS-LY)

Prod Model:	CX-FLS-LY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium:	Ash Water,Grain, Oil
Fork Insertion Length:	Optional
Temperature:	-20-+60c
Pressure:	10 Bar
Power Supply:	24V
Output:	Relay
Electronic Parts Housing Material:	Aluminium
Standard:	Standard
Certification:	CE
Principle:	Capacitive

Product Description

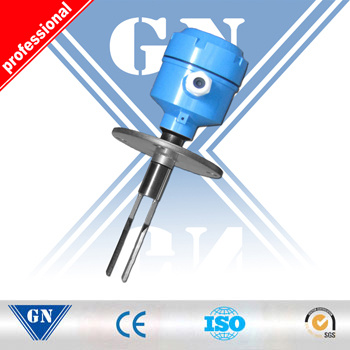

CX-FLS-LY  FORK LEVEL SWITCH

Application

Applicable for fixed point alarm or control in all kinds of storage level and liquid level in tank. Solid material: rice, milk powder, sugar, salt, washing powder, dyestuff, cement, rock powder, plastic grain etc. liquid media: water, mud fluid, pulp, dyestuff, oil, milk, alcohol, beverage etc.
It can detect sediment in liquid! The instrument has not a movable part and presents merits of anti-corrosion, high sensitivity and easy mounting etc.

Main parameters

Ambient Temperature	-25/+60ºC
Fork Body Material	Copper alloy or stainless steel (order as user requirement)
Power Supply	AC220V/50Hz   DC24V
Consumption	1.5W
Output Signal	2 groups of normal open and normal close contact: contact capacity 220VAC 5A . 24VDC 10A. null has a 10/0mA output
Amplitude of vibration	Adjustable, easy for measuring different state and density of material
Maximum Outline of Material Grain	≤10mm
Maximum pressure in vessel	1.0MPa (it should specify pressure while ordering)
Working Temperature in Vessel	-20/+200ºC (it shouldspecify temperature while ordering)
Vibration Frequency of Tuning Fork	About 200 Hz
Amplitude of Vibration at Tip of Tuning Fork	About 0.5mm
Damp Time Delay of Tuning Fork	About 2 S
Free Time Delay of Tuning Fork	About 7 S
Medium should be none viscous material	Without the contain corrosive material to fork body

Principle
It is a field mounting instrument consisted by tuning fork and electronic box. Communication emitting part: to fix 2 groups of piezocrystal at tip end of tuning fork, one group is a drive element to drive tuning fork producing vibration, another group is a detecting element to change fork vibration into voltage. While both of them are connected with input and output of amplifier in electric box separately, it forms a mechanical —electronic oscillating electric.
When tuning fork is barred , amplitude of vibrator will be getting small, relay is coupling , then terminal will be transfer a switch signal and 0mA current(current output is less than 1mA and more than 0mA).
When tuning fork is non barred , amplitude of vibrator is getting strong, relay is releasing, then terminal will be transfer a switch signal and 10mA current(current output is more than 10mA and less than 11mA).
