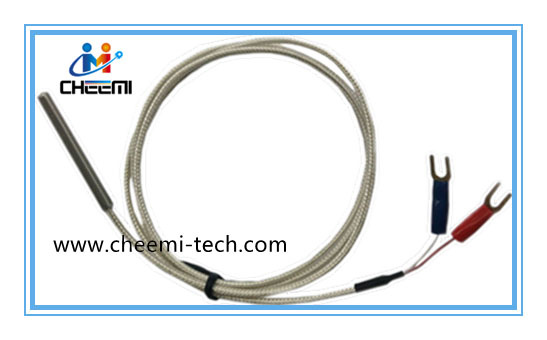

Fork Terminal Screw Threaded Thermocouple K Type
| Price: |
US $ 1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
WRN-K |
| Temperature Range: |
0~+800c |
| Graduated No: |
K N J E T S R B etc. |
| Probe Length: |
10-2000mm |
| Probe Diameter: |
3-20mm |
| Screw Thread: |
M8*1.25 M10*1.5 G1/2 etc. |
| Certification: |
Ce RoHS ISO |
Product Description
Introduction * Application: Thermocouples are widely used in science and industry; applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, and other industrial processes. Thermocouples are also used in homes, offices and businesses as the temperature sensors in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.
Specification * Graduation:K
* Measuring Range:0~800C
* Materail:304ss
* Diameter:3mm
* Probe length:1600mm
* Material:304ss
Main technician parameter
Accuracy: Class I, Class II
Nominal diameter:Φ1
Bending diameter: R≥5D
Nominal pressure: normal pressureStandard Graduated no. of thermocouple | Type | Graduated no. of thermocouple | Material element | Long-term use temperature | Short-term Temperature range |
| WRC | T | Cu-CuNi (IEC 584) | 0 ~ 350ºC | 0 ~ 400ºC |
| WRN | K | NiCr-NiSi (IEC 584) | 0 ~ 800ºC | 0 ~ 1000ºC |
| WRR | B | Pt-Rh30-Pt6 (IEC 584) | 0~1600º | 0~1800ºC |
| WRM | N | NiCrSi-NiSi (IEC 584) | 0~1000ºC | 0~1100ºC |
| WRE | E | NiCr-CuNi (IEC 584) | 0~600ºC | 0~700ºC |
| WRQ | R | PtRh13-Pt (Pt 13%) (IEC 584) | 0~1300ºC | 0~1600ºC |
| WRP | S | PtRh-Pt (Pt 10%) (IEC 584) | 0~1300ºC | 0~1600ºC |
| WRF | J | Fe-CuNi (IEC 584) | 0~500ºC | 0~600ºC |
Comment* Produce based on client's requirments
* Methods of fixing: normally without fixing device, but flange or threaded is availableNote * We provide FREE samples for your test!
Purchase only when you are satisfied with the FREE samples.
Please contact us to apply FREE Trial NOW !!* Please let us know what kind of model, working voltage, input & output signals, mounting size.
* Or tell us your techincal requirement for the sensor selection.
* OEM/ODM is welcomed.
CHEEMI TECHNOLOGY CO.,LIMITED.
Certification: ISO9001, CE, ROSH.
( Your reliable sensor-solution partner for Hall Current & Voltage Transducers, Proximity Switches/sensors, RTD Temperature Sensors, Current Transformers, Pressure Transmitter, Liquid Level Transmitter. )
Address: 22 Building, XianlongWan, Xianyin South Road, Qixia District, Nanjing City, Jiangsu Province, China.
Post code: 210000
Tel: +0086-025-85996365
Web: www.cheemi-tech.comPackage * All our sensors will be well packed with bubble & carton.
* You can choose your own label(Screen Print or Laser Engraving).
* Can be netural packing or OEM.Shipping * Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
* L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
* Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country. Warranty * We provide 1 year warranty.
* If the product is defective, please notify us within 3 days after receiving.
* All products must be returned on their original condition, in order to qualify for a refund or exchange of goods.Our Commitment * Better Price than other suppliers for you because of Factory Direct Sale;
* Better Quality than before caused by our 10+ years experience about sensors;
* Fast Delivery made by our Enthusiasm;
* Timing Reply in 24 hours all about our TEAM's Passion & Patience.
Cheemi specializes in development and commercialization of monitoring & measuring solution innovation, with more than 100 workers, 5200 non-dust workshop, 12 years experience in current measurement, ISO, CE & RoHS certificated, one and half hours reach Shanghai port. This is how we keep good quality and competitive prices for global valued customers.
As the leading manufacturer and supplier in the field of sensors and measurement with more than 10 years experience, Cheemi Technology Co., Ltd provides the most effective and reliable sensor solutions which involve
1. Open & Closed Loop Hall effect Current & Voltage transducers, Current Transmitter, Leakage Transducer; Completely replace LEM hall sensors with excellent quality and performance.
2. Hall proximity switches, Inductive proximity sensors, Photoelectric proximity sensors; Equivalent to OMRON Proximity Sensors.
3. RTD Temperature sensors, temperature transmitter
4. Current transformers and potential transformers
5. Pressure sensor/transmitter
6. Liquid level sensor/transmitter
With more than a decade experience in current measurement, we have professional & ambitious team with cutting-edge manufacturing technology; We are not only dedicated to quality and total solutions for our consumers, but also committed to technical expertise service and customer satisfaction.
