Forklift 24V 200ah Rechargeable Lithium Ion Battery Pack

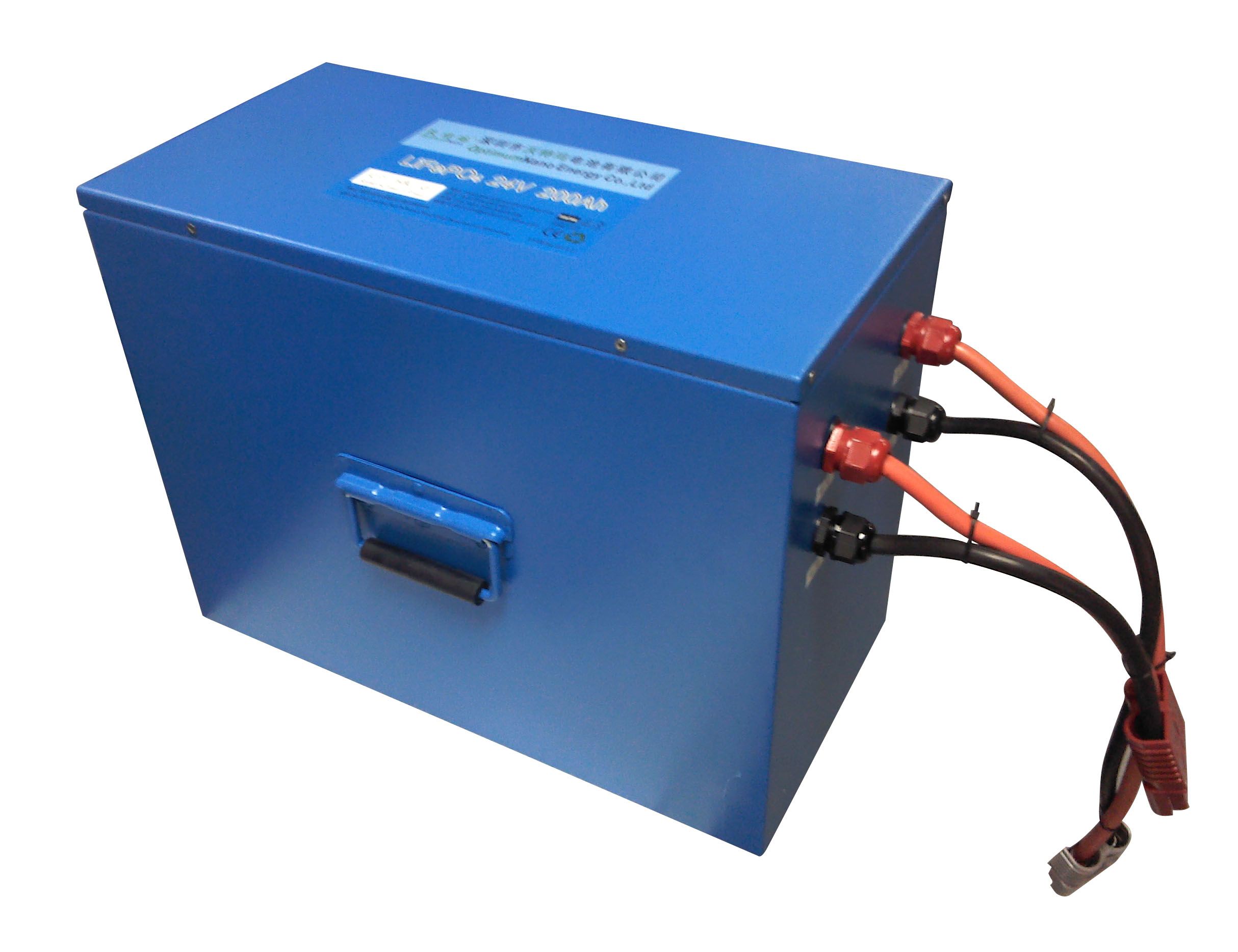

Name: Forklift 24V 200ah Rechargeable Lithium Ion Battery Pack
Brand: all-electronics-online.com
SKU: 759463765
Availability: InStock
Rating: 4.8 (111 reviews)

Price:	US $ 1-500/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OPt-24200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lead Time:	20-25days
Warranty:	2 Years
Life Cycles:	2000 Times
Application:	Forklift Battery
Certificate:	UL ,CE ,RoHS ,ISO9001 ,Ts16949
Advantages:	Safety,Long Life Cycles,High Energy Density
Self-Discharge Rate:	Less Than 3% Monthly
Cell:	32650
With BMS/PCM:	PCM
Components:	LiFePO4(Lithium Iron Phosphate)
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Usage:	Forklift Battery
Standard Voltage:	24V
Rated Capacity:	200ah
Electrolyte:	LiFePO4

Product Description

Forklift 24V 200Ah Rechargeable Lithium Ion Battery Pack

Product Description
Product Feature
1. Safety: Safest Li-ion battery, CE UL approved, built-in protection circuit board (BMS), no fire, no explosion
2. Clean and Green energy, no toxic material contained
3. Long life cycle, > 2000 times deep cycle at 1C rate, 6-8 times of lead acid battery
4. No memory effect, highly efficient charge anytime, no reduction of capacity
5. Operation temperature: -20~65 C
6. Small size and light weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni-CD battery, 1/2 weight of lead acid battery
7. Good performance at high temperature and high temperature resistance
8. Low self-discharge rate: < 3% monthly

Applications
1. Large-scale electric vehicles: Electric bus, electric car, E-Tour Car
2. Light electric car: E-bike, electric scooter, e-motor, electric golf car, forklift, cleanness car, electric wheelchairs
3. E-tool: Electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment

Specification:

NO.	Item	General Parameter		Remark
1	Model	IFR 32650
2	Casing material for single cell	steel case for single cells
3	Standard capacity(0.2C5A)	200Ah
4	Rated voltage	25.6V		Work Voltage: 3.2V
5	Max.Charge voltage	29.2V		Single Ave. Charge Voltage:3.65V
6	Cut-off voltage	20V		Single Ave. Disharge Voltage:2.5V
7	Standard charge and discharge current	40A		0.2C
8	charging Time	5 h		0.2C
9	Max discharge current	80A		0.4C
10	length	550mm		or customized
11	width	427mm		or customized
12	height	240mm		or customized
13	Weight(Approx,including case)	About 65.3kg
14	Impedance(Max, at 1000Hz.)	≤ 60mΩ
15	Operate temperature	Charge	0ºC~45ºC
		discharge	-20ºC~60ºC
		storage	-20ºC~45ºC

Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
