| Prod Model: |
RTH-801-0028 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Business Type: |
Manufacturer |
| Impedance: |
50 Ohm &75 Ohm |
| Body: |
Brass or Zinc Alloy |
| Contact: |
Brass |
| Plating: |
Nickel |
| Orientation: |
90 Degree |
| Gender: |
Female |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Clamping Type |
| Brand: |
Renhotec |
Product Description

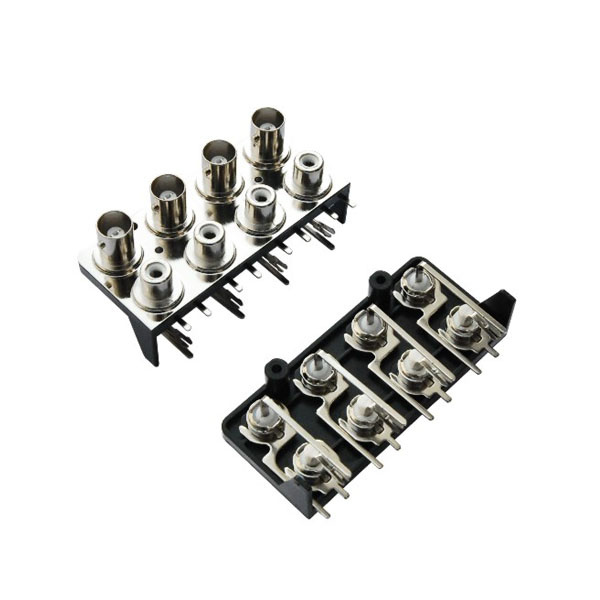

Four BNC Female to Four RCA Femal Connector for PCBProduct DescriptionThe
BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry standard cables, in a variety of termination styles.
Basic parametersMajor Technical Characteristics| Temperature Range | -5 degree to +155 degree
(PE cable -40 degree to +85 degree ) |
| Impendance | 50ohm, 75ohm |
| Frenquency Range | DC-4GHZ |
| Working Voltage | 500V r.m.s at sea level |
| Workstandinging Voltage | 1500V r.m.s at sea level |
| Center Contact Resistance | ≤1.5Mohm |
| Outer Contact Resistance | ≤1Mohm |
| Insulation Resistance | ≥5000Mohm |
| Center conductor Retention Force | ≤0.57N |
| Insertion Loss | ≤0.20dB/3GHz |
| Voltagge Standing Wave Ratio : |
| Straight | ≤1.22/3GHz |
| Right Angle | ≤1.30/3GHz |
| Dutability (Mating) | ≤500(cycles) |
| Materials |
| Body | Brass.........................Nickel |
| Insulator | Delrin.........................Natural |
| Contact Pin | Brass.........................Gold |
| Ferrule | Copper......................Nickel |
| Suitable cables |
| RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US) |
