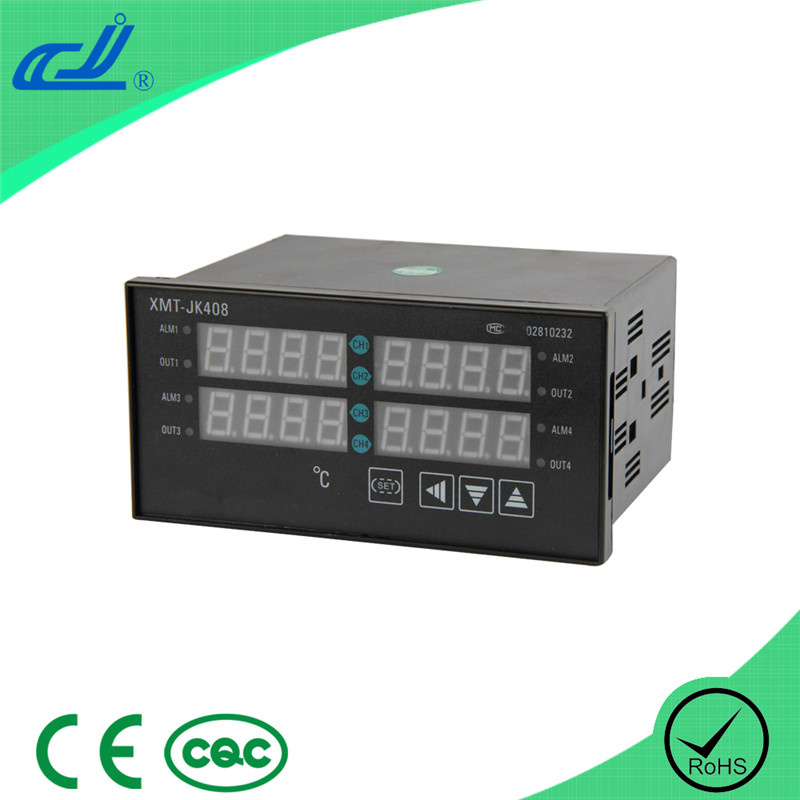

Four-Way Temperature Controller (XMT-JK408)

Name: Four-Way Temperature Controller (XMT-JK408)
Brand: all-electronics-online.com
SKU: 681339715
Availability: InStock
Rating: 5 (45 reviews)

Price:	US $ 67/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XMT-JK408
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	160*80
Type:	Temperature Controller
Control Type:	Digital
Control Method:	Electronic Type
Usage:	Temperature Control

Product Description

I.Summary
XMT*JK four-way temperature controller can connect four sensors synchronously and conveniently, diminish the instrument's volume. It has a separate auto-tune mode and PID parameter function with more precision and more reliability in whole machine control.

II.Primary technical standard
1, Input signal: CU50(-50.0~150.0C), Pt100(-19.9~600.0C), K(0~1300C),
E(0~700.0C), J(0~900.0C)
2, Accuracy: ± 0.5%F. S± 1byte
3, Output method: Relay AC220V 3A(resistance load)
4, control mode: Difference control-on/off and PID control
5, Input power: AC85~242V 50/60Hz
6, Environment Temperature: 0 to 50C, Humidity: ≤ 85%RH
7, Face Size: 160× 80× 110 mm Hole Size: 152× 76 mm
96× 96× 110 mm Hole Size: 92× 92 mm
72× 72× 110 mm Hole Size: 68× 68 mm

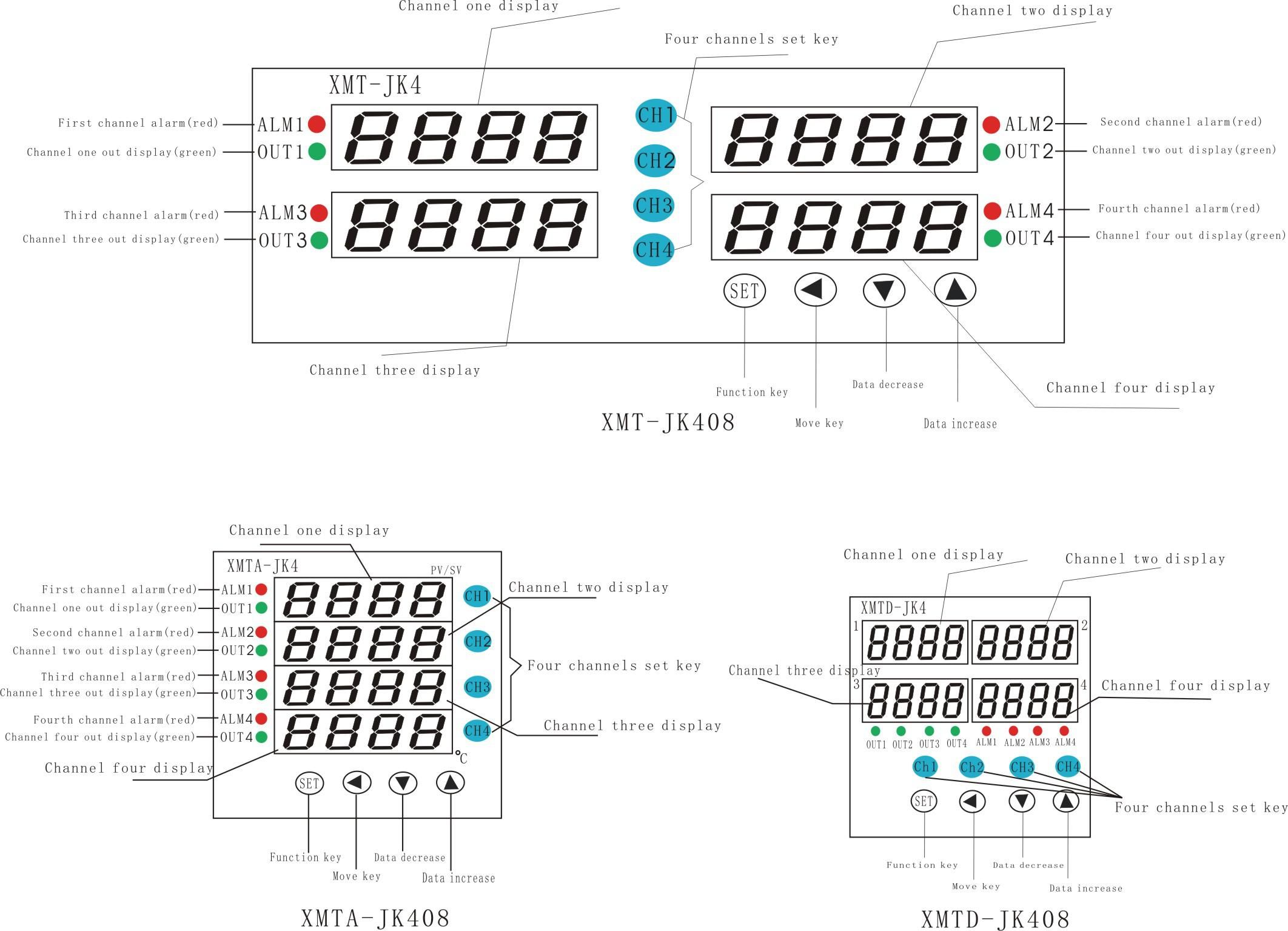

Panel board instruction(consult)

Connection scheme(consult)

Series		Code		Name		Setting range		Manual	Remarks
First Menu	0	LOCK		Code lock		0~50		LOCK=18,all the parameter can be revised	18
	1	Sn		Input type		0~4		CU50\Pt100\K\E\J	K
	2*	ALP		Alarm define		0~6		0:no alarm\1:upper limit alarm\2:low limit alarm\3:upper warp alarm\4:low warp alarm\ 5:between besides alarm\ 6:between inside alarm	1
	3	t		Output cycle		0~120 S		relay control action cycle setting	10 S
	4	dp		display accuracy		0~1		1: have radix point, 0: have not radix point	0
	5	P-SH		Upper limit		P-SL~full range		this parameter resreict enactment value's upper	according request
	6	P-SL		lower limit		Range jumping-off ~P-SH		this parameter resreict enactment value's low	according request
	7	OPB		Assistant output method		0~2		0:no Assistant output; 1:RS485 communication 2:Mini pinter	0
	8	Add		address		1~64 (1~9999)		Meter's NO (in minitype as print times)	1
	9	bt		baud rate		__		0:1200; 1:2400; 3:4800; 4:9600	9600 9600

Second Menu	10		SP+N(1~4)		N channels control setting		Range by P-SL\P-SH decide	Control value setting	default
	11		AL+N		Alarm value setting		Range by P-SL\P-SH decide	Output mode decide by 'AL-P'	default
	12		SC+N		Sensor error amendment		±20.0	The sensor have deviation can use item to revisal	0
	13		P+N		Proportion modulus		0~100	When the P increase, the proportion function decrease. When P=0,the meter is ON/OFF control	8
	14		I+N		Integral time		0~3000	Set integral time so as to unchain residual. Deflection caused by proportion control. To increase it, the static difference will be reduced, but when it is too high ,the static difference will drift instability.	240
	15		d+N		differential time		0~200S	Set the differential time,so as to avoid. The output's fluctuation,Improve the control's stability.	30
	16		Hy+N		Main control by drop in level		0.1~50.0	-	1.0
	17*		At+N		Setting itself		0~1	0:close setting itself function 1:open setting inself function	0

Yuyao Gongyi Meter Co., Ltd And Its Subsidiary, Yuyao Changjiang Temperature Meter

Factory, Have Been Devoting Themselves To The Development And manufacturing Of

Industrial Process Automation Controller Instruments Since 1995. Through Decades Of

Improvement, Gongyi Now Is A Top One Chinese Instrument Manufacturer, Claiming A

Large Domestic And Overseas Market Share, sales of CJ temperature controller.

Main products: Temperature controller, humidity controller, electrical instrument, time relay, paperless recorder, silicon-controller, voltage regulator and all kinds of temperature sensor, humidity sensor, temperature transmitter and safety barrier. All the instruments have the function to communicate with computer, and provide the computer industrial control interface. (DCS System)

"CJ" series Temperature Meter has been ISO9001-2008 quality system' S grant, CE and kinds of certification, and has international facture calculate appliance' S license ( CMC 02810232 )
