Product Description

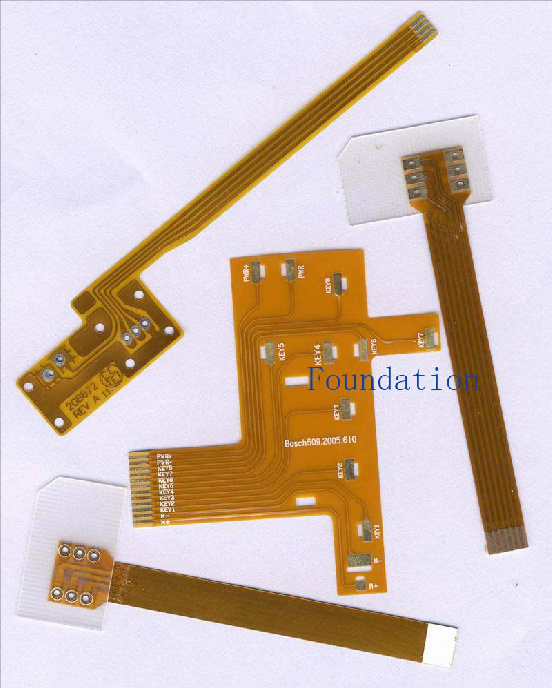

FPC Flexible Flat Printed Circuit PCB Membrane Switch:
Flexible Circuit:
It can be bent, folded and deformed freely. Its coil radius is small and it can be moved freely along X, Y, Z axis separately.
2. Occupy small space
Since it is light and thin, it makes best use of the narrow space in the instruments. (Average thickness 1.1-0. Am)
3 Light weight
Its weight is very light because the design of FPC is not based on mechanical strength but current load.
4. Good seal capability
The flexible board could be designed for low-tensile seal enduring the adverse environment.
5. Steady transmission
The wiring pattern and the conductor distance can be freely designed according to electric parameters. Once the pattern is finalized, parameters of RL C is steady accordingly.
6 Easy Assembly
The property of terminal is good enough to be fixed to any equipment by soldering, inserting, riveting and gluing. Manual mistakes in traditional wiring are avoided.
7 Good Insulation
We selected the materials with good insulation property, such as polyimide, polyester, etc. Usually, the wiring is covered, so the insulation is greatly strengthened.
FPC & FFC can be extensively applied:
Description:
Copper foil substrate (Copper Film) [3]
Copper foil: Basically divided into two kinds of electrolytic copper and rolled copper common thickness 1oz 1/2oz and 1/3 oz
Substrate film: A common thickness of the 1mil with 1/2mil two kinds.
Glue (adhesive): Thickness according to customer requirements.
Cover film protection film (Cover Film)
Cover film protection film: Surface insulation. The common thickness 1mil with 1/2mil.
Glue (adhesive): Thickness according to customer requirements.
Adhesive buildup of foreign matter before pressing the shape from the paper: Avoid; Easy job.
Stiffener (PI Stiffener Film)
Stiffener: Reinforcing the mechanical strength of the FPC, to facilitate the surface mounting job. Common thickness 3mil to 9mil.
Glue (adhesive): Thickness according to customer requirements.
Shape from the paper: To avoid foreign matter adhesive buildup Crimping before the.
EMI: Electromagnetic shielding film, the protection circuit board line without interference from the outside world (a strong electromagnetic District or susceptible to interference zone).
Competitive Advantage:
1. Short: Assemble shorter working hours
All lines in the configuration is complete. Save extra FPC PCB FPC PCB wiring connection work
2. Small: Small volume PCB
Can effectively reduce the products volume. The increase is to carry on the convenience
3. Light: Weight lighter than PCB (hard)
Can reduce the weight of the final product
4. Thin: Thinner than the thickness of hard PCB board.
Can improve the softness. Strengthen then limited space for three dimensional assembly
5. Quick Delivery
6. Best services
7. OEM / ODM available.
Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.
We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.
Our main product range are:
1)Membrane Switch and overlay
2)Flexible printing Circuit/ FPC/EL
3)Silicone products including silicone rubber key pad. And various silicone Rubber products.
4) Metal nameplate series
5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector
We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.
We sincerely hope can cooperate with you in the coming future!
