| Prod Model: |
FPF |
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Manufacturers: |
Haiyan Jinhan Electronic Technology Co.,Ltd |
| MOQ: |
1 Piece |
| Export Markets: |
Global |
| Production Process: |
Integration |
| Shell Material: |
Iron-Shell |

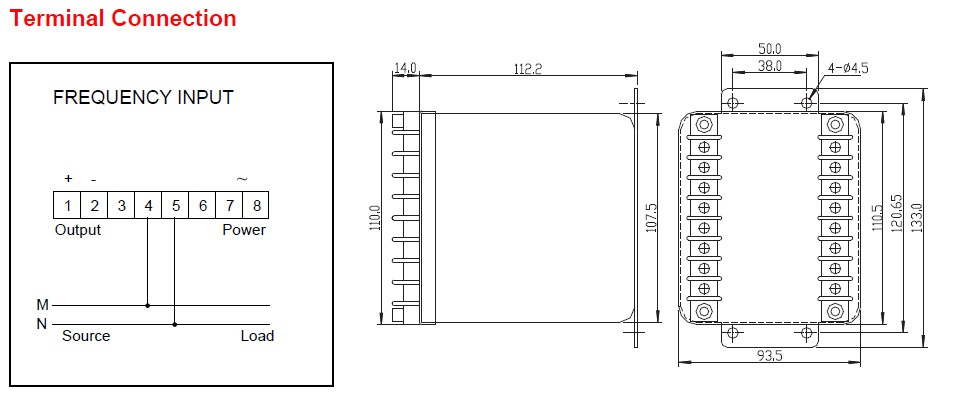

| Dimension: |
112*133*93.5 |
| G.W: |
About 1.5kg |
| Freight: |
by Air |
| Delivery Time: |
1 Week |
| Installation: |
Screws |
Product Description

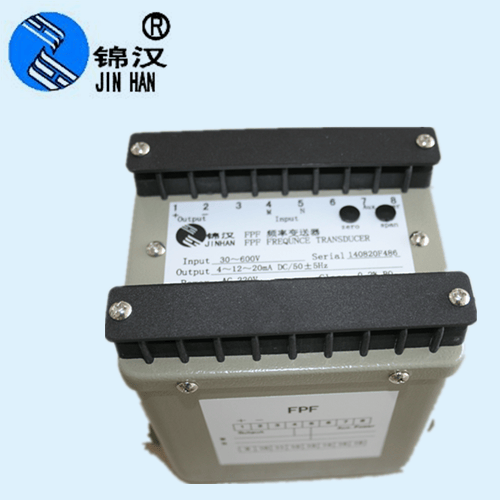

FPF FREQUENCY TRANSDUCERApplied Standards & Rules:Measuring and conversion IEC 688 / 1992 - 04
Dielectrical strength IEC 688 2KVac / 1 min.
Surge and Impulse test ANSI C37.90 / 1989 IEC 255-3 (1989) 4KV 1.2 x 50 us2. Order form
Main functions and Characteristics
Transforms the measured signal to a voltage, after HCNR200 linearity photodiode transforms to DC output which has extremely good linear relations with the measured signal, uses the computer aided designed, the principle is simply, circuitry designed concisely, reliability is highly and installment is conveniently.
Notice
Operating environment should not have the electric dust and gas of corrosive metal and destruction insulation existence, the altitude should less than 2,500 meters.
The Zero and CAL have been adjusted when products left factory. Please don't adjust at will.

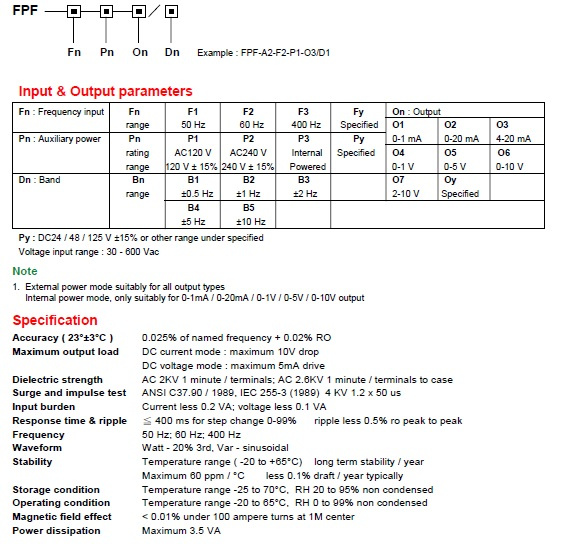

Paramerers:
Vn:
Input voltage | Fn:
Input frequency | Bn
Frequency range | Pn
Power | On:
Output |
30-600V | F1
50Hz | B1
±0.5Hz | B2
±1Hz | P1
AC 110V
PD1
DC 110V | 01
0-1mA | 02
0-20mA | 03
4-20mA |
04
0-5mA | 05
0-10mA | |
F2
60Hz | B3
±2Hz | B4
±5Hz | P2
AC220V
PD2
DC220V |
07
0-1V | 08
0-5V | 09
0-10V |
F3
400Hz | B5
±10Hz | B6 |
3.5 VA |
010
2-10V | 011
1-5V | 013 |
Model type:
FPF-Vn-Fn-Bn-Pn-On
Ex:
1. FPF-F1-P2-08/B2
Frequency:49-51Hz
Power:AC 220V
Output:0-5V/49-51Hz
Accuracy:0.2%RO
Customized:Customized
