Product Description

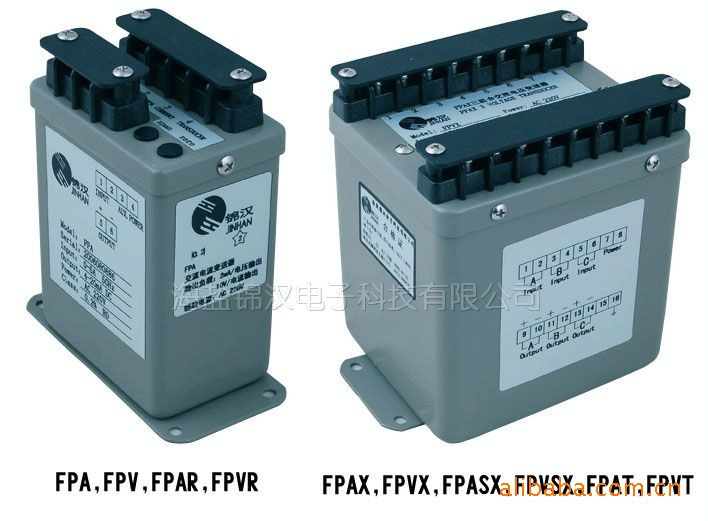

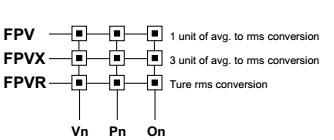

1. Applied Standards & Rules: Measuring and conversion IEC 688 / 1992 - 04 Dielectrical strength IEC 688 2KVac / 1 min. Surge and Impulse test ANSI C37.90 / 1989 IEC 255-3 (1989) 4KV 1.2 x 50 us2. Model: FPV 1 unit of avg. to rms conversion
FPVX 3 unit of avg. to rms conversion
FPVR Ture rms conversion3.Order form:

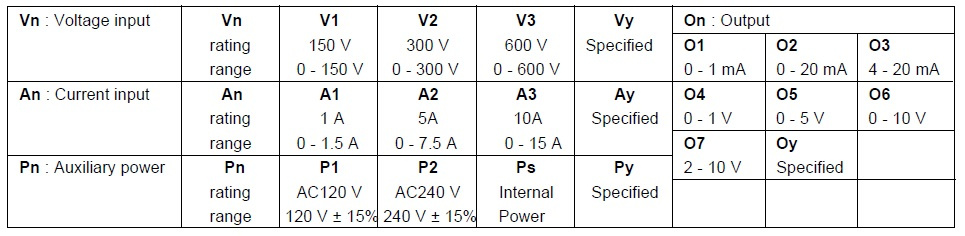

4.Input & Output parameters:
Py : DC24 / 48 / 125 V ± 20% or other range under specifiedNote:- External power mode suitably for all output types
- Internal power mode, only suitably for 0-1mA / 0-20mA / 0-1V / 0-5V / 0-10V output
5.Specification:Accuracy ( 23±3°C ) 0.2% RO .......... FPA, FPAX, FPV, FPVX
0.2% RO .......... FPAR, FPVR
Maximum output load DC current mode : maximum 10V drop
DC voltage mode : maximum 5mA drive
Dielectric strength AC 2KV 1 minute between terminals; AC 2.6KV 1 minute / terminals to case
Surge and impulse test ANSI C37.90 / 1989, IEC 255-3 (1989) 4 KV 1.2 x 50 us
Maximum input over Current related input Voltage related input
1A / 5A 10A
4 x rated / continuous 2 x rated / continuous 1.5 x rated / continuous
10 x rated / 10 seconds 25 x rated / 1 second 2 x rated / 10 seconds
50 x rated / 1 second 50 x rated / 0.5 second
80 x rated / 0.5 second
Input burden Current less 0.2 VA; voltage less 0.1 VA
Response time & ripple Ø400 ms for step change 0-99% ripple less 0.5% ro peak to peak
Frequency 45 ~ 400 Hz
Stability Temperature range ( 20 to 30°C ) long term stability / year
Maximum 60 ppm / °C less 0.2% draft / year typically
Storage condition Temperature range -25 to 70°C, RH 20 to 95% non condensed
Operating condition Temperature range -20 to 65°C, RH 0 to 99% non condensed
Magnetic field effect < 0.01% under 100 ampere turns at 1M center

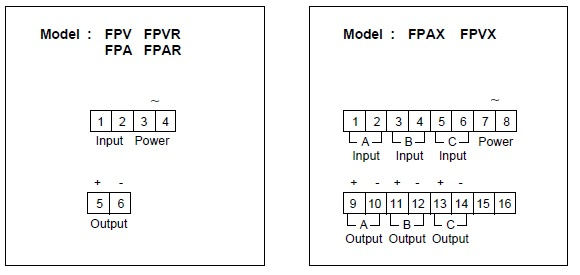

Power dissipation Maximum 3.5 VA for FPA / FPAR / FPV / FPVR; 8 VA for FPAX / FPVX6.Terminal Connection
Model and Ordering
FPV-Vn-Fn-Pn-On
Example:
1. FPV-V1-F1-P2-03
Input:120V
Auxiliary Frequency:50Hz
Power:AC 220V
Output:4-20mA
If you have any questions about this,welcome to contact us.
