Fq-Rct01 Flexible Clamp on AC Current Transformer Ct's

Prod Model:	FQ-RCT01
Ambient Operating Temperature:	-20°c ~ +70°c
Ambient Storage Temperature:	-25°c ~ +75°c
Standards Safety:	IEC 61010-1:2001, 600 V Cat III
Key Words:	Clamp on Ct's & Flexible AC Current Transformer
Accuracy Class:	1%
Model:	Clamp on Curent Transformer
Key Word:	Clamp on Ct's
Colour:	Blue/Customized

Product Description

Product description

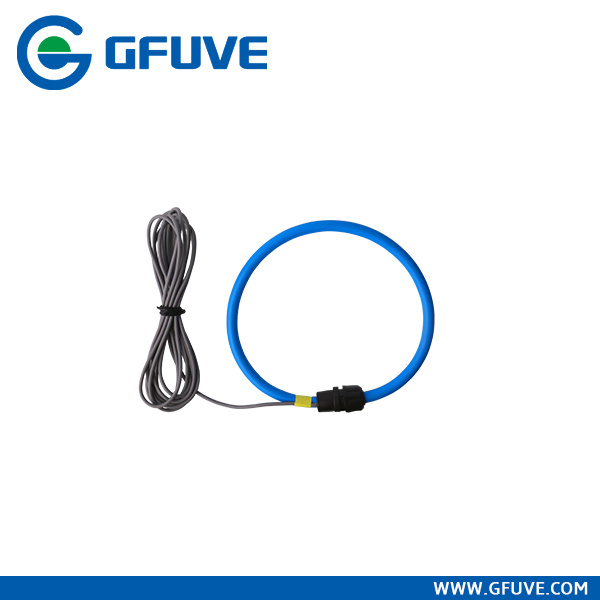

The FQ-RCT01 Flexible Clamp On AC Current Transformer ct's are designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables.
Applications
1. Power quality monitoring
2. Power meters
3. Smart logger
4. Energy sub-meters
5. Distributed measurement systems
Features
1. Flexible and lightweights
2. Easy & quick installation in tight spaces
3. No danger from open-circuited secondary
4. No core saturation or damage if overloaded
5. Excellent linearity
6. Multi-size are available
General Data
1. Ambient operating temperature: -20°C ~ +70°C
2. Ambient storage temperature: -25°C ~ +75°C
3. Standards Safety:IEC 61010-1:2001, 600 V CAT III
PARAMETERS

Electrical parameters
Model	FQ-RCT01-55	FQ-RCT01-80	FQ-RCT01-105	FQ-RCTA01-55	FQ-RCTA01-80	FQ-RCTA01-105
Current Range		10A~10kA			10A~6000A
Frequency		25Hz~20kHz			45Hz~600Hz
Output voltage	Rated current	500A	1000A	2000A	250A, 500A, 800A, 1000A	1000A, 1500A, 2000A, 2500A	1000A, 2000A, 2500A, 3000A
	50Hz	50mV AC	100mV AC	200mV AC
					333mV  1mV/A
Max output		/			3.0V AC max
Accuracy		<1% @25°C (45-65Hz)			<1% @25°C (45-65Hz)
Phase error		<60' @25°C (45-65Hz)			<60' @25°C (45-65Hz)
Output sensitivity		±2% Max (No Calibration)  ±0.5% @25°C (With Calibration)			1%
Linearity error		±0.2% (10%-100%I1n)			±0.2%
Position sensitivity		±2%			±2%
External influence		±2% Max			±1.5% Max
Power supply		/			10-30VDC,30mA Max.
