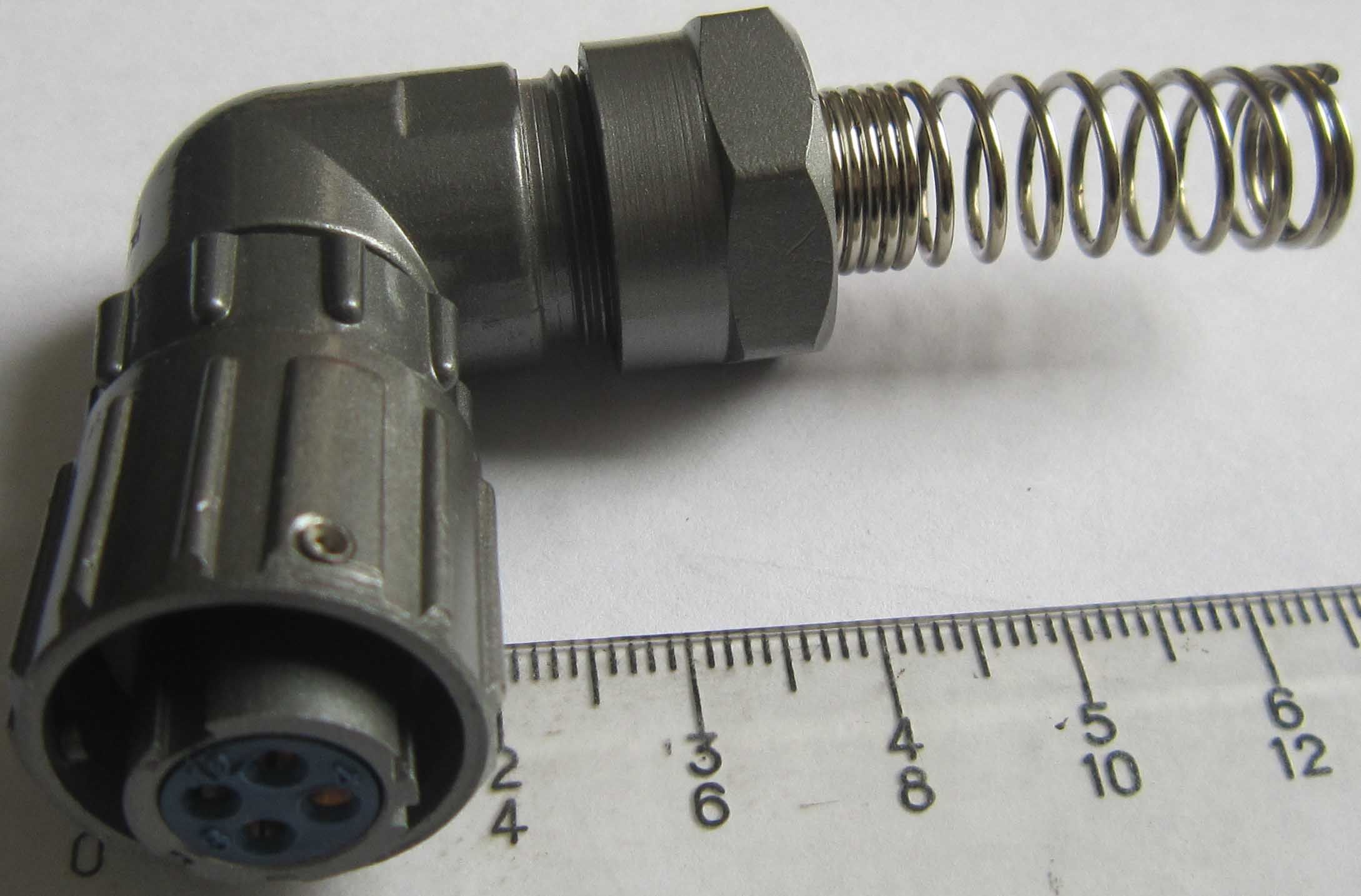

Fq14-4tr IP67 Water Proof Circular Connector

Name: Fq14-4tr IP67 Water Proof Circular Connector
Brand: all-electronics-online.com
SKU: 831205465
Availability: InStock
Rating: 4.6 (126 reviews)

Price:	US $ 5.8-7/Set
Min Order:	10/Set
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FQ14-4TR

Product Description

Water proof connector, FQ series circular connectors can be useed in the water-proof place. We use the reliable cage clamp connection instead of the traditional wire spring. These connectors have the features of lower contact resistance, anti-libration, shock proof, water proof and strong seal etc. They are widely used for the electrical connection between electrical equipment. IP67 water tight.

Product Ordering:
FQ 14- 4 TR K - 8
1. Name of series: FQ
2. Shell size: 14
3. Number of contacts: 2, 3, 4, 5, 6,6A, 7, 9, 10, 13
4. T: Plug(TR: Angled plug), Z: Flange mounting receptacle, ZP: Cable receptacle, Z2: Receptacle with O ring, ZY: Circular recptacle
5. Type of contacts: K: Socket, J: Pin
6. Wire gauge: 5, 6, 7, 8, 9

Technical characteristics
The connector is allowed to submerged in 1m deep water for 30min. (IP67)

	Temperature	Relative humidity			Atmosphere			Vibration		Shock
	-55°C~+85°C	(90~96)% at40°C			4.4KPa			10~200Hz,150m/s²		490m/s²
	Current			Voltage		Contact resistance			Endurance
	2A~5A			110V/250V		≤ 10m Ω			500cycles
	10A			250V/400V		≤ 5m Ω			500cycles
Environment			Voltage proof				Insulation resistance
Normal			2000V For 400V				≥ 5000M Ω
			1500V For 250V				≥ 1000M Ω
			1000V For 110V				≥ 1000M Ω
Moisture			1000V For 400V				≥ 100M Ω
			750V For 250V				≥ 20M Ω
			500V For 110V				≥ 10M Ω
Low pressure			300V For 400V				-
			250V For 250V
			180V For 110V

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
