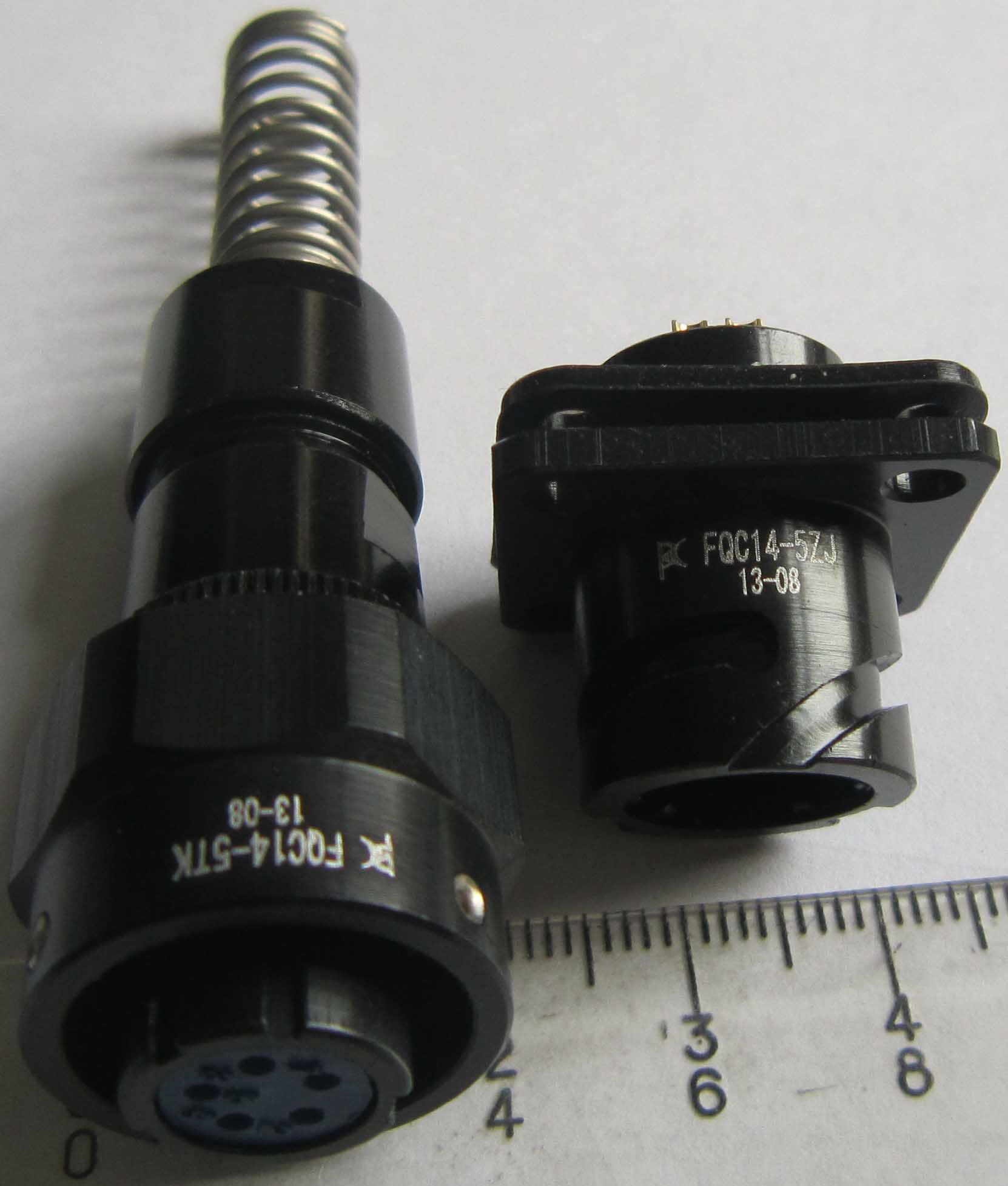

Fqc14 Series Bayonet Coupling Circular Connector

Name: Fqc14 Series Bayonet Coupling Circular Connector
Brand: all-electronics-online.com
SKU: 823791845
Availability: InStock
Rating: 4.7 (104 reviews)

Price:	US $ 9.8/Set
Min Order:	5/Set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	fqc14-5
Size:	Fqc14
Connecting:	Bayonet Connecting
Contacts:	5X1 Diameter Contacts

Product Description

FQC series circular connectors can be useed in the water-proof place. We use the reliable cage clamp connection instead of the traditional wire spring. These connectors have the features of lower contact resistance, anti-libration, shock proof, water proof and strong seal etc. They are widely used for the electrical connection between electrical equipment. Meet CE, RoHS. It can be interchanged with FQ series.

Product Ordering
FQC 14 - 5 T K -7
1 2 3 4 5 6
1. Name of series FQC
2. Shell size: 14
3. Number of contacts: 2, 3, 4, 5, 6,6A,7, 9, 10, 13
4. T: Plug(TR: Angled plug), Z: Flange mounting receptacle, ZP: Cable receptacle,
Z2: Receptacle with O ring, ZY: Circular recptacle
5. Type of contacts: K: Socket, J: Pin
6. Wire gauge: 5, 6, 7, 8, 9
Technical characteristics
The connector is allowed to submerged in 1m deep water for 30min. (IP67)

Temperature	Relative humidity	Atmosphere	Vibration	Shock
-55°C~+85°C	(90~96)% at40°C	4.4KPa	10~200Hz,150m/s²	490m/s²

Current	Voltage	Contact resistance	Endurance
2A~5A	250V	≤10mΩ	500cycles
10A-25A	400V	≤5mΩ	500cycles
35A-90A	400V	≤3mΩ	500cycles

Environment	Voltage proof	Insulation resistance
Normal	1200V	≥1000MΩ
High temperature	1000V	≥500MΩ
Moisture	800V	≥100MΩ
Low pressure	400V	-

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
