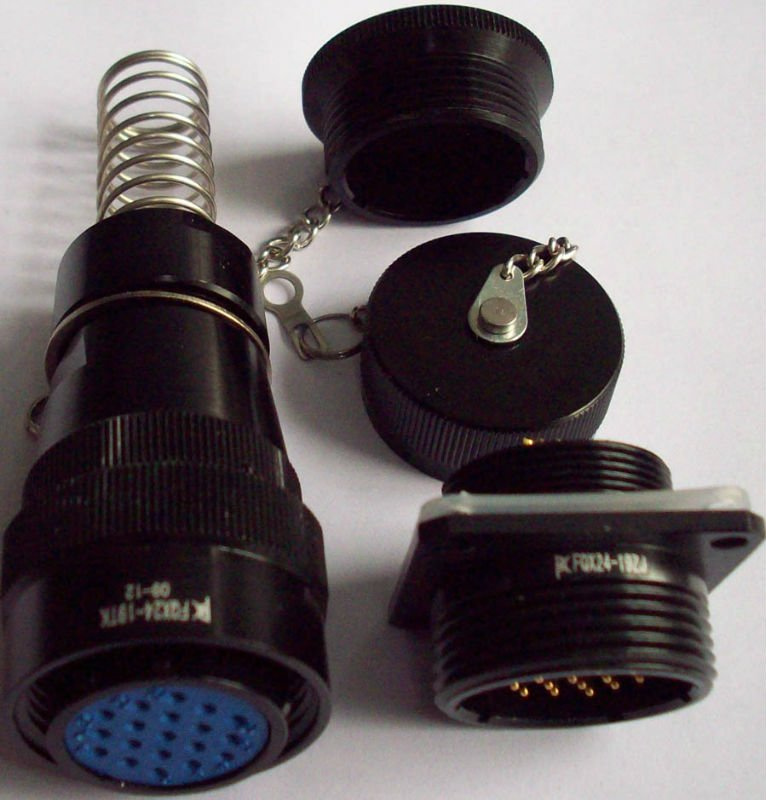

Fqx24 Series Water Proof Connectors

Name: Fqx24 Series Water Proof Connectors
Brand: all-electronics-online.com
SKU: 648826475
Availability: InStock
Rating: 4.5 (64 reviews)

Price:	US $ 23-28/Set
Trade Terms:	FOB
Min Order:	5/Set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FQX24-19
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size1:	Fqx24-19tk-12
Size2:	Fqx24-19zj
Size3:	Fqx24-19tj-14
Size4:	Fqx24-19zk
Protection:	IP68

Product Description

FQX24 series circular connectors can be useed in the water-proof place. We use the reliable cage clamp connection instead of the traditional wire spring. These connectors have the features of lower contact resistance, anti-libration, shock proof, water proof and strong seal etc. They are widely used for the electrical connection between electrical equipment. Meet CE, RoHS. Thread connect with the plug and receptacle.

Product Ordering
FQX 24 -19 T K -12
1 2 3 4 5 6
1. Name of series: FQX
2. Shell size: 24
3. Number of contacts: 1, 2,3, 4,4A, 6,6A, 10, 19, 26
4. T: Plug(TR: Angled plug), Z: Flange mounting receptacle, ZP: Cable receptacle, Z2: Receptacle with O ring, ZY: Circular recptacle
5. Type of contacts: K: Socket, J: Pin
6. Wire gauge: 6, 10, 12, 14
Technical characteristics
The connector is allowed to submerged in 1m deep water for 60min. (IP68)

Temperature	Relative humidity		Atmosphere		Vibration		Shock
-55°C ~+ 85°C	(90~96)% at 40°C		4.4KPa		10~200Hz, 150m /s²		490m /s²
Current		Voltage		Contact resistance		Endurance
2A ~ 5A		250V		≤ 10mΩ		500cycles
10A -25A		400V		≤ 5mΩ		500cycles
30A-40A				≤ 3mΩ		500cycles

Environment	Voltage proof	Insulation resistance
Normal	1200V	≥ 1000MΩ
High temperature	1000V	≥ 500MΩ
Moisture	800V	≥ 100MΩ
Low pressure	400V	-

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
