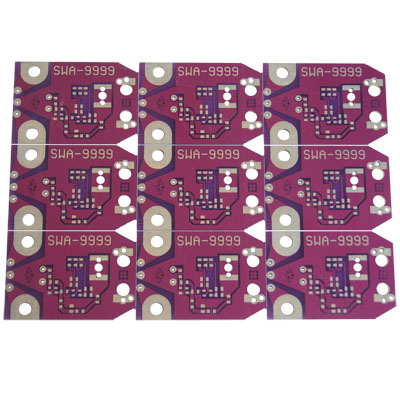

FR-4 1layer Red Soldermask PCB Board Manufacturing

Name: FR-4 1layer Red Soldermask PCB Board Manufacturing
Brand: all-electronics-online.com
SKU: 607487714
Availability: InStock
Rating: 4.5 (39 reviews)

Price:	US $ 45-60/Square Meter
Min Order:	5/Square Meter
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Single Sided PCB-2
Surface:	OSP,Immersion Gold,Hal Lead Free,Hal
Solder Mask:	Green,Red,Yellow,White,Black,Blue,etc
Shipment:	Air,Sea,Express(DHL TNT FedEx EMS UPS)
Sample Date:	3-5days
Layers:	Single-Layer
Certification:	SGS
Customized:	Customized

Product Description

ZHEJIANG ZAPON ELECTRONIC TECHNOLOGY Co., Ltd is a professional manufacture of PCB and PCBA. Which have the factory of single side PCB, double side PCB, multi-layer PCB and PCB assembly etc. We have the ability of produce for any medium and mass quantity. The machine of our factory are on work all day and all night. With Zapon as a supplier, you will have the highest quality, quickest delivery.

The products:
Single-side PCB: CEM-1, FR-2, FR-1 XPC-94HB
Double-side PCB: FR-4, CEM-3, High Tg, Aluminum, Halogen Free
Multi-layer PCB: 4 to 22 layers(FR-4, High Tg, Rogers)
Certification: UL, ISO9001, ISO/TS16949: 2002, IS014001 and RoHS
THE CAPACITY OF PRODUCTION: 50, 000SQM. /month

Item			Capabilities
Number of Layers			Single side
Material			CEM-1,FR-2,FR-1,FR-4,XPC-94HB
PCB Thickness	Min.thickness		0.8mm(32mil)
	Max.thickness		1.6mm(63mil)
Surface finished			Flux
			Nickel Plating
			Gold Plating
			Hot Air Solder Leveling(HASL)
			Entek Coating (OSP)
Solder Mask			Green,White,Black,Yellow,Red,Blue
Other printing			Silver through hole
			Carbon Print, Peelable Mask
			Carbon Through Hole
Copper thickness			1/2 oZ(18 um) - 1 oZ (35 um)
Min. Hole Size		CNC-Drilled	0.4mm (16 mil)
		Punched	0.8mm (32 mil)
Hole Size Tolerance (CNC Drilled)			+/ -0.076mm (3 mil)
Hole Size Tolerance (Punched)			+/ -0.1mm (4 mil)
Min. Line Width and Spacing			0.2mm (8 mil)
Min. Solder Mask Clearance (UV Cure)			0.15mm (6 mil)
Min. Solder Mask Clearance (Thermal Cure)			0.1mm (4 mil)
Min. Annular Ring			0.15mm (6mil)
Profile and V-Cut			Stamping, V-Cut and Beveling,CNC

Zhejiang Zapon Electronic Technology Co., Ltd is a professional manufacture of Aluminum base PCB and rigid PCB. Which have the factory of Alu base PCB, double side PCB, multi-layer PCB and PCB assembly etc. We have the ability of produce for any medium and mass quantity. The machine of our factory are on work all day and all night. With Zapon as a supplier, you will have the highest quality, quickest delivery. The detail information of our company are in below:
Establishment: 1997
Registered Capital: US$10M
The area of company: 16800m2
The number of staff: 622
Products:
Aluminum base PCB: One side aluminum PCB and double side Alu-PCB
Double-side PCB: FR-4, CEM-3, High Tg, Halogen Free
Multi-layer PCB: 4 to 22 layers(FR-4, High Tg, Rogers)
Certification: UL, ISO9001, ISO/TS16949: 2002, IS014001 and RoHS
THE CAPACITY OF PRODUCTION: 50, 000SQM. /month

All your inquiry of quotation will be replied within 4-hour. Our engineer will be on your service at any time. And your satisfaction is our biggest wish! ! !

Through the efforts of all staffs. Zapon has stood out among PCB company like us and has became a leading company in this industry. We have won accptance and set up a good reputation in domestic and international markets with the competitive price, the perfect atfter-sales services and the wide support of the suppliers. Our main clients in Samsung, Turkey, Italy, England, Portugal, America etc. Our products meet the military and IPC standards and specifications.

We hope we can be your best partner and offer you the best price with good service Do the biggest assistant for you to reduce your cost.
As long as we have the first cooperation, we believe we will get together, we are confident for establishing a long term friendship once our first cooperation made.
