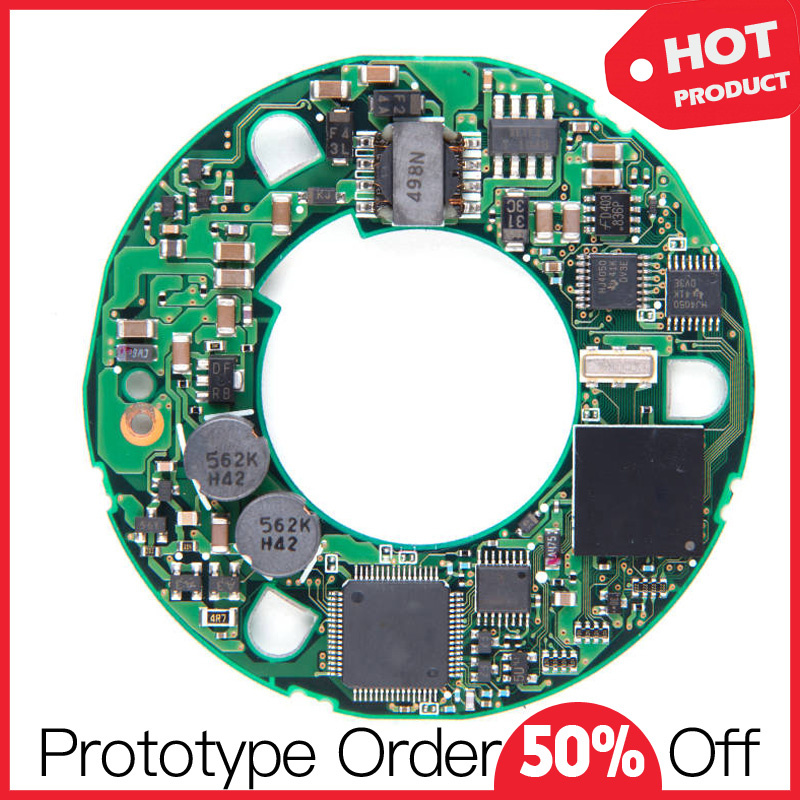

Fr4 94V0 OSP PCB and PCBA Manufacturing

Name: Fr4 94V0 OSP PCB and PCBA Manufacturing
Brand: all-electronics-online.com
SKU: 810488765
Availability: InStock
Rating: 4.8 (61 reviews)

Price:	US $ 1.98-2.35/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Metal Coating:	Copper
Mode Of Production:	SMT
Layers:	Multilayer
Base Material:	FR-4
Certification:	SGS
Customized:	Customized
Condition:	New

Product Description

Fr4 94V0 HASL PCBA Manufacturing with ROHS

Why Choose Us ?
NOD Electronics strives to be your PCBA manufacturer, including PCB design, fabrication and PCB assembly (PCBA). Our responsive team will offer you PCB assembly services with a range of process control, refined and strict PCB assembly workflow and quality commitment. Generally, customer with small-medium batch order and high quality requirements would like to choose us as reliable option, because we treasure long term interest and win by our outstanding services.

PCBA Manufacturing Capabilities

PCB Circuit Manufacturing	Available PCB Circuit Assembly Services	PCB Circuit Assembly Machines
4 SMT lines	Up to 12 layers, blind and buried via, impedance, heavy copper, HDI.	Fuji CP8 series SMT mounters
2 DIP lines	SMT/DIP	Auto solder paste screen printer
0201 component	In circuit test	Reflow ovens with 10 zones
0.25mm BGA	Function circuit test	Auto optical inspection
SMT 4 million spot daily	Burn in test	Wave soldering (lead-free)
DIP 1 million spot daily	Box Build	PCB Circuit assembly test room

PCBA Technical Capabilities
Chip On Board Technology
Maximum wires per PCB 1,500
Maximum dice per PCB 175
Minimum die bonding pad size 0.06mm x 0.06mm
Minimum PCB bonding pad size 0.10mm x 0.15mm
Current production capacity > 100,000 wires per month

Surface Mount Technology
Maximum PCB size 330mm x 250mm
Maximum component size 23.5mm x 23.5mm
Minimum component size 0.6mm x 0.3mm (0201chip size)
Fine pitch 0.5mm
Current production capacity > 14,000,000 chips per month

PCBA Manufacturing Process

About Us
As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10,000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15,000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.

Your PCBA manufacturing demand will be handled efficiently and perfectly by our advanced production line and professional work team.
PCBA Manufacturing Production line

Professional PCBA Manfacturing Work Team

If you have any questions about PCBA manufacturing, please feel free to contact with us.

As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10, 000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15, 000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.

We strive to be your rightest partner in electronic manufacturing serivce with a commitment from creative team members. Do you agree that every electronic product has its soul, bearing the designer's product concept, just like the Apples and Steve Jobs? Electronic product is a bridge between the customer and designer rather than a cold and ruthless object. Although they have no verbal communication, they have soul connection in between.

So, we perform and create a bridge, which turns your concept or design into a product and present in front of the customers by offering reliable manufacturing solutions and engineering support, including New Product Introduction (NPI), Printed Circuit Board (PCB) design, Printed Circuit Board Assembly (PCBA), Casing (plastic & mental) solutions.
