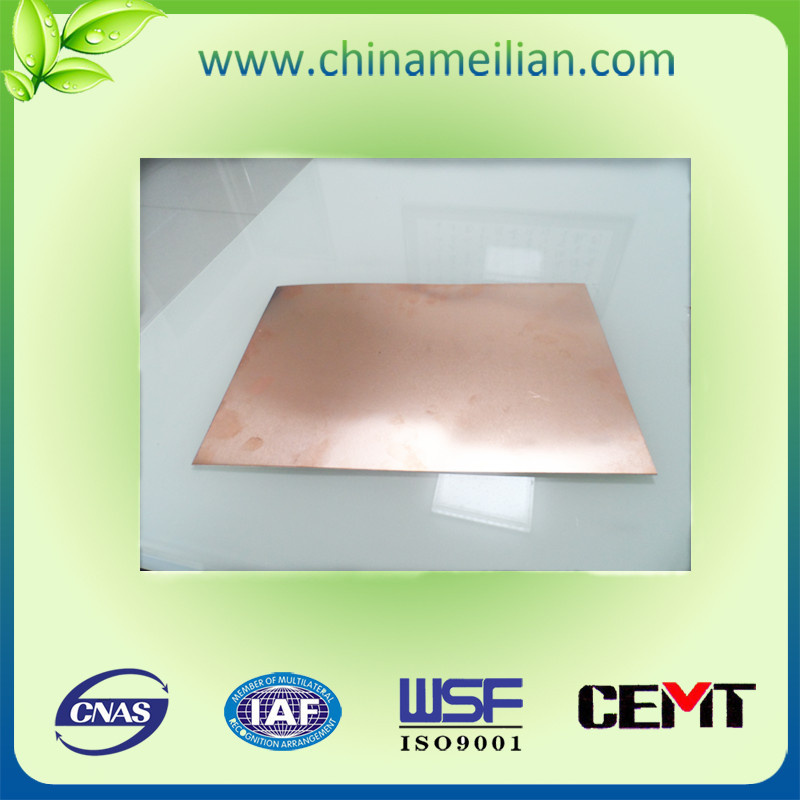

Fr4 Copper Clad Laminate Insulation Board

Name: Fr4 Copper Clad Laminate Insulation Board
Brand: all-electronics-online.com
SKU: 682716131
Availability: InStock
Rating: 4.4 (122 reviews)

Price:	US $ 17.6-23.5kg
Trade Terms:	FOB,CFR,CIF
Min Order:	200kg
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MJ-9335
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Golden
Customized:	Yes
Delievery Time:	Within 7-10 Working Days
Sample:	Free Samples Available
Structure:	Double-Sided Rigid PCB
Production Process:	Subtractive Process
Dielectric:	Mj
Material:	Copper Clad
Brand:	Mj

Product Description

Technical Datasheet

Technical Spectification
Al:99.70            Cu:99.90%
Tensile strength of Al-Cu bonded surface at ambient temperature :≥100 Mpa
Shear strength of Al-Cu bonded surface at ambient temperature: ≥60 Mpa
Tensile strength of Al-Cu bonded surface at 315ºC:  ≥20 Mpa
Maximum working temperature :350 ºC
Specific resistance : ≤3×10(-)8Ωm

We are Xi'an Meilian Electrical Insulation Co., Ltd, a professional supplier in Electrical insulation material for nearly 8 years.Our main products as follows:
1.Electrical insulation sheets(Magnetic Insulated Sheet/Electrical Insulation Sheet)
2.Magnetic slot wedges (Used for motor &generator&transformer)
3.Thermal expansion sheet
4.Insulation impregnating varnish
5.Insulation fiberglass tube/pipe/sleeve /rod
6.Polyimide sheet/tube/rod
etc.
We can provide free sample for test.

We are a factory manufacture and we can supply general size,  the customerized size.
Any question or needs,pls feel free to let me know.

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.

We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.

We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".

The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
