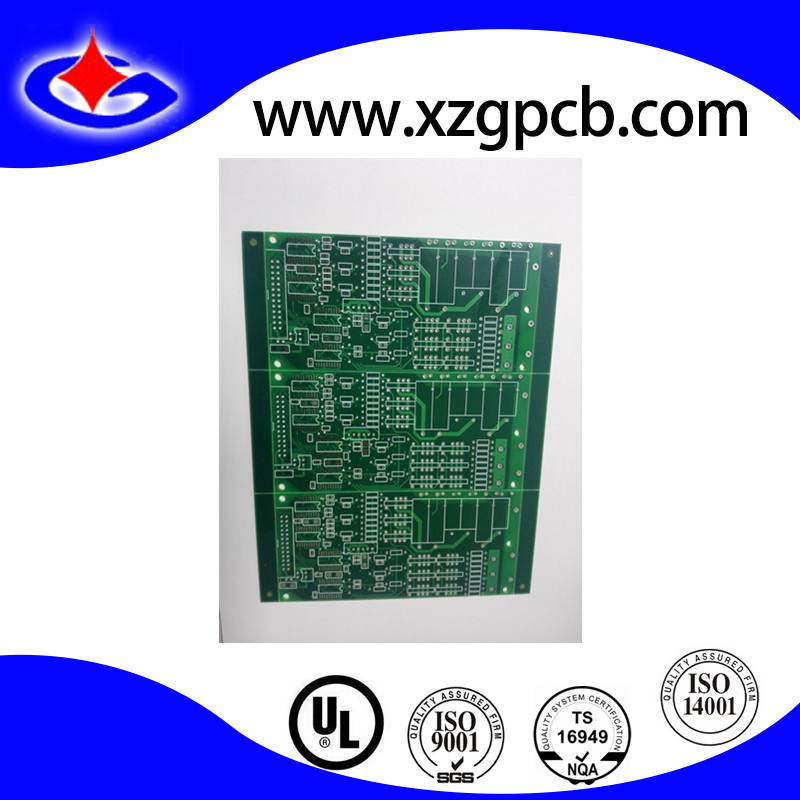

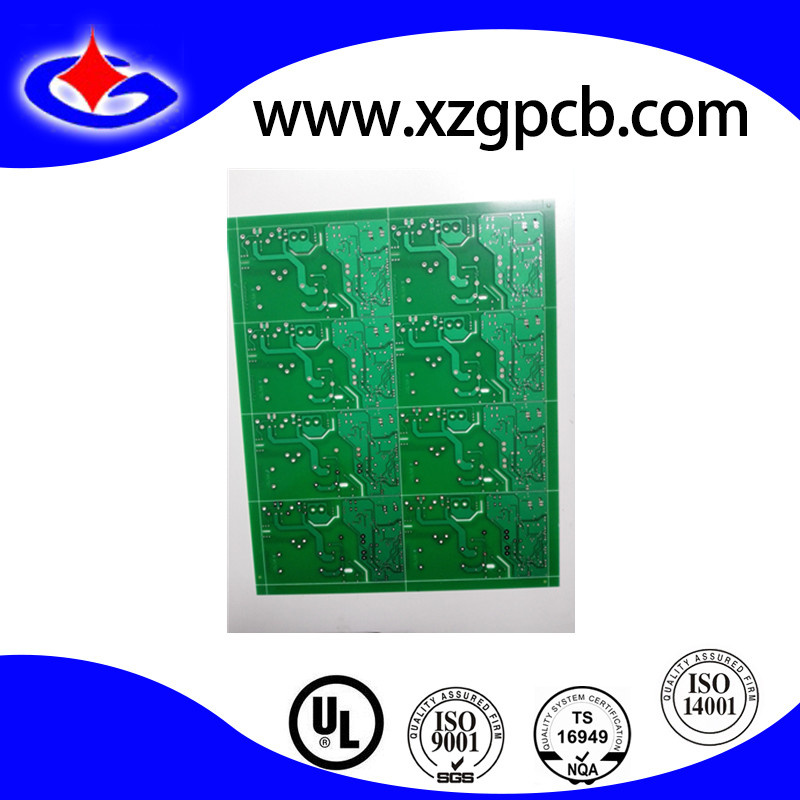

Fr4 Double-Sided PCB Circuit for Electronic Toy with Tg150

Name: Fr4 Double-Sided PCB Circuit for Electronic Toy with Tg150
Brand: all-electronics-online.com
SKU: 780707765
Availability: InStock
Rating: 4.7 (52 reviews)

Price:	US $ 2.3-2.7/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WBPN1415AO
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	110.5*45mm
Min. Hole Size:	0.4mm
Min Line Width And Distance:	0.2/0.2mm
Solder Mask:	Green
Silkscreen:	White
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Brand:	Xzg

Product Description

Specification:

Material:FR4 KB6165
value:tg150
board thickness:1.6mm
copper thickness:1oz
Surface treatment:hasl lead free

Our main process capability:

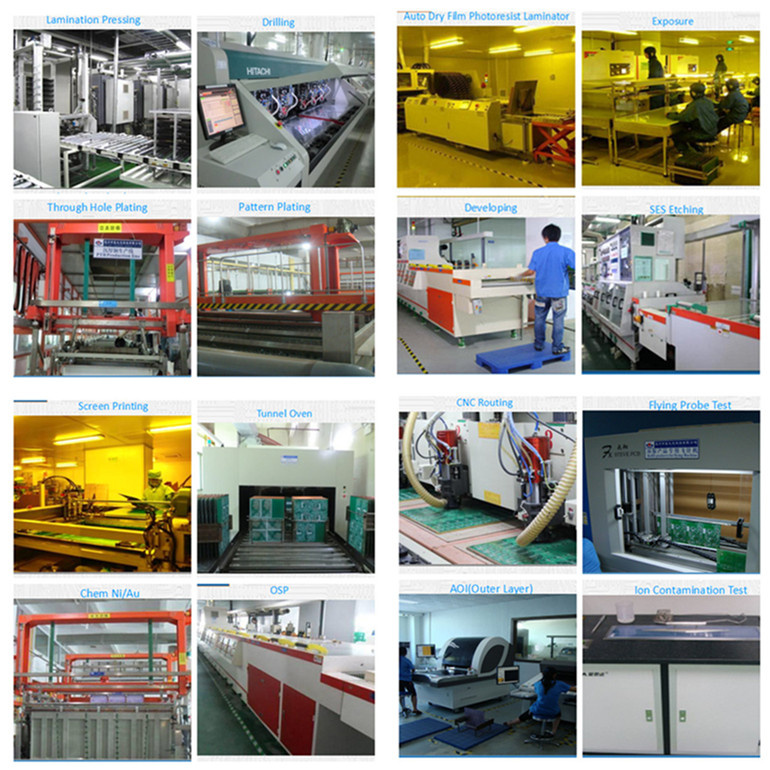

Why US: UL (E246887), ISO9001, TS16949, ISO 14001 certified. Turnover USD 50-100 million per year 25,000 sqm area,1100 staff Mass Production from single to 20 layers Special Material: ROGERS, Arlon, Taconic.etc. Client: SAMSUNG, Skyworth, Malata, Midea.etc. Certificates(UL:E246887, TS16949, ISO14001, ISO9001): Capability & Lead Time: Factory Tour: FAQ: Q1:Are you a manufacturer or trading company? A:XingZhiGuang is a PCB manufacturer, specialized in PCB for over ten years. Q2:What kind of PCB file you need before production A:Gerber, or files like PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350.etc. b. Dimensional Specifications c. BOM List (only for PCBA) Q3: How long will you send us quotation ? A: After all files were sent, 2 to 8 hours as per your file. Q4:What is your minimum order quantity? A:Our MOQ is 1 PCS. Q5: How to find you? A: Please click the button "send" at the end of each page, or contact our sales on Trade Manage online!

Our Lead time:

layers	1~2layers	4layers	6layers	8layers
sample	3~4 days	5 days	6 days	7 days
Volume production	7~9 days	11 days	14 days	15 days

Why us:
1 Iso 9001,14001,TS16949,UL Certified.
2 900+staff,registered capital USD1.68million.
3 Full-process workshop-lamination workshop,imersion gold workshop,AOI test
4 Mental base PCB,high frequency pcb(rogers,ITEQ,tyflon,Taconic),Buried/blind via board,1~20layers board thickness 0.2~7.0mm,copper thickness 1/3~8oz are available here.
6 All exported PCB have double-check before sending out.

Xingzhiguang Technology, established in 2002, with factory area of 25, 000 sqm, total staff about 1200 and overall investment nearly USD 50 million, is a professional PCB manufacturer with factory located in Huizhou.

Through more than 10-year experience in PCB production, Xingzhiguang Technology is supporting an annual capacity of more than 900, 000 sqm, among which 30% is 1~2 layer and 70% is multi-layer, with the maximum layer count up to 20 layers; We can process many different kinds of laminates, such as FR4, high-Tg FR4, metal-based laminate (includes aluminum-based), Isola, Rogers and so on. In addition, we have started producing PCBA (PCB assembly) and FPCB (flexible PCB) as well since the end of 2014. We have passed a lot of authorized certification, including but not limited to UL(E246887), ISO9001: 2008, ISO/TS16949 and ISO 14001: 2004, and this ensures us to be capable to provide high-quality products to meet different customers' requirements.

Our products are widely used in fields of telecommunication, power supply, security surveillance, automotive, industry control, LED lighting & etc

Finally, as our commitment to the environment protection, we have also invested about USD 600, 000 in water-recycling system construction. This is the best witness to certify that xingzhiguang technology is a responsible enterprise.
