Fr4 Material Single-Side PCB LED PCB Manufacturing

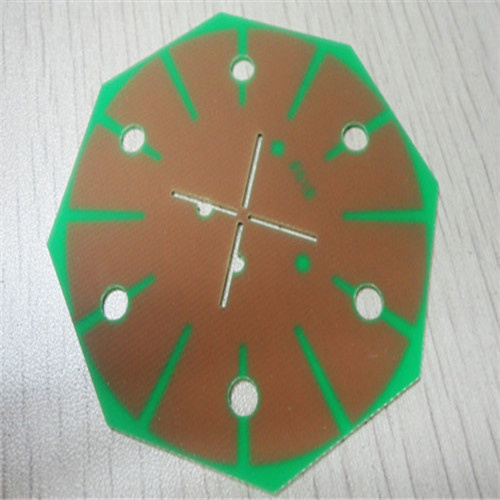

Name: Fr4 Material Single-Side PCB LED PCB Manufacturing
Brand: all-electronics-online.com
SKU: 784783495
Availability: InStock
Rating: 4.3 (137 reviews)

Price:	US $ 0.004-0.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WBPN1149AO
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Panel Size:	30mm*30mm
Min. Hole Size:	1mm
Electric Conductivity:	2k/W
Solder Mask:	White
Silkscreen:	Black
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Dielectric:	FR-4
Material:	Aluminum

Product Description

Specification:

Material:Aluminum base
value:tg135
board thickness:1.6mm
copper thickness:1oz
Surface treatment:HASL lead free
Application:led light

Our main process capability:

Items	Standard	Advanced
Layer Count	1-20	1-24
Base Material	CEM1,CEM3,FR4,IMS(Aluminum)
basic supplier	Kingboard,Shengyi,Nanya,ITEQ,Rogers,Totking, Ventec & etc
Board Thickness	0.2-5.0mm	0.2-7.0mm
Max. Panel Size	520X660mm	680X1200mm
Min. Mechnical Drill	0.2mm	0.15mm
Min. Line width&space	0.1/0.1mm	0.076/0.076mm
Max. Copper Thickness	6 oz	8oz
Max. Aspect Ratio	8:1	10:1
Solder Mask Color	Green,Black,White,Blue,Red,Matt Green, Matt Black
Silkscreen Color	White,Black,Yellow,Grey,Orange
Surface Treatment	HASL(Lead Free),OSP,ENIG, ENEPIG,Immersion Silver,Immersion Tin, Hard Gold Plating,Tin Plating, Silver Plating

Our Lead time:

layers	1~2layers	4layers	6layers	8layers
sample	3~4 days	5 days	6 days	7 days
Volume production	7~9 days	11 days	14 days	15 days

We offer:
    PTH 1~20layer PCB,
    Aluminum PCB,
    buried/blind via PCB,
    high frequency PCB,
    Heavy copper PCB-max 8oz

Why us:
     UL (E246887), ISO9001/14001,ISO/TS16949certified.
     Staff of 1000+.
     13+years experience,annual turnover USD 80Million.
     Full-process workshop.
     All exported PCB have double-check before sending out.
     One-stop EMS service,pcb assembly and SMT are available.

Xingzhiguang Technology, established in 2002, with factory area of 25, 000 sqm, total staff about 1200 and overall investment nearly USD 50 million, is a professional PCB manufacturer with factory located in Huizhou.

Through more than 10-year experience in PCB production, Xingzhiguang Technology is supporting an annual capacity of more than 900, 000 sqm, among which 30% is 1~2 layer and 70% is multi-layer, with the maximum layer count up to 20 layers; We can process many different kinds of laminates, such as FR4, high-Tg FR4, metal-based laminate (includes aluminum-based), Isola, Rogers and so on. In addition, we have started producing PCBA (PCB assembly) and FPCB (flexible PCB) as well since the end of 2014. We have passed a lot of authorized certification, including but not limited to UL(E246887), ISO9001: 2008, ISO/TS16949 and ISO 14001: 2004, and this ensures us to be capable to provide high-quality products to meet different customers' requirements.

Our products are widely used in fields of telecommunication, power supply, security surveillance, automotive, industry control, LED lighting & etc

Finally, as our commitment to the environment protection, we have also invested about USD 600, 000 in water-recycling system construction. This is the best witness to certify that xingzhiguang technology is a responsible enterprise.
