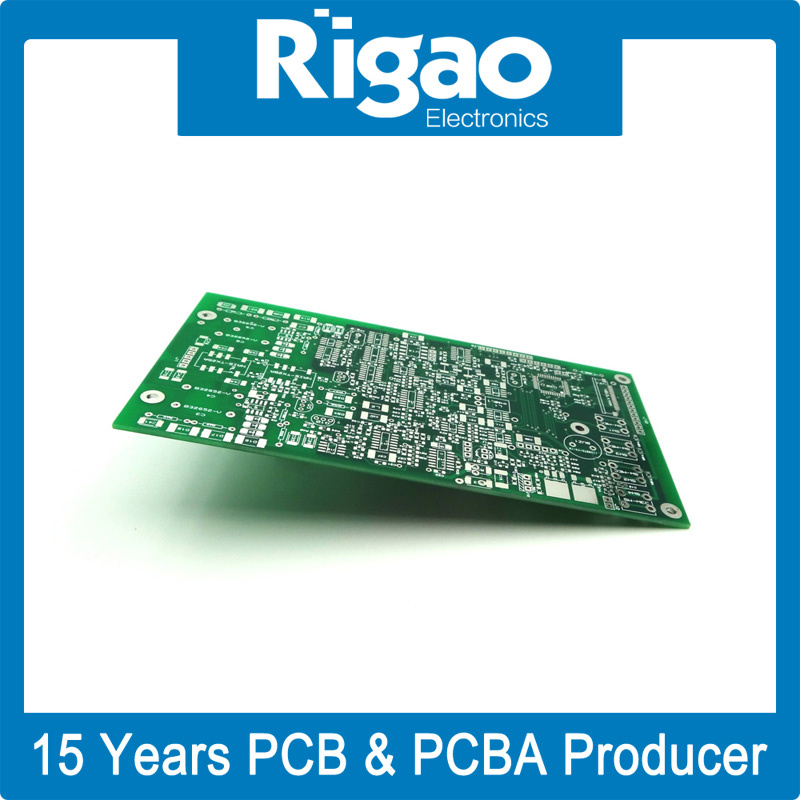

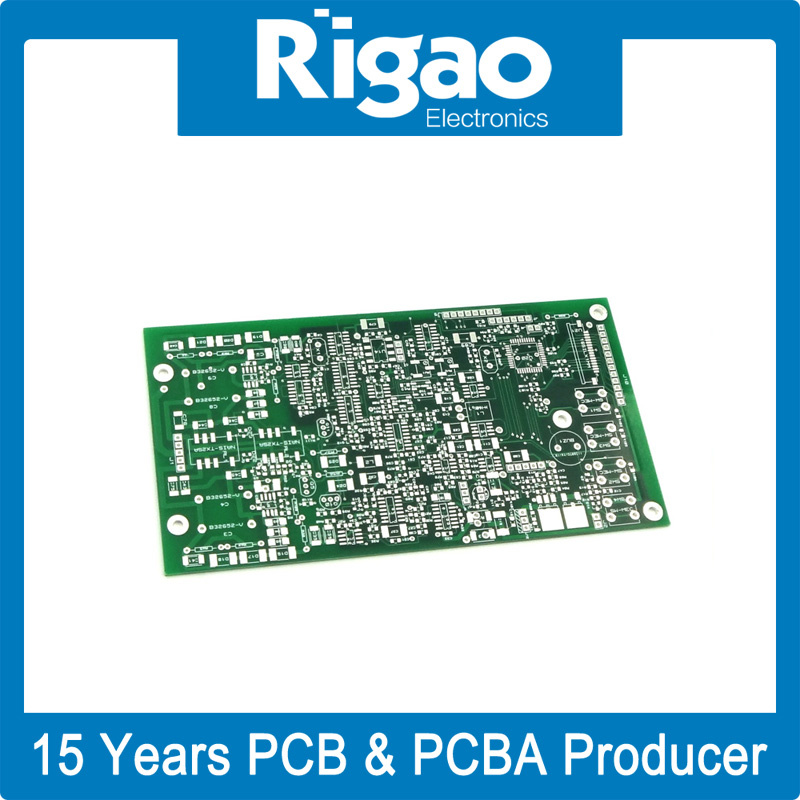

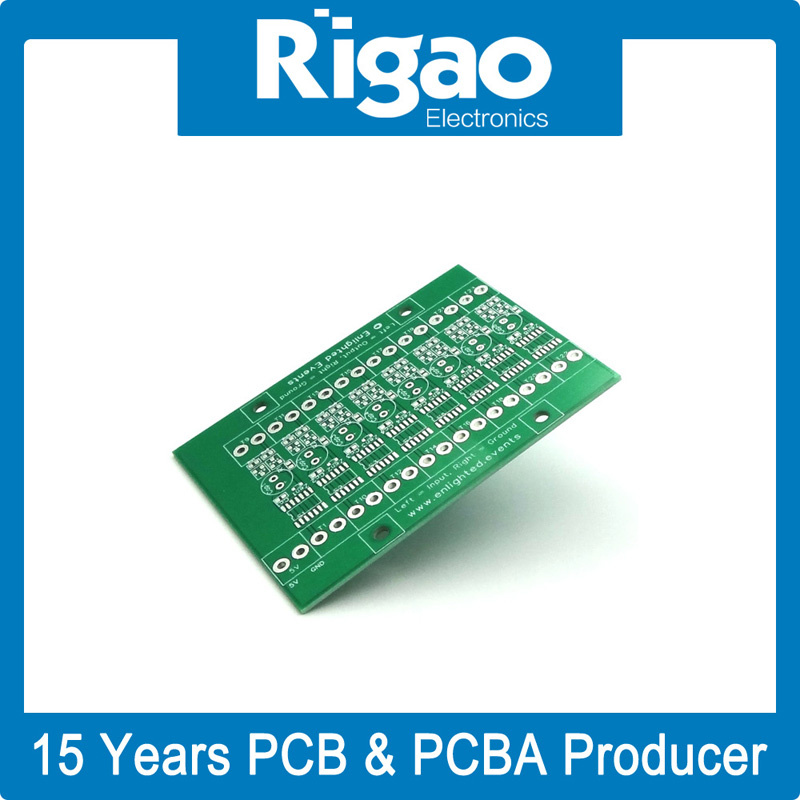

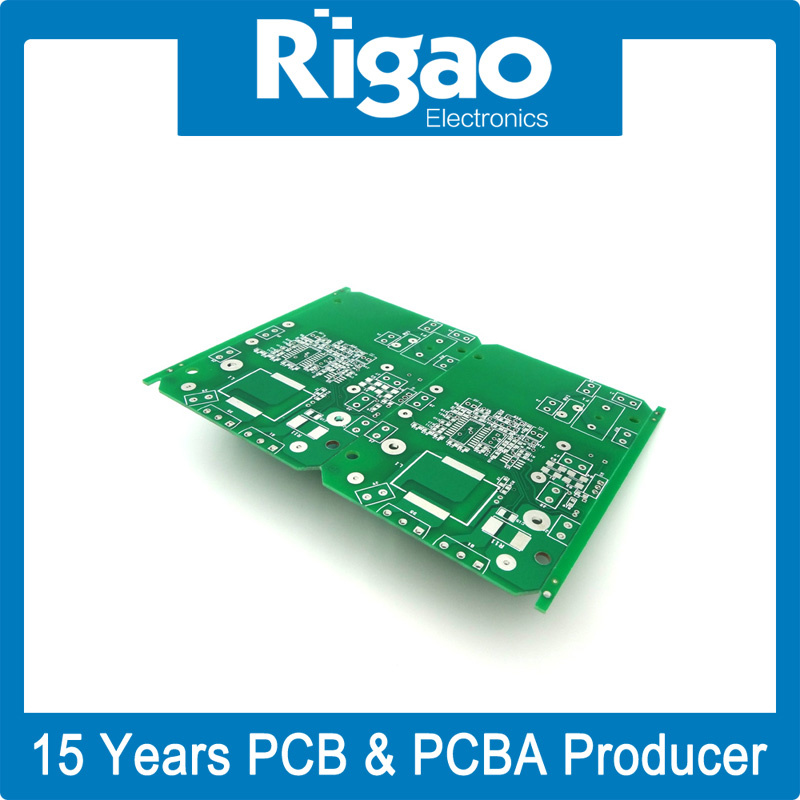

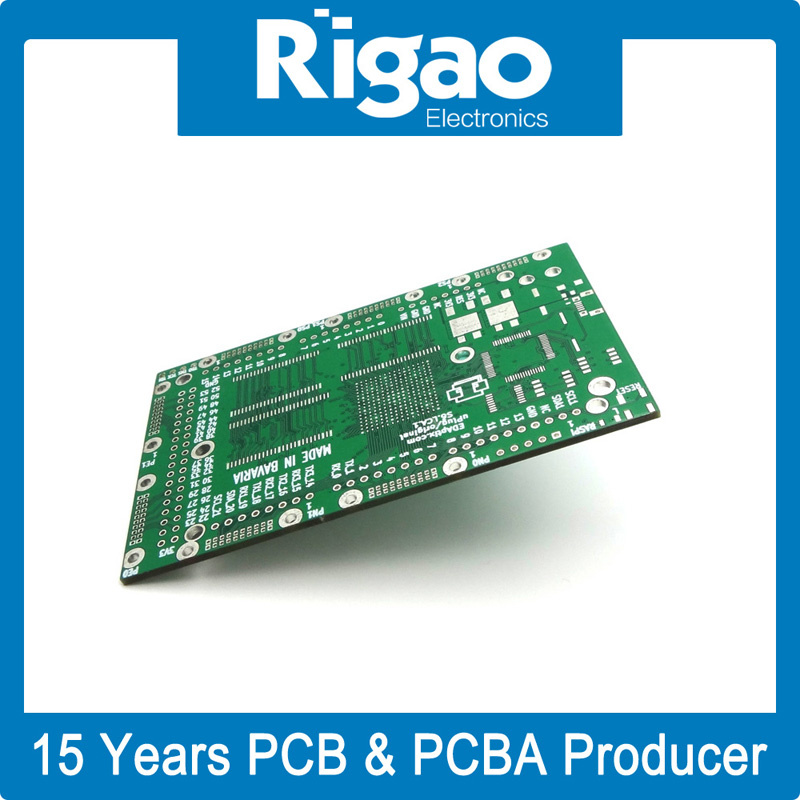

Fr4 PCB 1-8 Layers One Stop Servicing Multiple Layer PCB for Air Conditioner
| Price: |
US $ 0.1-2/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
PCB Circuit Board 014 |
| Customized: |
Customized |
| Back Repair: |
of Course |
| Certificate: |
RoHS. ISO9001 |
| Engineering Service: |
of Course |
| Certification: |
RoHS, CCC, ISO |
| Assembly: |
SMT, DIP, COB, BGA |
| Color: |
Green or Your Request |
| Layers: |
Multilayer |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Brand: |
Rigao |
Product Description
Fr4 PCB 1-8 Layers One Stop Servicing Multiple Layer PCB for Air ConditionerSpecification: | Layer | 4 |
| Material | FR4 |
| Board Thickness | 1.6mm |
| Copper Thickness | 1oz |
| Solder Mask | Green |
| Silkscreen | White |
| Surface Finish | HASL |
| Min Hole Size | 0.3mm |
Technonical:Plate processing:| Drill File | Min Drill bet size: | 0.25mm |
| Hole diameter Tol.(+/-): | PTH:+/-3mil NPTH:+/-2mil |
| Hole location Tol.(+/-) | 1st Drilling: +/-2mil
2nd Drilling: +/-3mil |
| Min.Diameter of Groove Cutter: | 0.6mm |
| processable Min.Diameter of Groove Cutter: | 0.5mm*1.5mm |
| Image Transfer | Min.Line Width(Tin Board) | 0.1mm |
| Min.Line Spacing(Tin Board) | 0.1mm |
| Min.Ring Width of pad | Inner layer:0.3mm
Outer layer:0.25mm |
| Min.Ring width of Isolation | 0.2mm |
| Min Etching Line of width | 0.175mm |
| Min Etching High | 1.0mm |
| Alignment | +/-0.1mm |
| Plating & Thickness | Copper Plating | Pore Copper: 18um(min)
Average: 20um |
| Immersion Gold | Nickel Thickness: 3-5um
Gold Plating Thickness:0.025-0.125um |
| Gold plating Finger | Nickel Thicness: 3-5um
Gold Plating Thickness:0.025-0.125um |
| Immersion Tin | Tin Thickness:0.8-1.2um |
| OSP | Film Thickness:0.2-0.5um |
| HASL | Surface Thickness:0.75um(min) |
Exterior Processing:| Laminate | Base Material | FR4/CEM-3/CEM-1/AL |
| Layer No | 1-8Layer |
| Board Thickness | 0.2-3.2mm |
| Copper Thickness | 0.5oz-3oz |
| Processable Size | 1200mm*600mm(1layer)
440mm*620mm(2-18layer) |
| Routing | Outline Torlance | +/-0.1mm |
| Copper Torlance | +/-0.25mm |
| Punching | Outline Torlance | +/-0.1mm |
| Copper Torlance | +/-0.3mm |
| V-cut | V-cut Angel | 20°, 30° |
V-cut Alignment degree in
upper and lower blades | +/-0.1mm |
| V-cut Min Distance | 0.4mm |
| V-cut Board thickness | >=0.2mm |
| V-cut Residual thickness | +/-0.1mm |
