Fr4 PCB Board SMT Stencil Longest Selection of SMT Stencils

Name: Fr4 PCB Board SMT Stencil Longest Selection of SMT Stencils
Brand: all-electronics-online.com
SKU: 731599092
Availability: InStock
Rating: 5 (136 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FD-0223
Type:	Combining Rigid Circuit Board
Flame Retardant Properties:	V0
Dielectric:	FR-4
Material:	Aluminum

Product Description

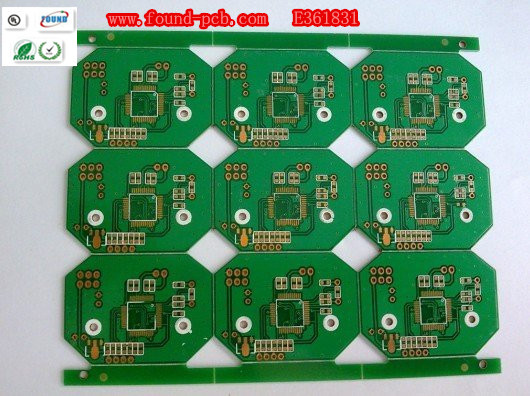

Material:FR-4
thickness:1.0mm
layer:6L
copper:1/1/1/1/1/1 oz
solder mask:green
silkscreen:white
finished surface:immersion gold
pth min hole:0.2mm
min trace/gap:4/4mil
blind hole:1-2layer,5-6layer,hole size:4mil
buried hole:2-5layer,hole size:0.2mm
pth hole:1-6layer

Product capability

Layers	Maximum Layer Count	1~32	tolerance
Size	Maximum shipping Panel Size	600mmx550mm	+/-0.15mm
Board Thickness	Minimum Board Thickness	0.4mm (4L)0.6mm (6L)	+/-0.1mm
	Maximum Board Thickness	3.6mm	+/-10%
Copper Thickness		0.5~5 oz
Via Holes	Minimum Via	0.2mm	PTH +/-0.075mm
	Buried Vias	Yes	NPTH +/-0.05mm
	Blind Vias	Yes
Ratio	Maximum Aspect Ratio	10:01
Trace	Minimum Line Width (Internal)	0.075mm	The tolerance followed by IPC-6012
	Minimum Line Spacing (Internal)	0.075mm
	Minimum Line Width (External)	0.075mm
	Minimum Line Spacing (External)	0.075mm
Surface Finish	Selective Soft Gold (MCM)	0.025~0.1 um
	Selective Hard Gold (SIMM)	0.025~1.0 um
	Immersion Gold (Ni/Au)	0.025~0.1 um
	HASL	min. 2.5 um
	Lead Free HASL	min. 2.5 um
	OSP (Entek CU106A)	0.2~0.5 um
	Immersion Tin	min. 0.625 um
	Immersion Silver	min. 0.175 um
	Carbon Ink	Yes
	Other Finish	Peelable mask
Material	Composite	CEM-1
		CEM-3
	Glass Fiber	FR-4
		High Tg FR-4
	Other Materials	Aluminum, Polyimide
Solder Mask	LPI	Yes
	UV	Yes
	Thermal	Yes
Reliability	Controlled Impedance/tolerance	Yes	+/- 10%
	Ionic Contaminant	Yes	max. 1.56 ug/cm²
	Microsection	Yes
	Solderability Test	Yes
	Hi Pot Test	Yes	500~1000V
Certificate	ISO 9000	Yes
	ISO 14000	Yes
	TS 16949	Yes
	UL	Yes

Found PCB, established in 2005, Shenzhen Found Printed Circuit Board Co., Ltd. is part of Found group. Found PCB dedicated to provide one-stop service, to meet highest technology, quality and quick turn over challenges with lowest cost.

Shenzhen Found Circuit Board Co., Ltd supply all kinds of PCBs more than 10 years. Products including Rigid PCB (1-20 layers), flex PCB(1-4 layer), metal core PCB, Rigid-Flex PCB, especially in the metal core PCB, they use widly in the LED lighting.

A lot of comepays from Europe and North American buy from Found, cause we are the source, we can offer very good price, we think we can save a lot of your purchasing cost.

We also offer PCB solution. Such as Rigid-flex PCB, a lot of factories in China can not made this kind of the rigid-flex PCB. But Found is good at this...

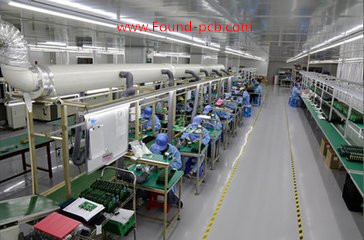

With several year's rapid development, the production capability of our factory reachs 25, 000 square meters with over 500 employees and 180, 000 sq. M production area. Found PCB has been certified by International Quality System IS09001, ISO14001, TS16949 and UL (E361831).

We welcome the every opportunity to working for you. We have the good name in the PCB market.
