Fr4 PCB Multilayer Layers PCB

Name: Fr4 PCB Multilayer Layers PCB
Brand: all-electronics-online.com
SKU: 731549292
Availability: InStock
Rating: 5 (79 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FD-002
Type:	Flexible Circuit Board
Dielectric:	FR-4
Material:	Synthetic Fiber
Flame Retardant Properties:	V0

Product Description

Production Capability

PROJECT	PROCESS CAPABILITY
CCD Exposure	2~16L
Material Type	HR-4/FR-1/CEM-1,High TG,Halogen-free
Max Panel Dimension	546mm*622mm
Outline Tolerance	±0.1mm
Board Thickness	0.40~3.20mm
Board Thickness Tolerance	±8%
Mininum Line Width	0.075mm
Mininum Track Width	0.075mm
External Cu. Thickness	35um~140um
Internal Cn. Thickness	17um~140um
Driling Bit Size CNC	0.20mm~6.0mm
Finished Hole Demension CNC	0.10mm~5.95mm
Hole Tolerance CNC	±0.075mm/±0.05mm
Hole Positon Tolerance CNC	±0.05mm
Board Thickness:Hole Demension	8:1
Solder Mask	LPL Solder
Mininum Solder Mask Bridge	0.0635mm
Impedance Control Tolerance	±10%

Our main products range form copper or aluminum base substrates to laminates with all kinds of surface treatment, from single-sided single-layer to multi-sided multi-layers. Whatever you required, we'll achieve your satisfication. We can offer you the best PCB and PCB assembly services at low-to-large volume, verified by ISO09001,including FR-4,flexible,rigid-flex,carbon ink, aluminum types. We are capable of controlled impedance, heavy copper, HDI, blind & buried vias and small chips down to 0201 and 0.25 mm BGA.

Our workshop is equipped with advanced high-quality machines for products widely used in computer science, artificial intelligence, robotics, medical, biological, automobile, communication, solar energy and consumer electronics.. We also have a full-time first-class customer service team to meet every customers' needs.

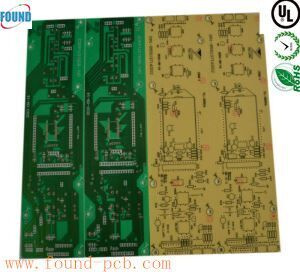

Multilayer PCB, Fr4, BGA, Tg>170, Blind Hole

Multilayer PCB, Fr4, BGA, Tg>170, Blind Hole

Found PCB, established in 2005, Shenzhen Found Printed Circuit Board Co., Ltd. is part of Found group. Found PCB dedicated to provide one-stop service, to meet highest technology, quality and quick turn over challenges with lowest cost.

Shenzhen Found Circuit Board Co., Ltd supply all kinds of PCBs more than 10 years. Products including Rigid PCB (1-20 layers), flex PCB(1-4 layer), metal core PCB, Rigid-Flex PCB, especially in the metal core PCB, they use widly in the LED lighting.

A lot of comepays from Europe and North American buy from Found, cause we are the source, we can offer very good price, we think we can save a lot of your purchasing cost.

We also offer PCB solution. Such as Rigid-flex PCB, a lot of factories in China can not made this kind of the rigid-flex PCB. But Found is good at this...

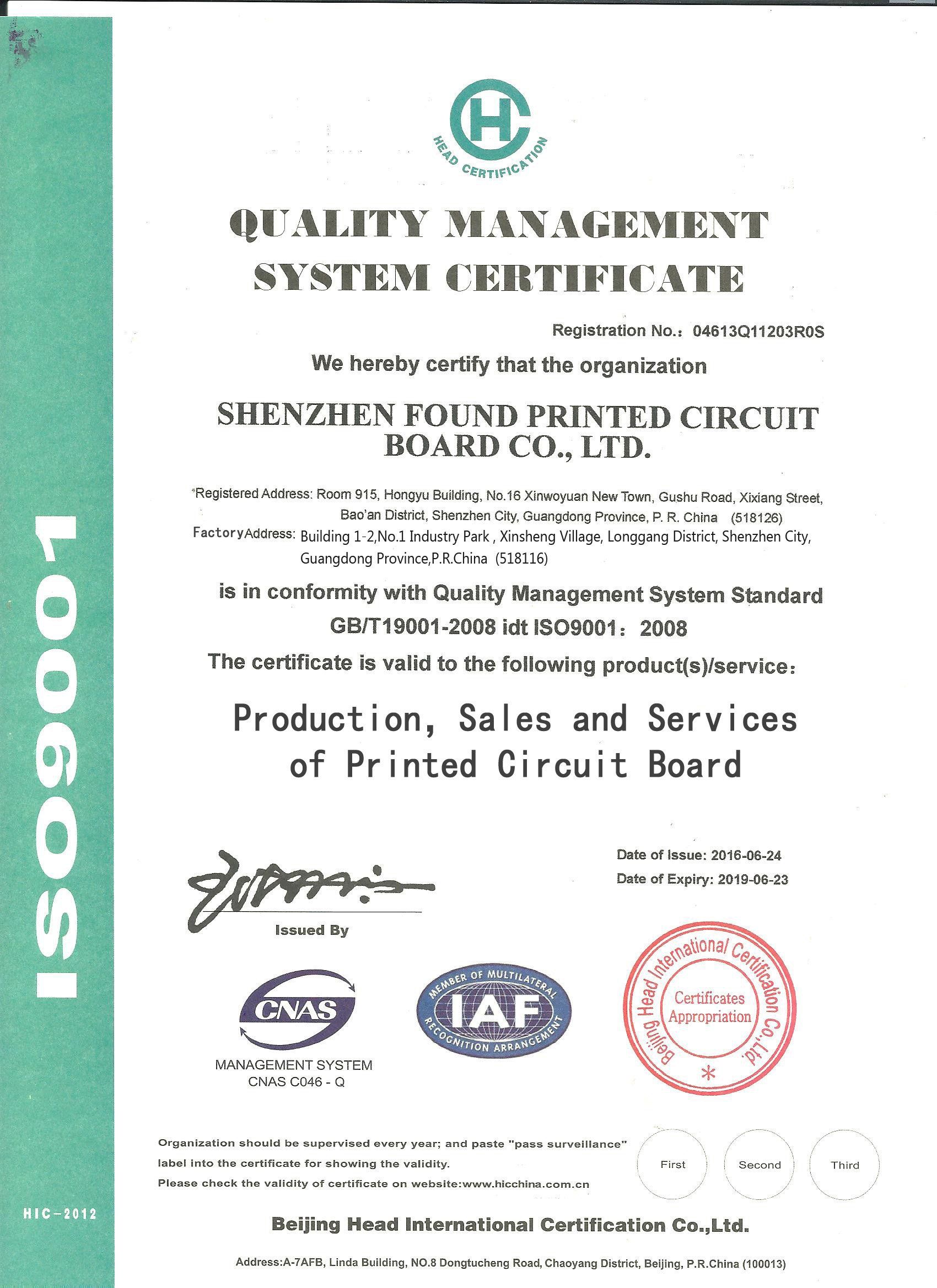

With several year's rapid development, the production capability of our factory reachs 25, 000 square meters with over 500 employees and 180, 000 sq. M production area. Found PCB has been certified by International Quality System IS09001, ISO14001, TS16949 and UL (E361831).
